Specifications
- Brand
- Gates
- Part #
- G20415-1620
- Dimensions
- 6.4" x 2.3" x 2.3"
- UPC
- 00072053300758
- Package Length
- 6.4 in
- Package Width
- 2.3 in
- Package Height
- 2.3 in
- Package Weight
- 1.41 lb
- Interchange Part Numbers
- Goodyear 28195-1620, Aeroquip 6S20CTB16, NAPA G20415-1620, Aeroquip 1E20CTB16, Aeroquip 1Z20CTB16, 04031162, Aeroquip 4S20CTB16, Goodyear DG-CF90-1620, N16-20FLC90-073, Parker 1XN78-20-16, Weatherhead 57016SK80, Weatherhead 57016S-K80

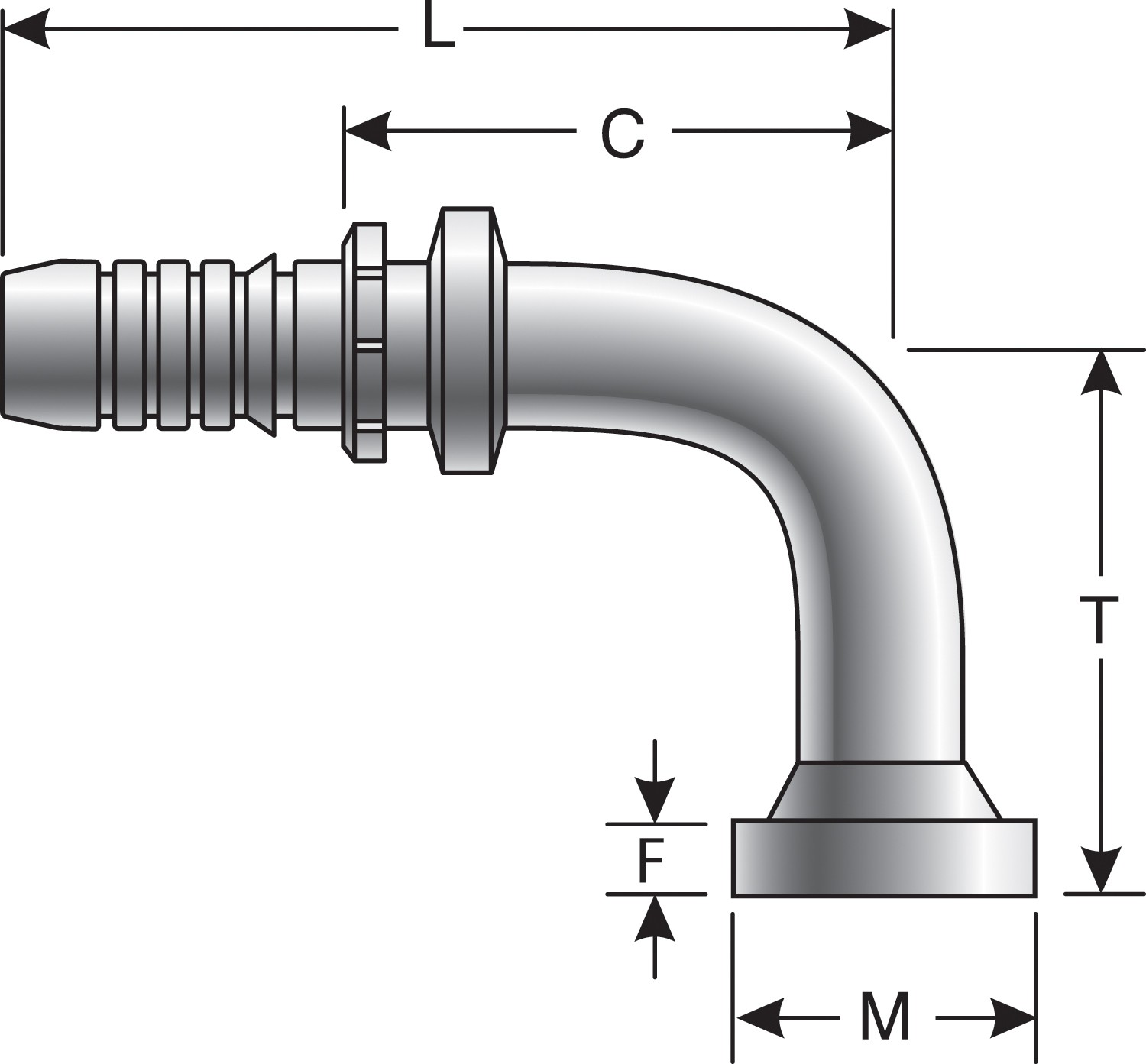

Caterpillar Style O-Ring Flange - 90 Bent Tube (GlobalSpiral)
$111.92
In Stock
Key Features
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 6.4 in
Add your vehicle to track confirmations →
About this part
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. MGS Couplings for use with MC4-20 Crimper Only.
Description
Caterpillar Style O-Ring Flange - 90 Bent Tube (GlobalSpiral)Specifications
- Brand
- Gates
- Manufacturer Part #
- G20415-1620
- Dimensions
- 6.4" x 2.3" x 2.3"
- UPC
- 00072053300758
- Package Length
- 6.4 in
- Package Width
- 2.3 in
- Package Height
- 2.3 in
- Package Weight
- 1.41 lb
- Interchange Part Numbers
- Goodyear 28195-1620, Aeroquip 6S20CTB16, NAPA G20415-1620, Aeroquip 1E20CTB16, Aeroquip 1Z20CTB16, 04031162, Aeroquip 4S20CTB16, Goodyear DG-CF90-1620, N16-20FLC90-073, Parker 1XN78-20-16, Weatherhead 57016SK80, Weatherhead 57016S-K80
