Specifications
- Brand
- Gates
- Part #
- G20400-2020
- Dimensions
- 7.0" x 2.5" x 2.5"
- UPC
- 00072053454673
- Package Length
- 7.0 in
- Package Width
- 2.5 in
- Package Height
- 2.5 in
- Package Weight
- 2.09 lb
- Interchange Part Numbers
- Caterpillar 153-0873, Kurt Hydraulics CAT-20-20-JJ, Kurt Hydraulics CAT-20-20-W, Caterpillar 3E6-868, Dayco 102800, Aeroquip 6S20CT20, Caterpillar 5P-6450, Caterpillar 6V-5736, Caterpillar 2P-6733, N20-20FLC, Aeroquip 1E20CT20, Aeroquip 1Z20CT20

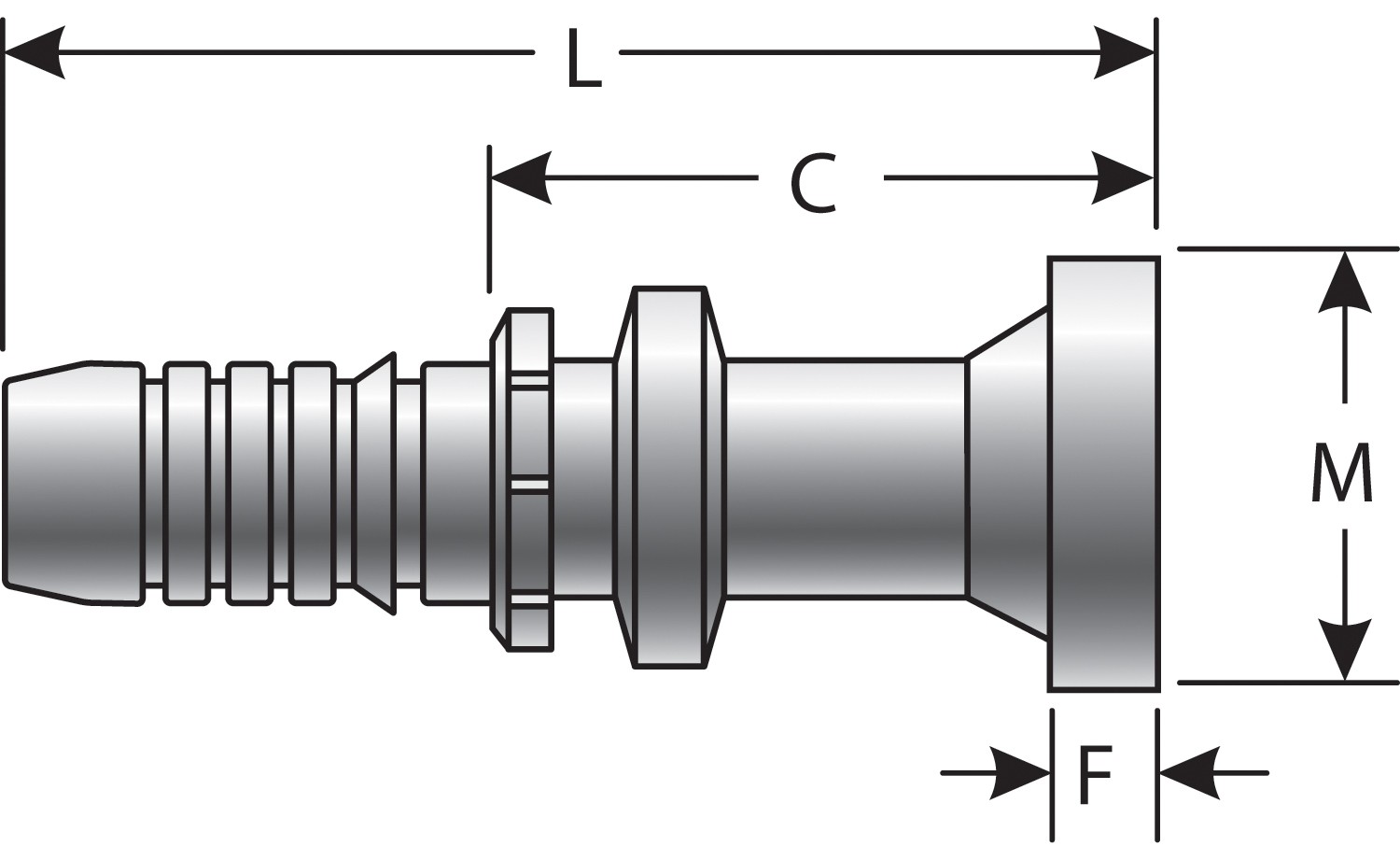

Caterpillar Style O-Ring Flange (GlobalSpiral)
$94.67
In Stock
Key Features
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 7.0 in
Add your vehicle to track confirmations →
About this part
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. MGS Couplings for use with MC4-20 Crimper Only.
Description
Caterpillar Style O-Ring Flange (GlobalSpiral)Specifications
- Brand
- Gates
- Manufacturer Part #
- G20400-2020
- Dimensions
- 7.0" x 2.5" x 2.5"
- UPC
- 00072053454673
- Package Length
- 7.0 in
- Package Width
- 2.5 in
- Package Height
- 2.5 in
- Package Weight
- 2.09 lb
- Interchange Part Numbers
- Caterpillar 153-0873, Kurt Hydraulics CAT-20-20-JJ, Kurt Hydraulics CAT-20-20-W, Caterpillar 3E6-868, Dayco 102800, Aeroquip 6S20CT20, Caterpillar 5P-6450, Caterpillar 6V-5736, Caterpillar 2P-6733, N20-20FLC, Aeroquip 1E20CT20, Aeroquip 1Z20CT20
