Specifications
- Brand
- Gates
- Part #
- G20304-2020
- Dimensions
- 6.4" x 2.3" x 2.3"
- UPC
- 00072053474756
- Package Length
- 6.4 in
- Package Width
- 2.3 in
- Package Height
- 2.3 in
- Package Weight
- 1.58 lb
- Interchange Part Numbers
- Goodyear S4-FL30-2020, Dayco 100184, Weatherhead 43020EH24, Weatherhead 43020E-H24, Goodyear 28335-2020, M83331-20-20, Dayco 100184U, NAPA G20304-2020, Dayco 102125, Parker 12671-20-20, 04030942, Weatherhead 43020UH24

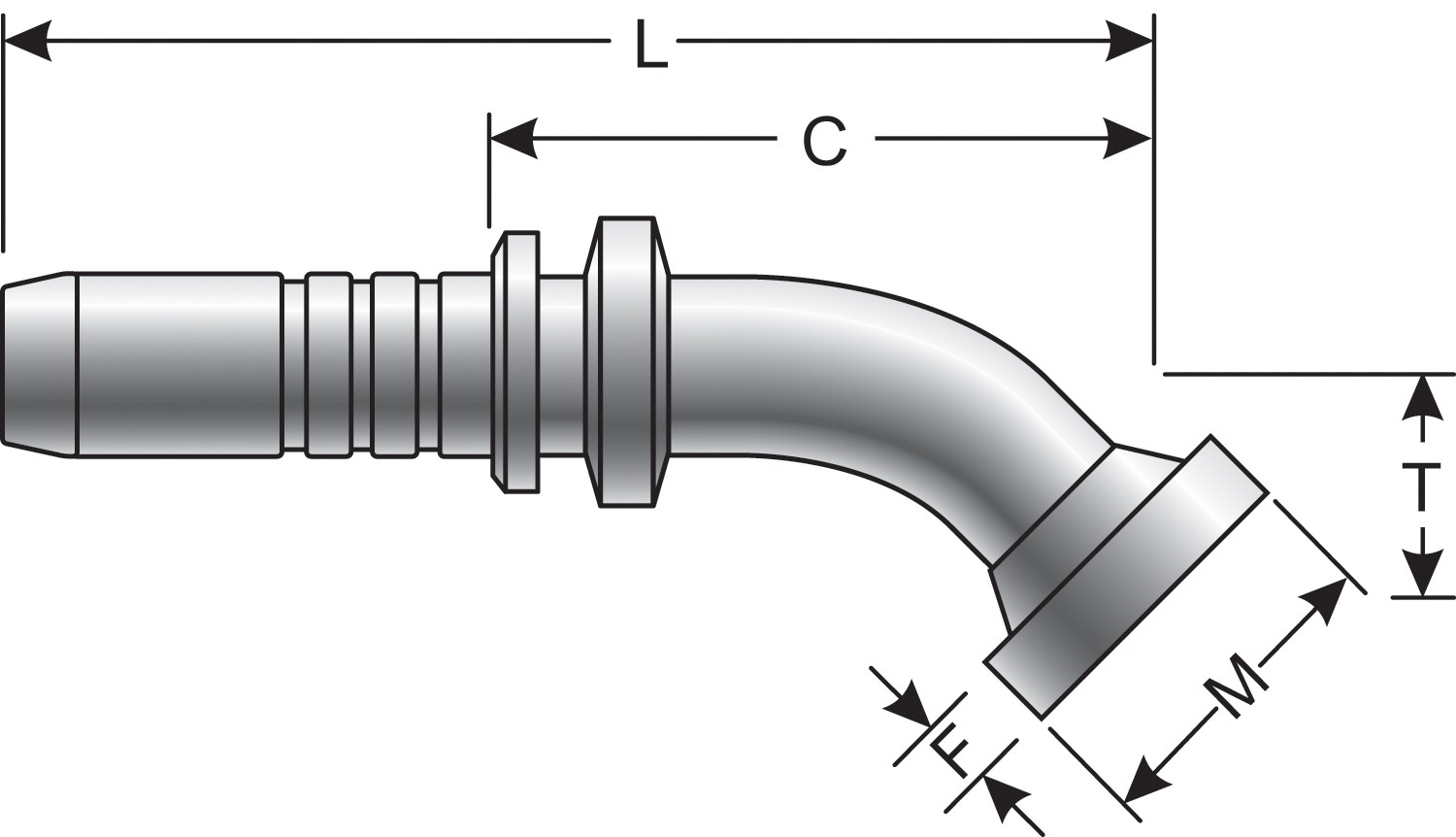

Code 61 O-Ring Flange - 30 Bent Tube (GlobalSpiral)
$99.22
Key Features
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 6.4 in
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. -8FL, -12FL, -16FL maximum working pressure is 5000 psi; -20FL maximum working pressure is 4000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Gates accessories for O-rings. MGS Couplings for use with MC4-20 Crimper Only.
Description
Code 61 O-Ring Flange - 30 Bent Tube (GlobalSpiral)Specifications
- Brand
- Gates
- Manufacturer Part #
- G20304-2020
- Dimensions
- 6.4" x 2.3" x 2.3"
- UPC
- 00072053474756
- Package Length
- 6.4 in
- Package Width
- 2.3 in
- Package Height
- 2.3 in
- Package Weight
- 1.58 lb
- Interchange Part Numbers
- Goodyear S4-FL30-2020, Dayco 100184, Weatherhead 43020EH24, Weatherhead 43020E-H24, Goodyear 28335-2020, M83331-20-20, Dayco 100184U, NAPA G20304-2020, Dayco 102125, Parker 12671-20-20, 04030942, Weatherhead 43020UH24
