Specifications
- Brand
- Gates
- Part #
- G20306-1216
- Dimensions
- 4.9" x 1.7" x 1.7"
- UPC
- 00072053437690
- Package Length
- 4.9 in
- Package Width
- 1.7 in
- Package Height
- 1.7 in
- Package Weight
- 0.68 lb
- Interchange Part Numbers
- Goodyear S4-FL45-1216, Goodyear 28340-1216, Dayco 1B16FLA12, N12-16FL45, Caterpillar 432-2086, M83341-12-16, C12443340-1216, Weatherhead 43012E-G46, Weatherhead 43012UG46, Weatherhead 43012U-G46, Dayco 100216, Aeroquip 1E16FLA12

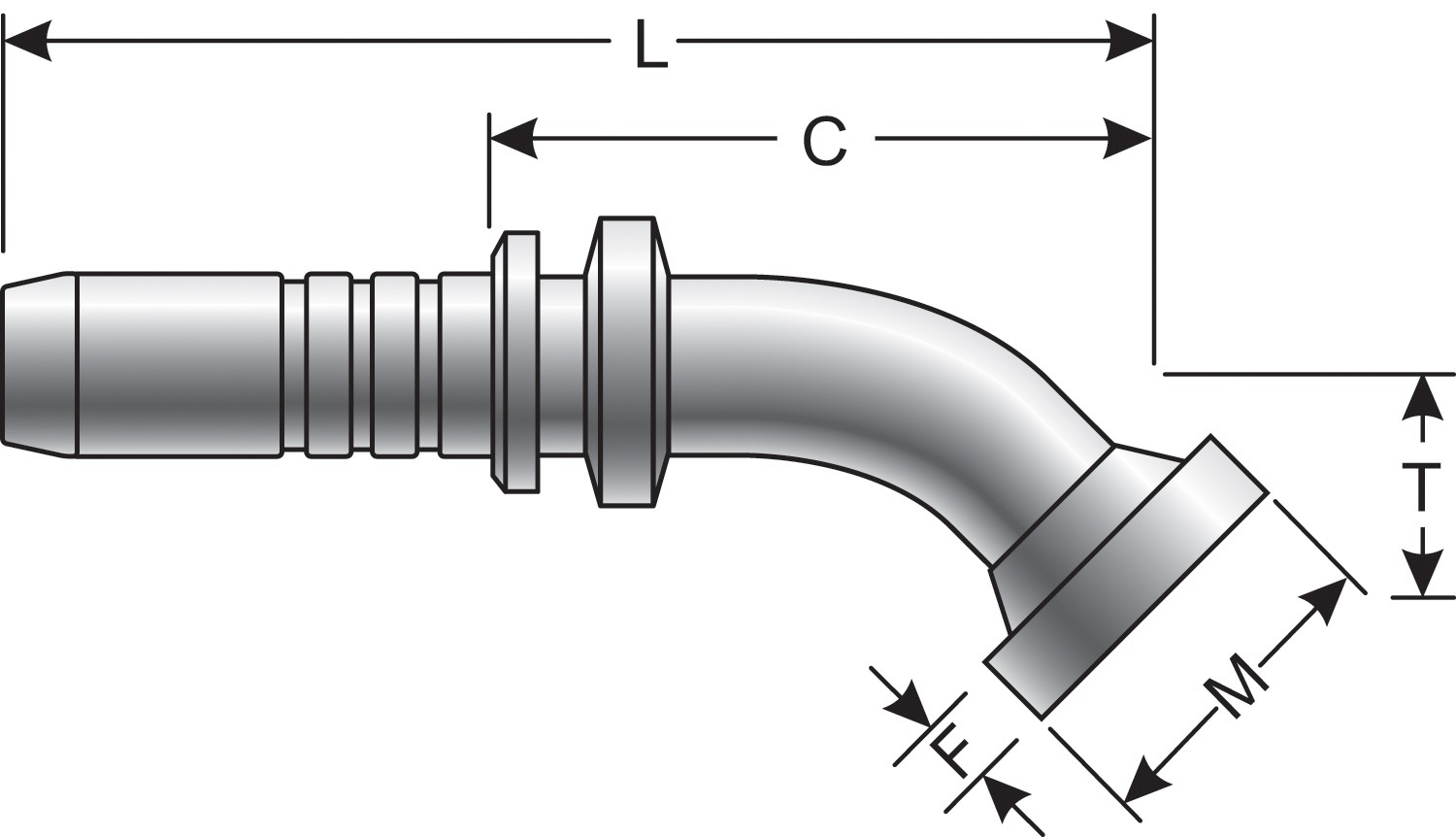

Code 61 O-Ring Flange - 45 Bent Tube (GlobalSpiral)
$62.91
Key Features
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 4.9 in
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. -8FL, -12FL, -16FL maximum working pressure is 5000 psi; -20FL maximum working pressure is 4000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Gates accessories for O-rings. MGS Couplings for use with MC4-20 Crimper Only.
Description
Code 61 O-Ring Flange - 45 Bent Tube (GlobalSpiral)Specifications
- Brand
- Gates
- Manufacturer Part #
- G20306-1216
- Dimensions
- 4.9" x 1.7" x 1.7"
- UPC
- 00072053437690
- Package Length
- 4.9 in
- Package Width
- 1.7 in
- Package Height
- 1.7 in
- Package Weight
- 0.68 lb
- Interchange Part Numbers
- Goodyear S4-FL45-1216, Goodyear 28340-1216, Dayco 1B16FLA12, N12-16FL45, Caterpillar 432-2086, M83341-12-16, C12443340-1216, Weatherhead 43012E-G46, Weatherhead 43012UG46, Weatherhead 43012U-G46, Dayco 100216, Aeroquip 1E16FLA12
