Specifications
- Brand
- Gates
- Part #
- G22306-2424
- Dimensions
- 6.4" x 2.3" x 2.3"
- UPC
- 00770075355205
- Package Length
- 6.4 in
- Package Width
- 2.3 in
- Package Height
- 2.3 in
- Package Weight
- 2.60 lb
- Interchange Part Numbers
- 04031540, Parker 11777-24-24, Weatherhead 24U-G54, Dayco 100512, Goodyear 29340-2424, Weatherhead 24Z-G54, Weatherhead 47024E-G54, Aeroquip 4S24FLA24, Parker 11743-24-24, Continental Belt SG-FL45-2424, M23341-24-24, Weatherhead 43024UG54

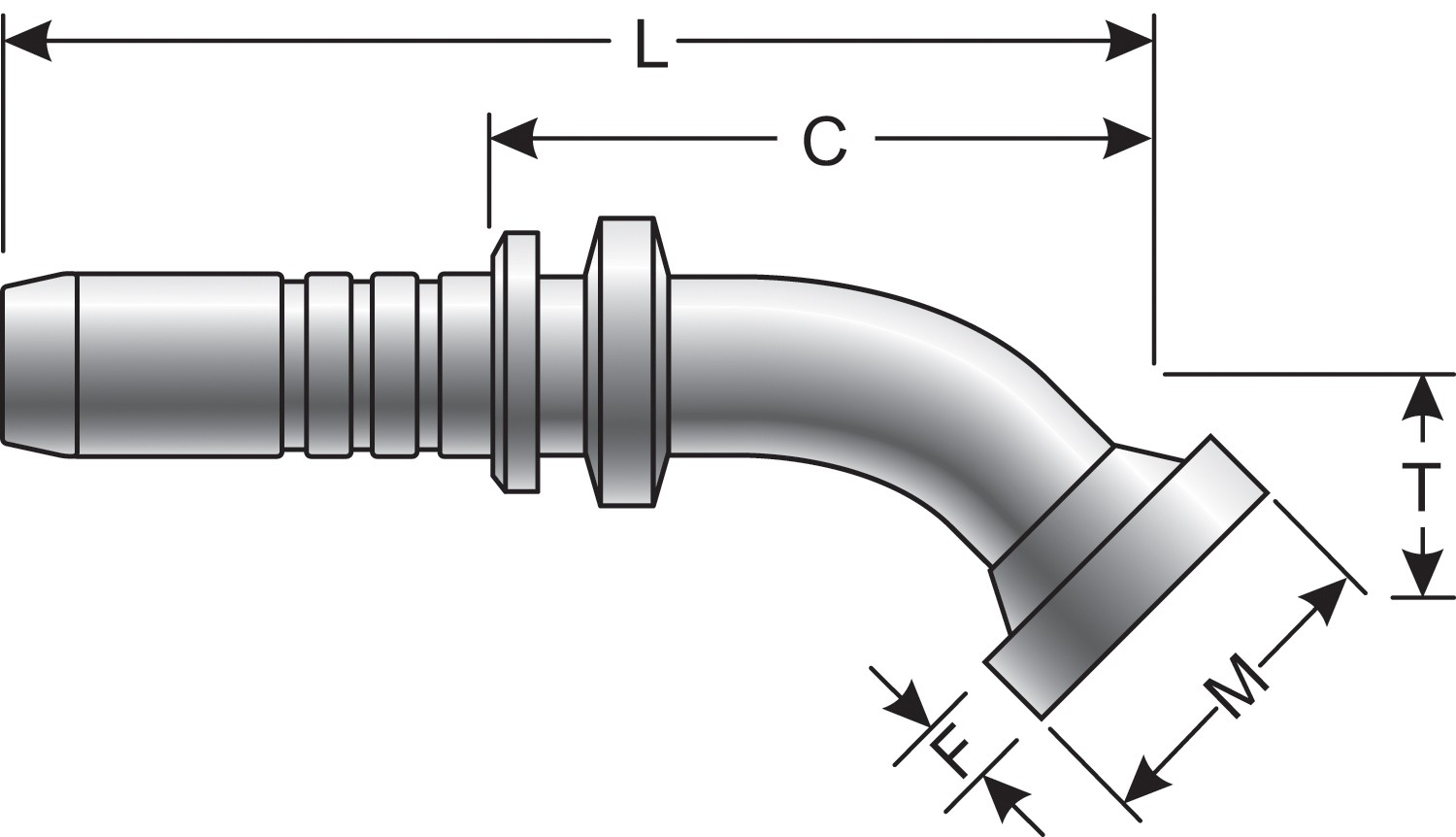

Code 61 O-Ring Flange - 45 Bent Tube (GlobalSpiral Plus)
$100.51
Key Features
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 6.4 in
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. Separate ferrules are required for 4-spiral hose and wire braid hose. -24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Description
Code 61 O-Ring Flange - 45 Bent Tube (GlobalSpiral Plus)Specifications
- Brand
- Gates
- Manufacturer Part #
- G22306-2424
- Dimensions
- 6.4" x 2.3" x 2.3"
- UPC
- 00770075355205
- Package Length
- 6.4 in
- Package Width
- 2.3 in
- Package Height
- 2.3 in
- Package Weight
- 2.60 lb
- Interchange Part Numbers
- 04031540, Parker 11777-24-24, Weatherhead 24U-G54, Dayco 100512, Goodyear 29340-2424, Weatherhead 24Z-G54, Weatherhead 47024E-G54, Aeroquip 4S24FLA24, Parker 11743-24-24, Continental Belt SG-FL45-2424, M23341-24-24, Weatherhead 43024UG54
