Specifications
- Brand
- Gates
- Part #
- G22308-2424
- Dimensions
- 10.0" x 3.5" x 2.0"
- UPC
- 00770075424598
- Package Length
- 10.0 in
- Package Width
- 3.5 in
- Package Height
- 2.0 in
- Package Weight
- 3.03 lb
- Interchange Part Numbers
- Dayco 100267, Aeroquip 4S24FLG24, Weatherhead 24ZH55, NAPA G22308-2424, Goodyear 28345-2424, Weatherhead 43024UH55, Weatherhead 43024U-H55, M83361-24-24, M23361-24-24, Weatherhead 24U-H55, 04031545

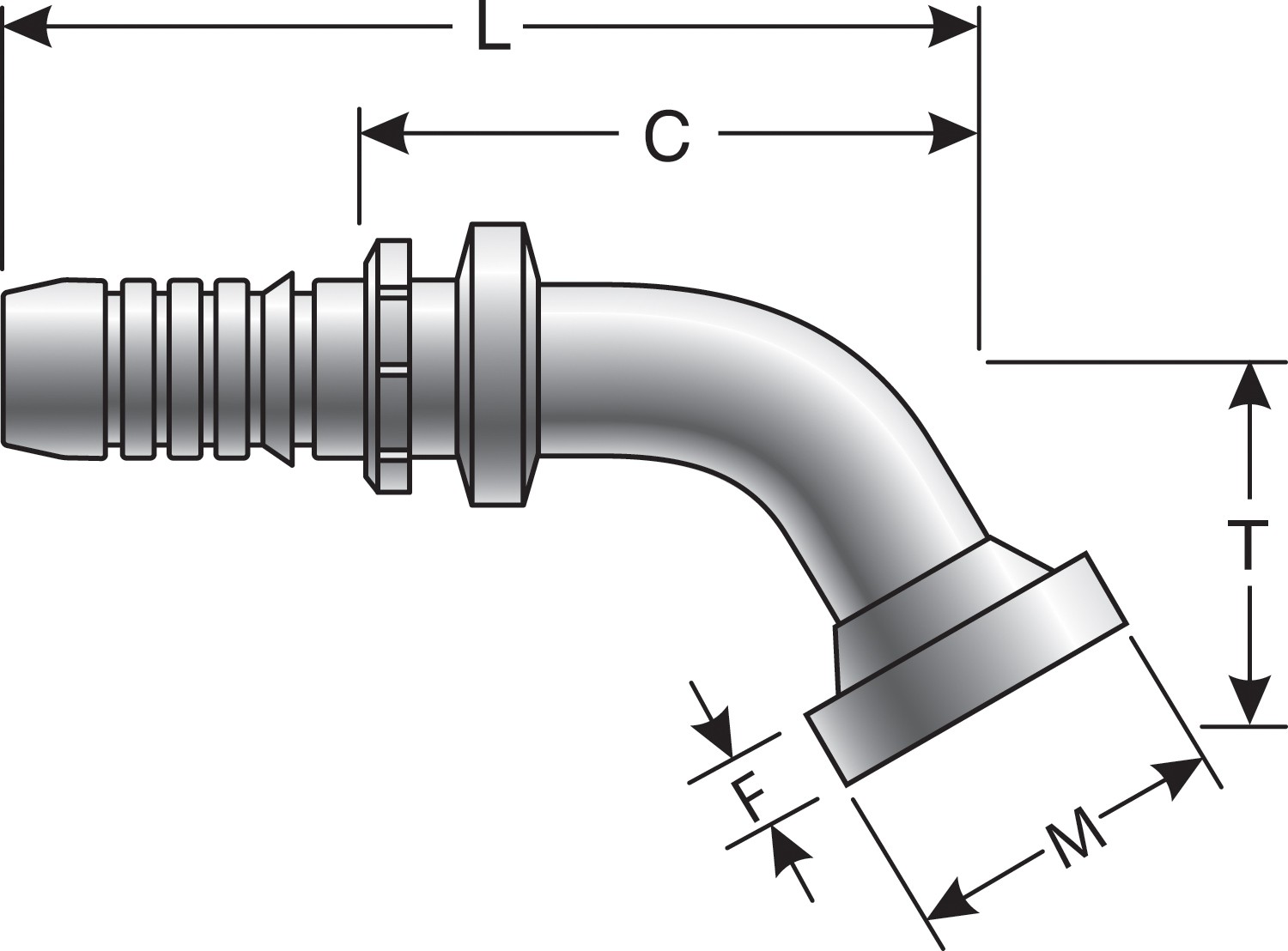

Code 61 O-Ring Flange - 60 Bent Tube (GlobalSpiral Plus)
$110.33
Key Features
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 10.0 in
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. Separate ferrules are required for 4-spiral hose and wire braid hose. -24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Description
Code 61 O-Ring Flange - 60 Bent Tube (GlobalSpiral Plus)Specifications
- Brand
- Gates
- Manufacturer Part #
- G22308-2424
- Dimensions
- 10.0" x 3.5" x 2.0"
- UPC
- 00770075424598
- Package Length
- 10.0 in
- Package Width
- 3.5 in
- Package Height
- 2.0 in
- Package Weight
- 3.03 lb
- Interchange Part Numbers
- Dayco 100267, Aeroquip 4S24FLG24, Weatherhead 24ZH55, NAPA G22308-2424, Goodyear 28345-2424, Weatherhead 43024UH55, Weatherhead 43024U-H55, M83361-24-24, M23361-24-24, Weatherhead 24U-H55, 04031545
