Specifications
- Brand
- Gates
- Part #
- G22316-3232
- Dimensions
- 10.3" x 9.0" x 2.5"
- UPC
- 00770075424680
- Package Length
- 10.3 in
- Package Width
- 9.0 in
- Package Height
- 2.5 in
- Package Weight
- 6.10 lb
- Interchange Part Numbers
- Dayco 100357, NAPA G22316-3232, 04031566, Weatherhead 43032UG92L80, Weatherhead 43032U-G92L80

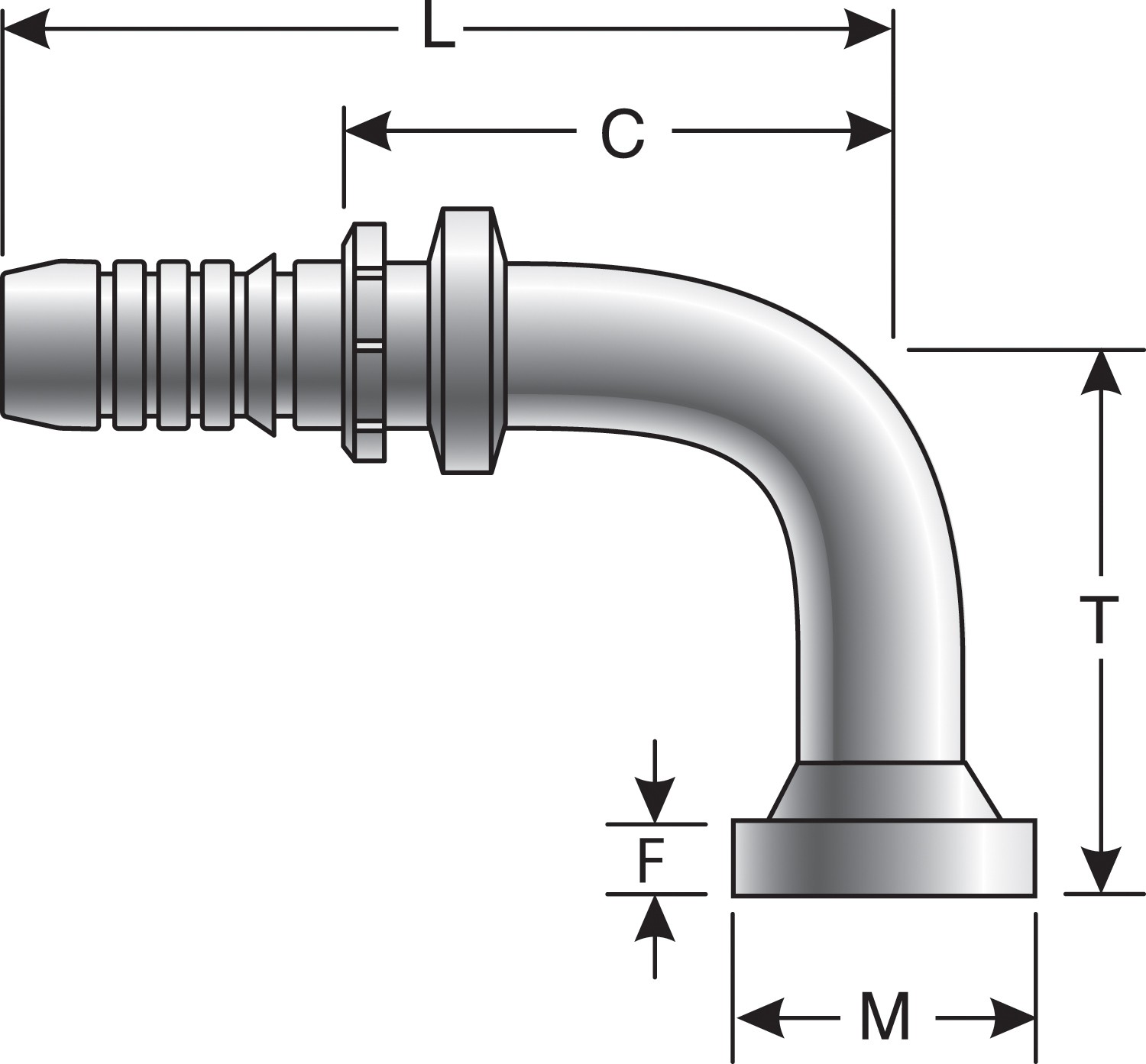

Code 61 O-Ring Flange - 90 Bent Tube (GlobalSpiral Plus)
$212.31
Key Features
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 10.3 in
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. Separate ferrules are required for 4-spiral hose and wire braid hose. -24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Accessories for O-Rings.
Description
Code 61 O-Ring Flange - 90 Bent Tube (GlobalSpiral Plus)Specifications
- Brand
- Gates
- Manufacturer Part #
- G22316-3232
- Dimensions
- 10.3" x 9.0" x 2.5"
- UPC
- 00770075424680
- Package Length
- 10.3 in
- Package Width
- 9.0 in
- Package Height
- 2.5 in
- Package Weight
- 6.10 lb
- Interchange Part Numbers
- Dayco 100357, NAPA G22316-3232, 04031566, Weatherhead 43032UG92L80, Weatherhead 43032U-G92L80
