Specifications
- Brand
- Gates
- Part #
- G25315-0812
- Dimensions
- 4.7" x 1.7" x 1.7"
- UPC
- 00072053435825
- Package Length
- 4.7 in
- Package Width
- 1.7 in
- Package Height
- 1.7 in
- Package Weight
- 0.54 lb
- Interchange Part Numbers
- Goodyear UC-FL90-0812, Parker 11943-12-08, 04032430, Weatherhead 08ZG72, Weatherhead 08Z-G72, Goodyear 13350-0812, Parker 11943-12-8, Parker 119HY-12-8, Weatherhead 08U-G72, Goodyear 14350-0812, Dayco 100327, Goodyear B2-FL90-0812

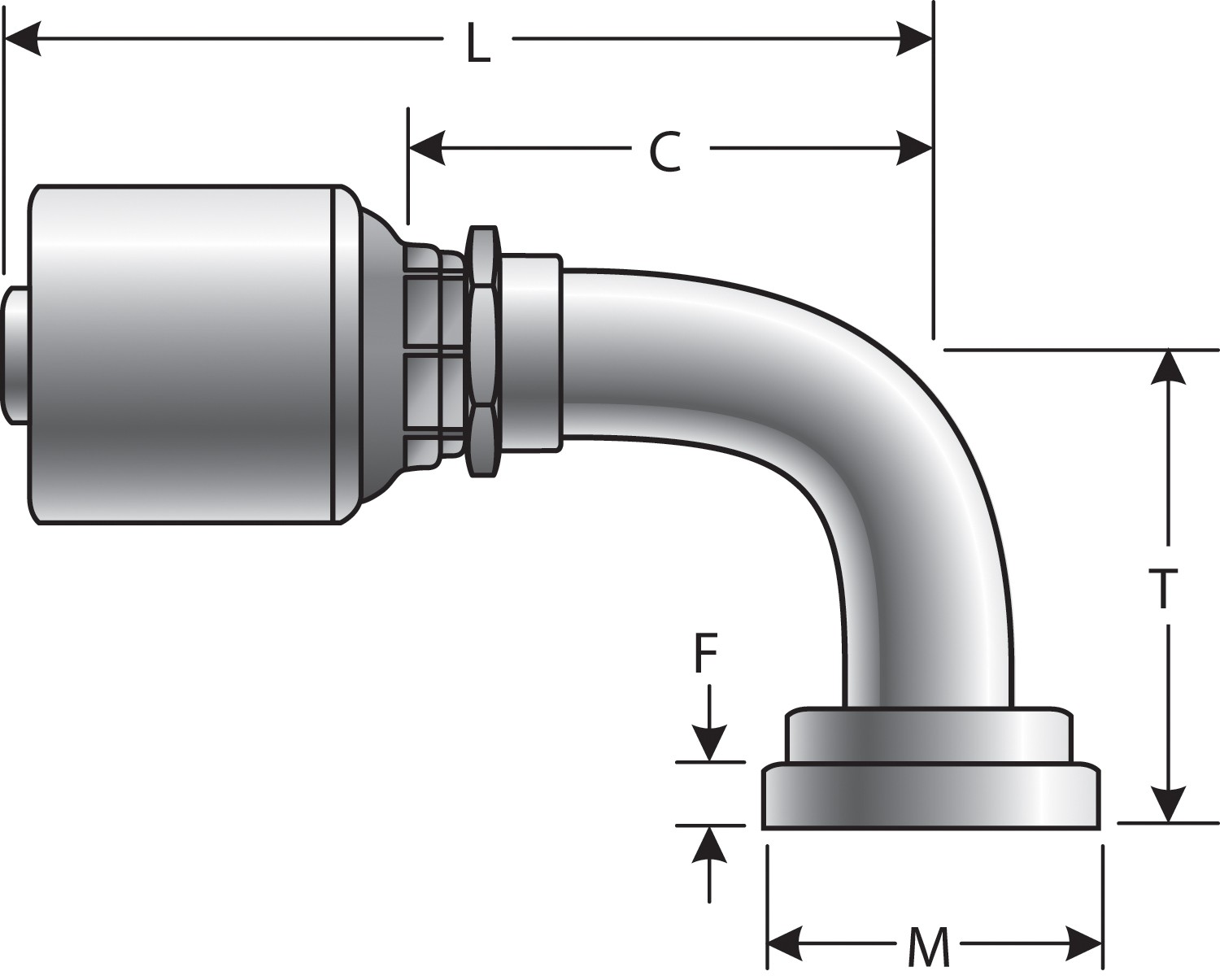

Code 61 O-Ring Flange - 90 Bent Tube (MegaCrimp)
$59.35
In Stock
Key Features
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 4.7 in
Add your vehicle to track confirmations →
About this part
Product Details
The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
Description
Code 61 O-Ring Flange - 90 Bent Tube (MegaCrimp)Specifications
- Brand
- Gates
- Manufacturer Part #
- G25315-0812
- Dimensions
- 4.7" x 1.7" x 1.7"
- UPC
- 00072053435825
- Package Length
- 4.7 in
- Package Width
- 1.7 in
- Package Height
- 1.7 in
- Package Weight
- 0.54 lb
- Interchange Part Numbers
- Goodyear UC-FL90-0812, Parker 11943-12-08, 04032430, Weatherhead 08ZG72, Weatherhead 08Z-G72, Goodyear 13350-0812, Parker 11943-12-8, Parker 119HY-12-8, Weatherhead 08U-G72, Goodyear 14350-0812, Dayco 100327, Goodyear B2-FL90-0812
