Specifications
- Brand
- Gates
- Part #
- G20300-1012
- Dimensions
- 4.4" x 1.6" x 1.6"
- UPC
- 00072053402339
- Package Length
- 4.4 in
- Package Width
- 1.6 in
- Package Height
- 1.6 in
- Package Weight
- 0.42 lb
- Interchange Part Numbers
- Dayco 100085, 04030905, Aeroquip 1B12FL10, Parker 11571-12-10, M23311-10-12, Continental Belt B2-FL-1012, NAPA G20300-1012, Goodyear 28320-1012, Weatherhead 43010UG12, Goodyear S4-FL-1012, Goodyear 29320-1012

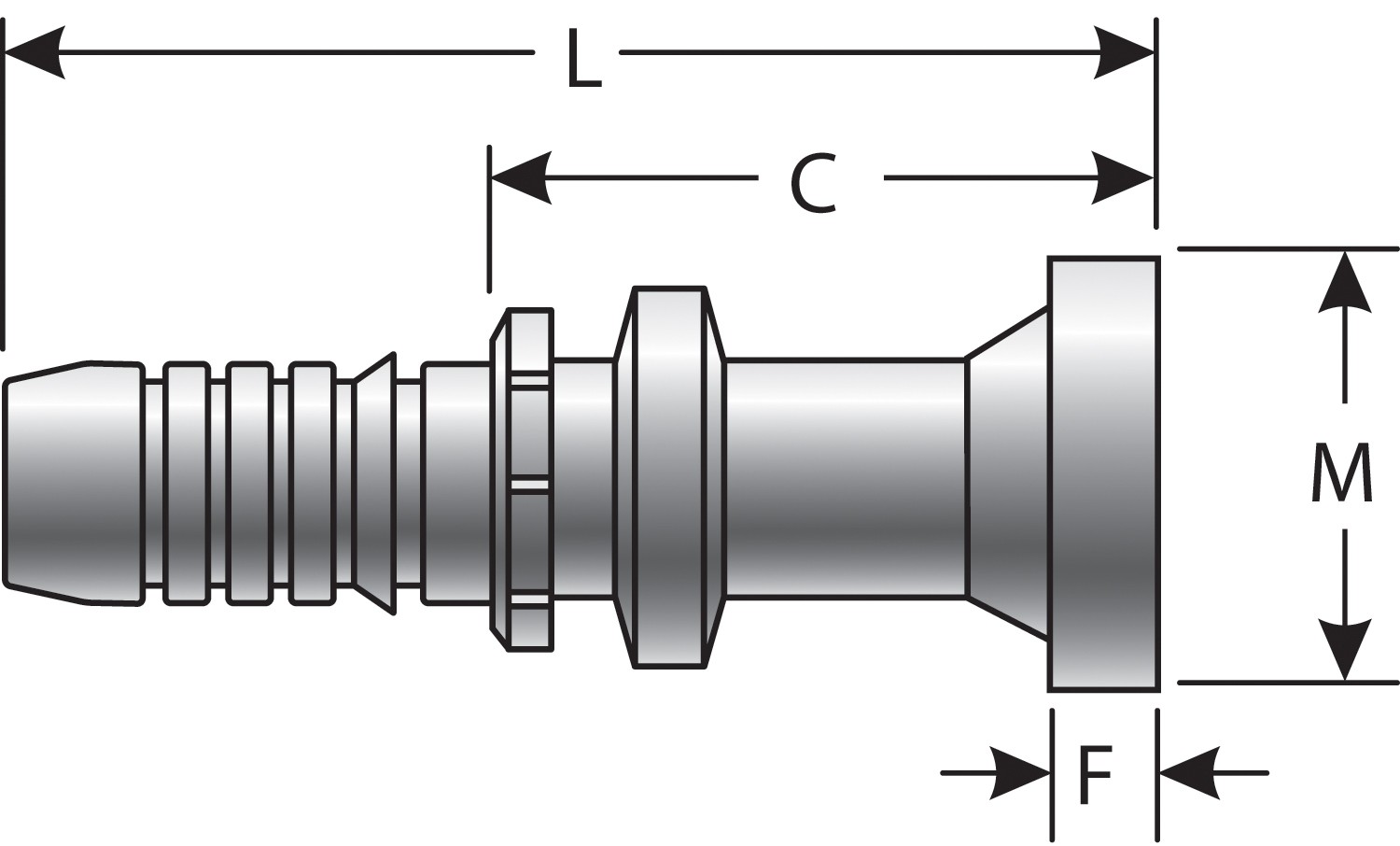

Code 61 O-Ring Flange (GlobalSpiral)
$44.88
Key Features
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 4.4 in
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. -8FL, -12FL, -16FL maximum working pressure is 5000 psi; -20FL maximum working pressure is 4000 psi. See Gates accessories for O-rings. MGS Couplings for use with MC4-20 Crimper Only.
Description
Code 61 O-Ring Flange (GlobalSpiral)Specifications
- Brand
- Gates
- Manufacturer Part #
- G20300-1012
- Dimensions
- 4.4" x 1.6" x 1.6"
- UPC
- 00072053402339
- Package Length
- 4.4 in
- Package Width
- 1.6 in
- Package Height
- 1.6 in
- Package Weight
- 0.42 lb
- Interchange Part Numbers
- Dayco 100085, 04030905, Aeroquip 1B12FL10, Parker 11571-12-10, M23311-10-12, Continental Belt B2-FL-1012, NAPA G20300-1012, Goodyear 28320-1012, Weatherhead 43010UG12, Goodyear S4-FL-1012, Goodyear 29320-1012
