Specifications
- Brand
- Gates
- Part #
- G20300-1216
- Dimensions
- 5.1" x 1.8" x 1.8"
- UPC
- 00072053399448
- Package Length
- 5.1 in
- Package Width
- 1.8 in
- Package Height
- 1.8 in
- Package Weight
- 0.53 lb
- Interchange Part Numbers
- Kurt Hydraulics C61-12-16-W, Dayco 100091U, Aeroquip 4S16FL12, Caterpillar 432-2083, Goodyear S4-FL-1216, Caterpillar 6V-4652, Parker 11571-16-12, Caterpillar 9X-7665, Dayco 1B16FL12, 612-1W-G16, M83311-12-16, N12-16FL

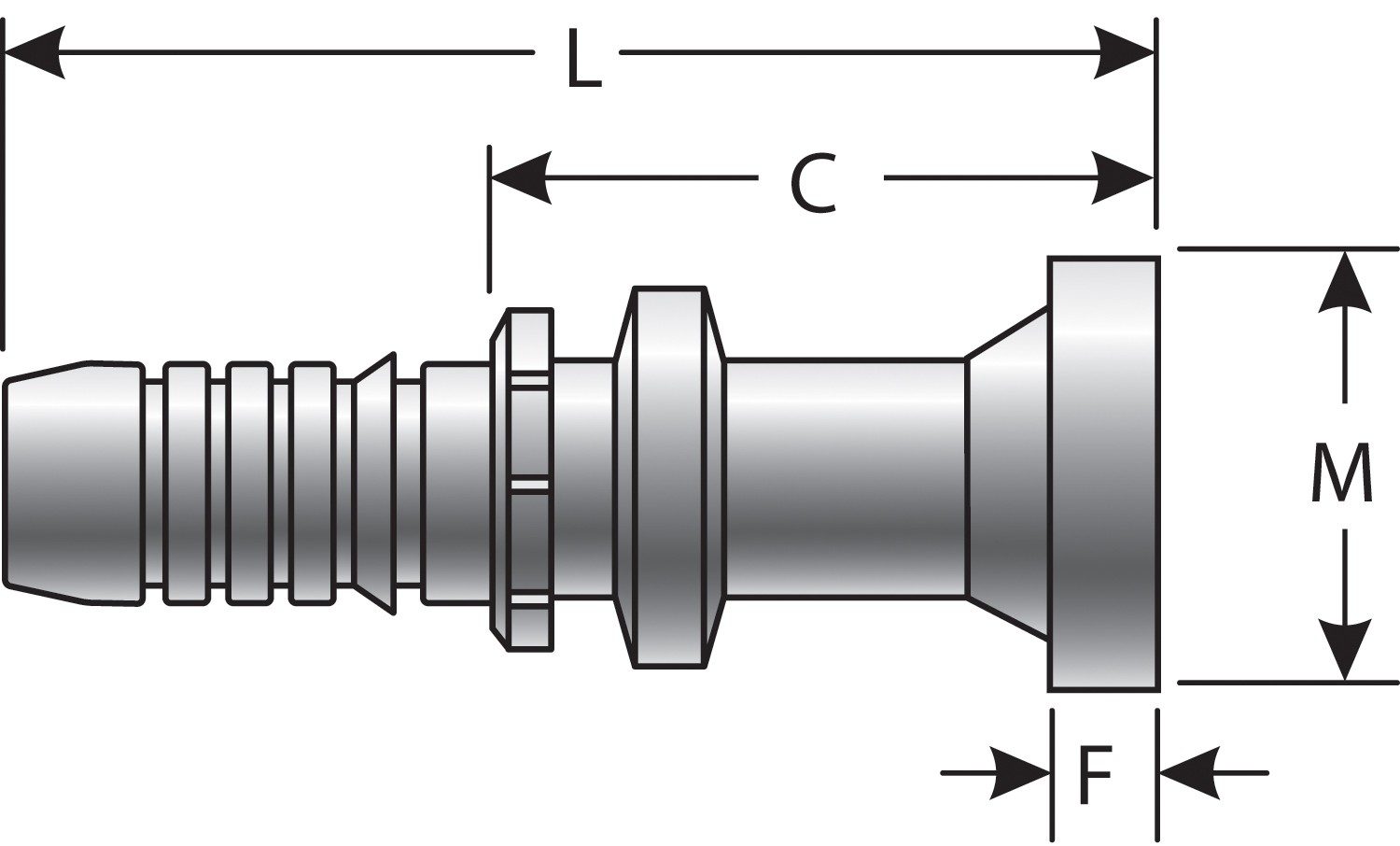

Code 61 O-Ring Flange (GlobalSpiral)
$48.83
Key Features
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 5.1 in
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. -8FL, -12FL, -16FL maximum working pressure is 5000 psi; -20FL maximum working pressure is 4000 psi. See Gates accessories for O-rings. MGS Couplings for use with MC4-20 Crimper Only.
Description
Code 61 O-Ring Flange (GlobalSpiral)Specifications
- Brand
- Gates
- Manufacturer Part #
- G20300-1216
- Dimensions
- 5.1" x 1.8" x 1.8"
- UPC
- 00072053399448
- Package Length
- 5.1 in
- Package Width
- 1.8 in
- Package Height
- 1.8 in
- Package Weight
- 0.53 lb
- Interchange Part Numbers
- Kurt Hydraulics C61-12-16-W, Dayco 100091U, Aeroquip 4S16FL12, Caterpillar 432-2083, Goodyear S4-FL-1216, Caterpillar 6V-4652, Parker 11571-16-12, Caterpillar 9X-7665, Dayco 1B16FL12, 612-1W-G16, M83311-12-16, N12-16FL
