Specifications
- Brand
- Gates
- Part #
- G25300-2020
- Dimensions
- 7.0" x 2.5" x 2.5"
- UPC
- 00072053172249
- Package Length
- 7.0 in
- Package Width
- 2.5 in
- Package Height
- 2.5 in
- Package Weight
- 1.54 lb
- Interchange Part Numbers
- Goodyear UC-FL-2020, Dayco HY20-20PA, Eaton 1A20FL20, 1234-2020, Weatherhead 20UG20, Weatherhead 20U-G20, Weatherhead 20ZG20, Weatherhead 20Z-G20, 04032397, Parker 11543-20-20, Continental Belt B2-FL-2020, NAPA G25300-2020

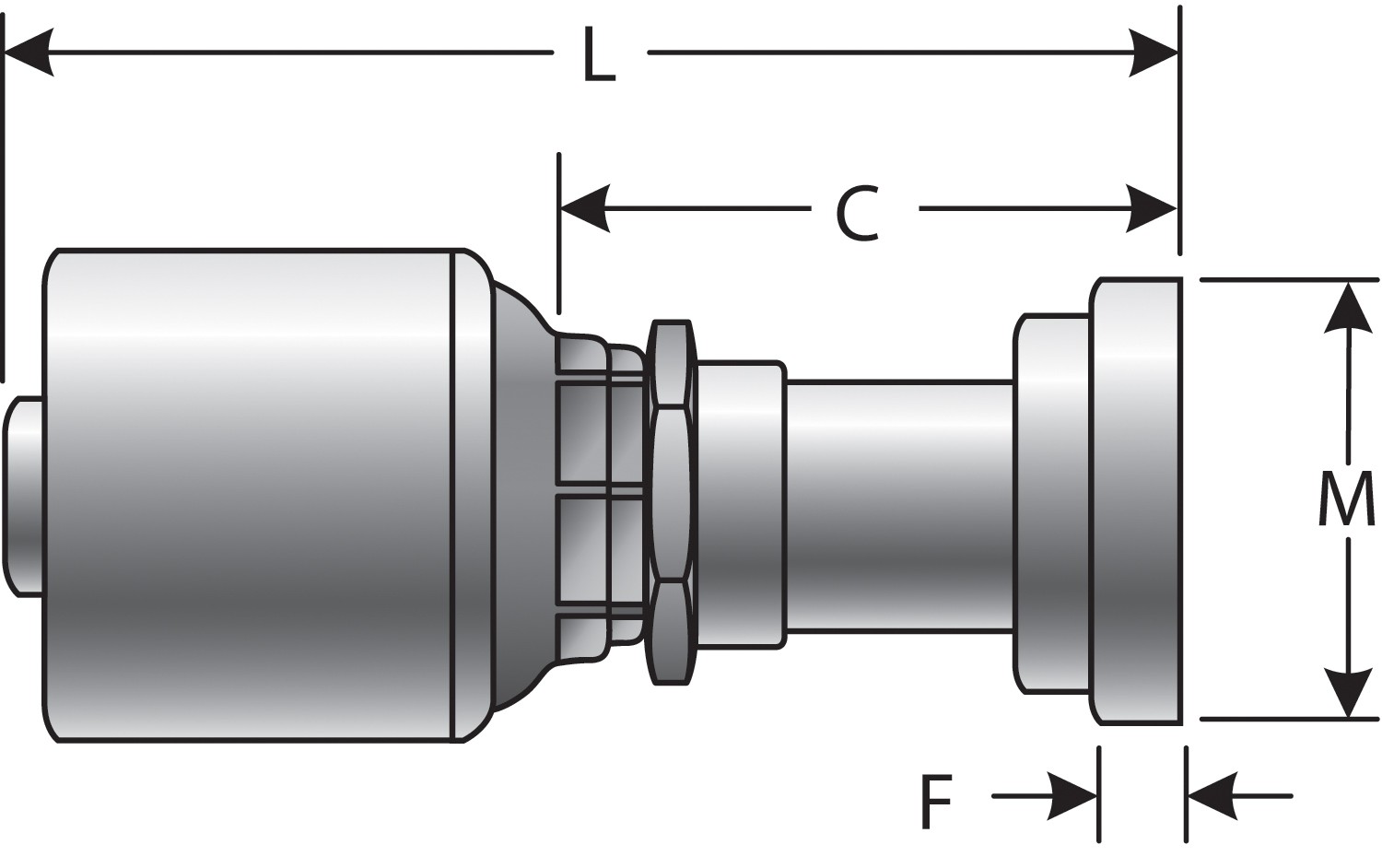

Code 61 O-Ring Flange (MegaCrimp)
$89.13
In Stock
Key Features
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 7.0 in
Add your vehicle to track confirmations →
About this part
Product Details
The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
Description
Code 61 O-Ring Flange (MegaCrimp)Specifications
- Brand
- Gates
- Manufacturer Part #
- G25300-2020
- Dimensions
- 7.0" x 2.5" x 2.5"
- UPC
- 00072053172249
- Package Length
- 7.0 in
- Package Width
- 2.5 in
- Package Height
- 2.5 in
- Package Weight
- 1.54 lb
- Interchange Part Numbers
- Goodyear UC-FL-2020, Dayco HY20-20PA, Eaton 1A20FL20, 1234-2020, Weatherhead 20UG20, Weatherhead 20U-G20, Weatherhead 20ZG20, Weatherhead 20Z-G20, 04032397, Parker 11543-20-20, Continental Belt B2-FL-2020, NAPA G25300-2020
