Specifications
- Brand
- Gates
- Part #
- G20365-1212
- Dimensions
- 5.1" x 1.8" x 1.8"
- UPC
- 00072053408348
- Package Length
- 5.1 in
- Package Width
- 1.8 in
- Package Height
- 1.8 in
- Package Weight
- 0.75 lb
- Interchange Part Numbers
- Aeroquip 1E12FHB12, Goodyear 29315-1212, Dayco 1B12FHB12, Aeroquip 4S12FHB12, Dayco 102245, Goodyear S6-FH90-1212, Aeroquip FJ9796-1212S, Parker 16N43-12-12, Parker 16N71-12-12, Parker 16N73-12-12, N12-12FLH90-056, Aeroquip 1W12FHB12

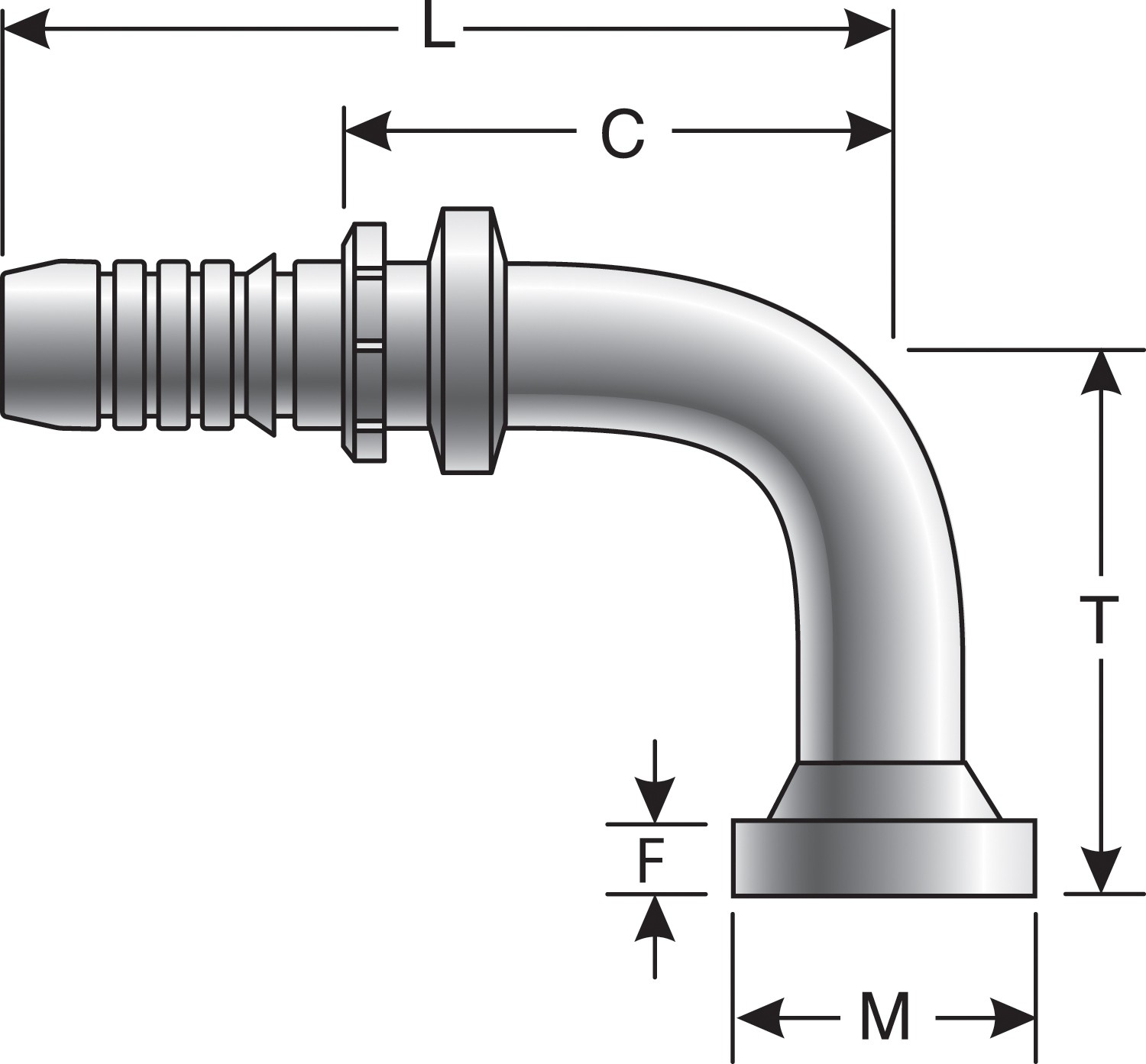

Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral)
$56.39
Key Features
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 5.1 in
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. All FLH sizes maximum working pressure of 6,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Gates accessories for O-rings. MGS Couplings for use with MC4-20 Crimper Only.
Description
Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral)Specifications
- Brand
- Gates
- Manufacturer Part #
- G20365-1212
- Dimensions
- 5.1" x 1.8" x 1.8"
- UPC
- 00072053408348
- Package Length
- 5.1 in
- Package Width
- 1.8 in
- Package Height
- 1.8 in
- Package Weight
- 0.75 lb
- Interchange Part Numbers
- Aeroquip 1E12FHB12, Goodyear 29315-1212, Dayco 1B12FHB12, Aeroquip 4S12FHB12, Dayco 102245, Goodyear S6-FH90-1212, Aeroquip FJ9796-1212S, Parker 16N43-12-12, Parker 16N71-12-12, Parker 16N73-12-12, N12-12FLH90-056, Aeroquip 1W12FHB12
