Specifications
- Brand
- Gates
- Part #
- G20350-0808
- Dimensions
- 2.0" x 2.0" x 2.0"
- UPC
- 00072053310627
- Package Length
- 2.0 in
- Package Width
- 2.0 in
- Package Height
- 2.0 in
- Package Weight
- 0.31 lb
- Interchange Part Numbers
- Eaton 1B8FH8, Caterpillar 155-2842, M23611-08-08, Dayco 100370, Goodyear 28300-0808, 04031037, Continental Belt B2-FH-0808, Aeroquip 4S8FH8, Weatherhead 43008UD08, Weatherhead 43008U-D08, Parker 16A70-08-08, Parker 16A70-8-8

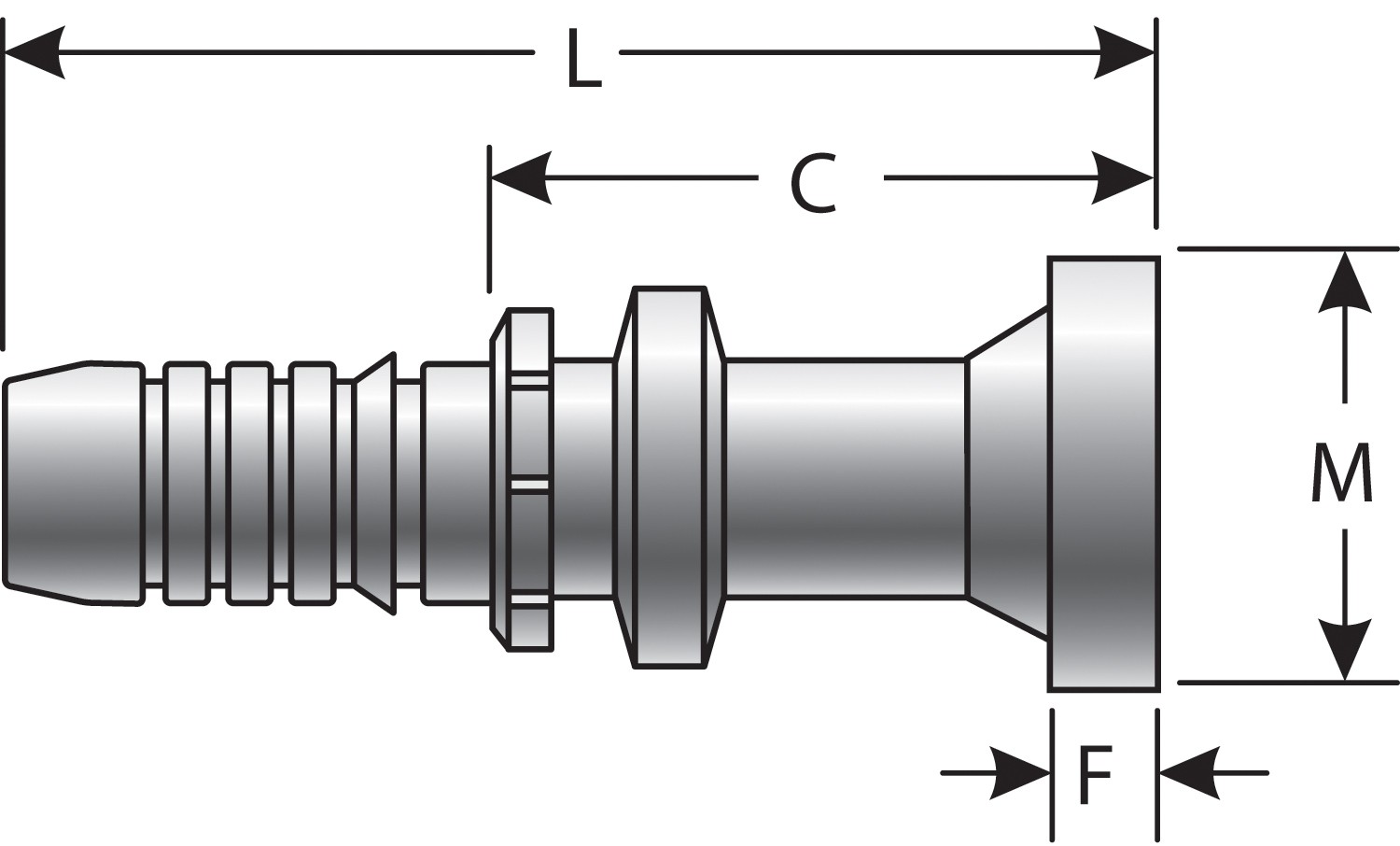

Code 62 O-Ring Flange Heavy (GlobalSpiral)
$61.01
Key Features
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 2.0 in
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. All FLH sizes maximum working pressure of 6,000 psi. See Gates accessories for O-rings. MGS Couplings for use with MC4-20 Crimper Only.
Description
Code 62 O-Ring Flange Heavy (GlobalSpiral)Specifications
- Brand
- Gates
- Manufacturer Part #
- G20350-0808
- Dimensions
- 2.0" x 2.0" x 2.0"
- UPC
- 00072053310627
- Package Length
- 2.0 in
- Package Width
- 2.0 in
- Package Height
- 2.0 in
- Package Weight
- 0.31 lb
- Interchange Part Numbers
- Eaton 1B8FH8, Caterpillar 155-2842, M23611-08-08, Dayco 100370, Goodyear 28300-0808, 04031037, Continental Belt B2-FH-0808, Aeroquip 4S8FH8, Weatherhead 43008UD08, Weatherhead 43008U-D08, Parker 16A70-08-08, Parker 16A70-8-8
