Specifications
- Brand
- Gates
- Part #
- G20350-1620
- Dimensions
- 5.9" x 2.1" x 2.1"
- UPC
- 00072053297522
- Package Length
- 5.9 in
- Package Width
- 2.1 in
- Package Height
- 2.1 in
- Package Weight
- 0.88 lb
- Interchange Part Numbers
- Aeroquip 6S20FH16, Aeroquip 1E20FH16, Aeroquip 1Z20FH16, Goodyear 28300-1620, Dayco FJ9784-2016S, Kurt Hydraulics C62-16-20-W, Goodyear 30300-1620, Goodyear S6-FH-1620, 4041-2016, M23611-16-20, N16-20FLH, Goodyear 14300-1620

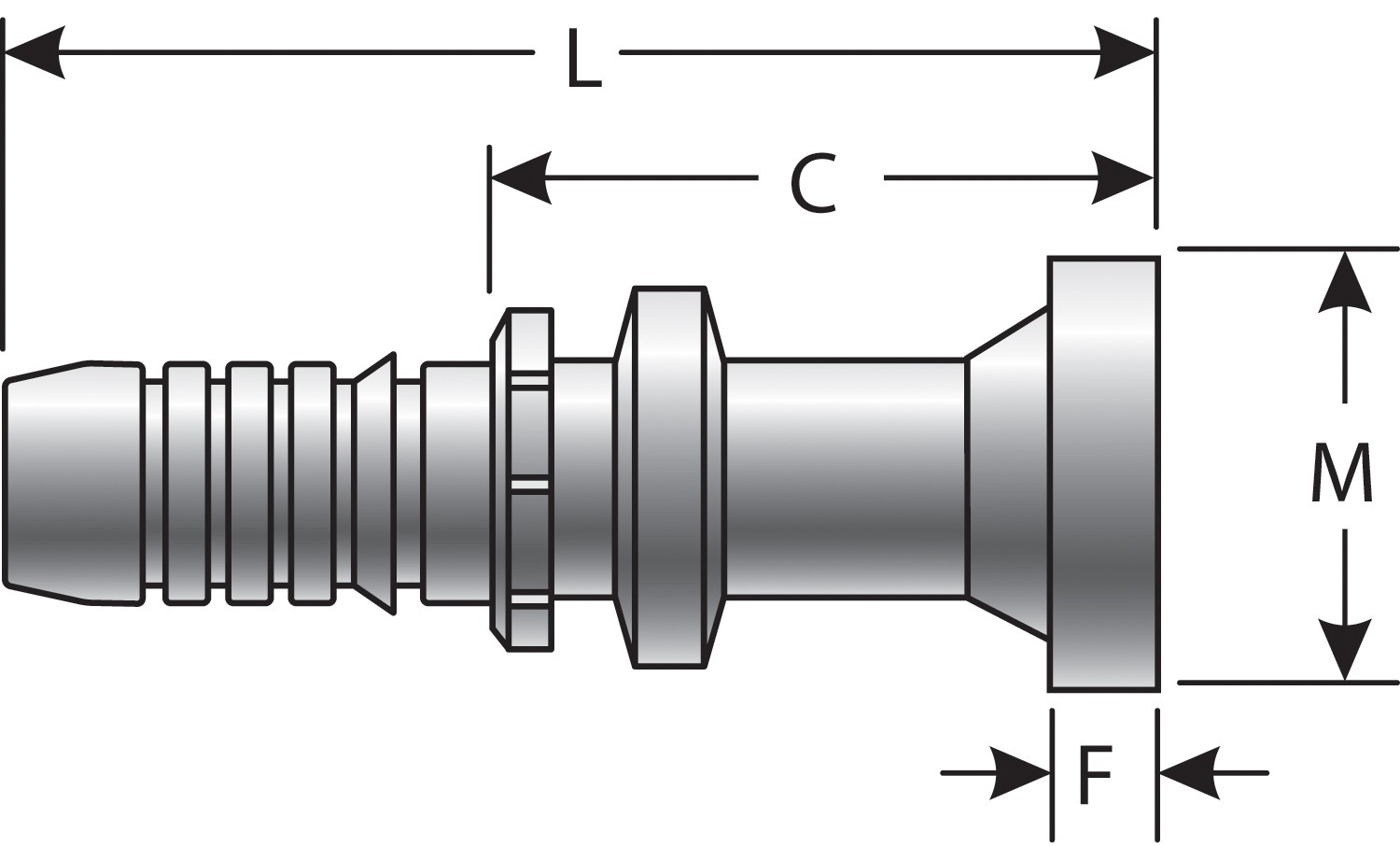

Code 62 O-Ring Flange Heavy (GlobalSpiral)
$94.48
Key Features
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 5.9 in
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. All FLH sizes maximum working pressure of 6,000 psi. See Gates accessories for O-rings. MGS Couplings for use with MC4-20 Crimper Only.
Description
Code 62 O-Ring Flange Heavy (GlobalSpiral)Specifications
- Brand
- Gates
- Manufacturer Part #
- G20350-1620
- Dimensions
- 5.9" x 2.1" x 2.1"
- UPC
- 00072053297522
- Package Length
- 5.9 in
- Package Width
- 2.1 in
- Package Height
- 2.1 in
- Package Weight
- 0.88 lb
- Interchange Part Numbers
- Aeroquip 6S20FH16, Aeroquip 1E20FH16, Aeroquip 1Z20FH16, Goodyear 28300-1620, Dayco FJ9784-2016S, Kurt Hydraulics C62-16-20-W, Goodyear 30300-1620, Goodyear S6-FH-1620, 4041-2016, M23611-16-20, N16-20FLH, Goodyear 14300-1620
