Specifications
- Brand
- Gates
- Part #
- G22350-2424
- Dimensions
- 7.0" x 2.5" x 2.5"
- UPC
- 00770075374541
- Package Length
- 7.0 in
- Package Width
- 2.5 in
- Package Height
- 2.5 in
- Package Weight
- 0.99 lb
- Interchange Part Numbers
- Aeroquip 1Z24FH24, Kurt Hydraulics C62-24-24-W, Aeroquip FC5325-2424S, 04031574, 4041-2424, NAPA G22350-2424, Aeroquip 1E24FH24, Aeroquip 1W24FH24, Weatherhead 47024E-D24, Aeroquip 4S24FH24, Weatherhead 43024UD24, Weatherhead 43024U-D24

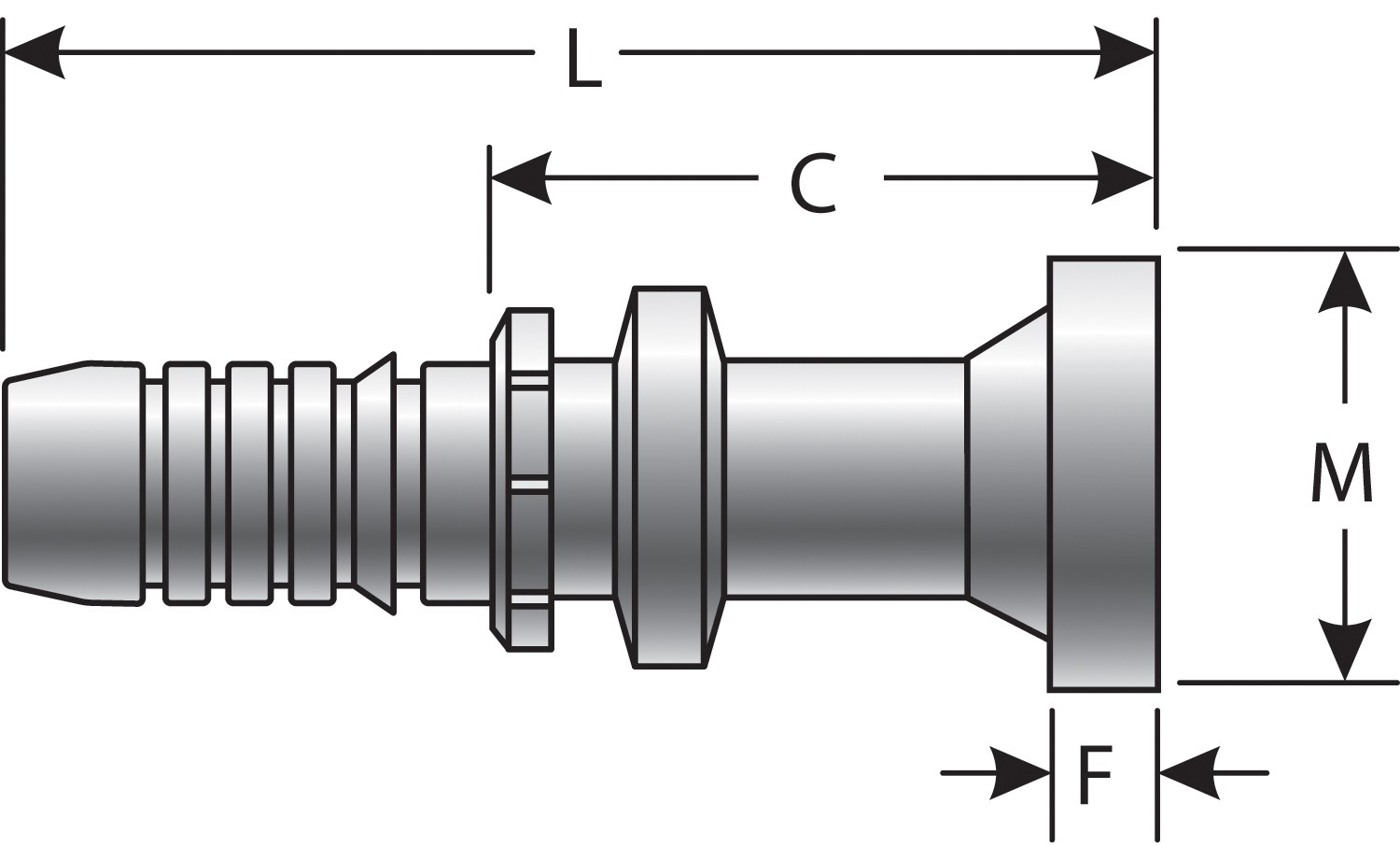

Code 62 O-Ring Flange Heavy (GlobalSpiral Plus)
$96.32
In Stock
Key Features
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 7.0 in
Add your vehicle to track confirmations →
About this part
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. Separate ferrules are required for 4-spiral hose and wire braid hose.
Description
Code 62 O-Ring Flange Heavy (GlobalSpiral Plus)Specifications
- Brand
- Gates
- Manufacturer Part #
- G22350-2424
- Dimensions
- 7.0" x 2.5" x 2.5"
- UPC
- 00770075374541
- Package Length
- 7.0 in
- Package Width
- 2.5 in
- Package Height
- 2.5 in
- Package Weight
- 0.99 lb
- Interchange Part Numbers
- Aeroquip 1Z24FH24, Kurt Hydraulics C62-24-24-W, Aeroquip FC5325-2424S, 04031574, 4041-2424, NAPA G22350-2424, Aeroquip 1E24FH24, Aeroquip 1W24FH24, Weatherhead 47024E-D24, Aeroquip 4S24FH24, Weatherhead 43024UD24, Weatherhead 43024U-D24
