Specifications
- Brand
- Gates
- Part #
- G20225-1012
- Dimensions
- 4.1" x 1.5" x 1.5"
- UPC
- 00770075170013
- Package Length
- 4.1 in
- Package Width
- 1.5 in
- Package Height
- 1.5 in
- Package Weight
- 0.45 lb
- Interchange Part Numbers
- Kurt Hydraulics MF-10-12-W, Parker 1J071-12-10, NAPA G20225-1012, Dayco 101592, 04030808

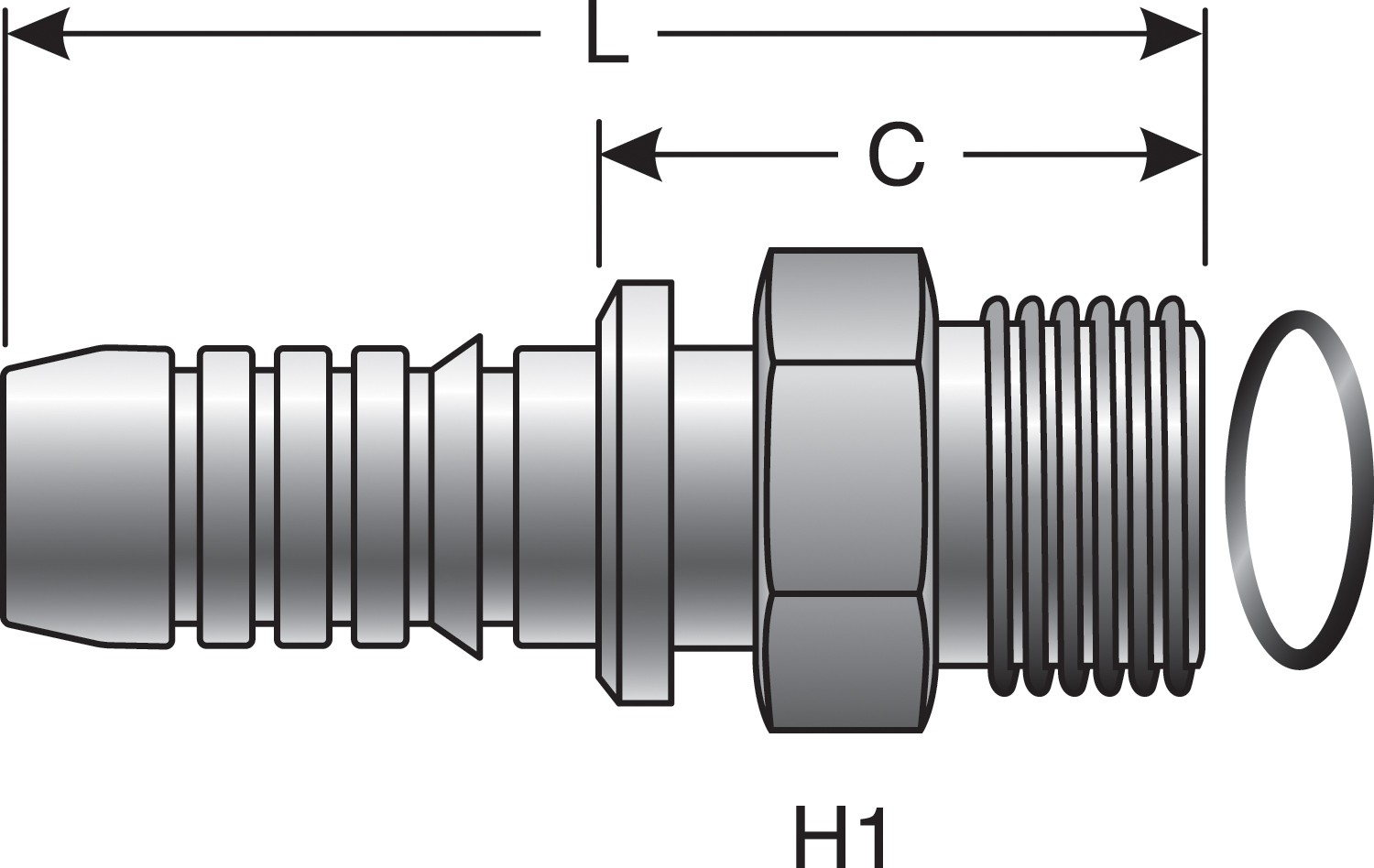

Male Flat-Face O-Ring (GlobalSpiral)
$34.91
Key Features
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 4.1 in
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. Includes Peroxide-cured O-Ring. Metric Hex per ISO Draft International Standard 12151-1. Utilizes SAE J1453 Captive O-Ring Groove for improved O-Ring retention. MGS Couplings for use with MC4-20 Crimper Only.
Description
Male Flat-Face O-Ring (GlobalSpiral)Specifications
- Brand
- Gates
- Manufacturer Part #
- G20225-1012
- Dimensions
- 4.1" x 1.5" x 1.5"
- UPC
- 00770075170013
- Package Length
- 4.1 in
- Package Width
- 1.5 in
- Package Height
- 1.5 in
- Package Weight
- 0.45 lb
- Interchange Part Numbers
- Kurt Hydraulics MF-10-12-W, Parker 1J071-12-10, NAPA G20225-1012, Dayco 101592, 04030808
