Specifications
- Brand
- Gates
- Part #
- G20225-1212
- Dimensions
- 4.7" x 1.7" x 1.7"
- UPC
- 00072053434699
- Package Length
- 4.7 in
- Package Width
- 1.7 in
- Package Height
- 1.7 in
- Package Weight
- 0.44 lb
- Interchange Part Numbers
- Goodyear 28730-1212, Aeroquip 4SA12MR12, Dayco 1BA12MR12, Goodyear S4-OFM-1212, Kurt Hydraulics MF-12-12-W, 04030803, Parker 1J071-12-12, M72410-12-12, Weatherhead 43012UE72, Weatherhead 43012U-E72, Weatherhead 43012UEE72, Goodyear 29730-1212

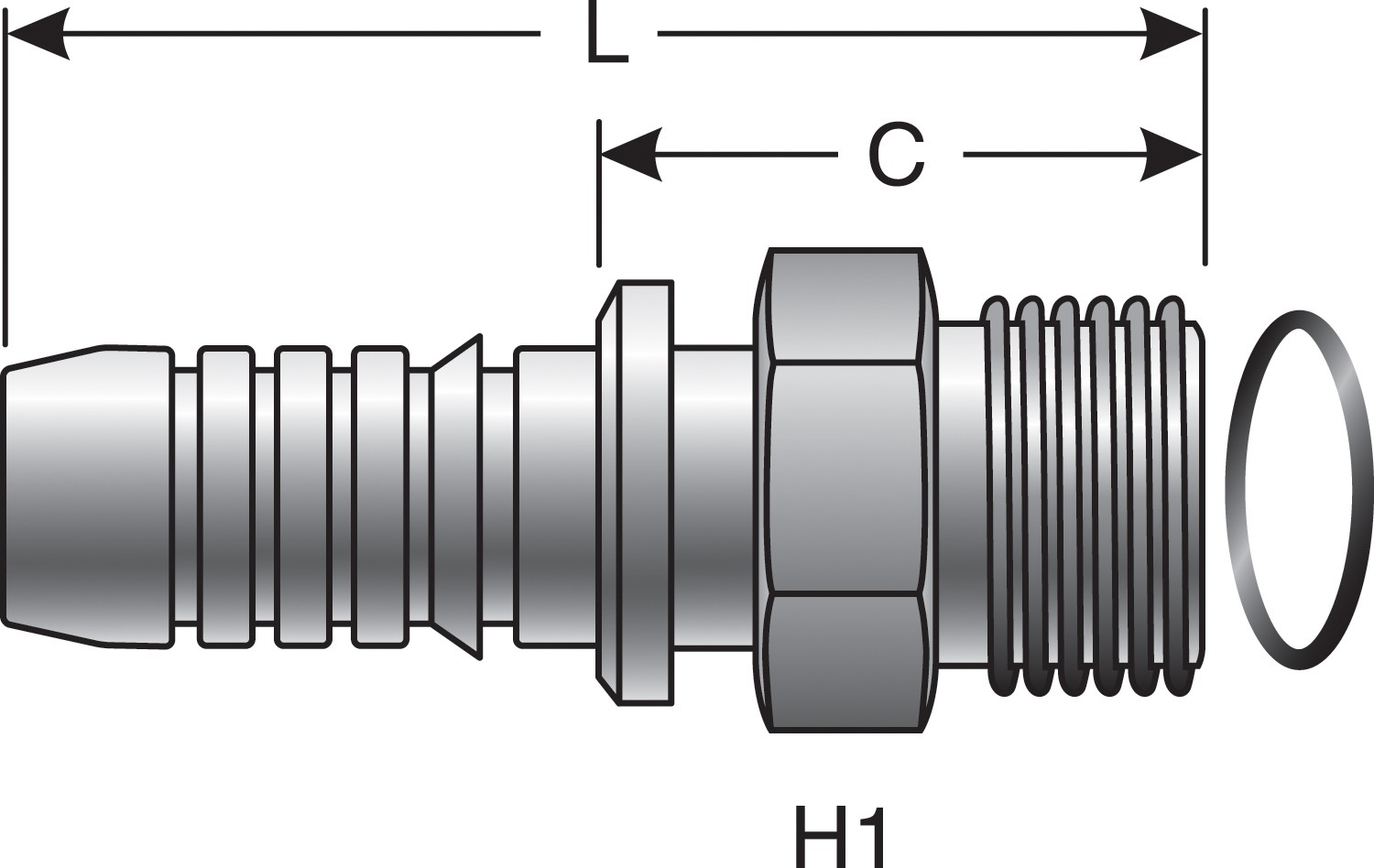

Male Flat-Face O-Ring (GlobalSpiral)
$33.24
Key Features
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 4.7 in
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. Includes Peroxide-cured O-Ring. Metric Hex per ISO Draft International Standard 12151-1. Utilizes SAE J1453 Captive O-Ring Groove for improved O-Ring retention. MGS Couplings for use with MC4-20 Crimper Only.
Description
Male Flat-Face O-Ring (GlobalSpiral)Specifications
- Brand
- Gates
- Manufacturer Part #
- G20225-1212
- Dimensions
- 4.7" x 1.7" x 1.7"
- UPC
- 00072053434699
- Package Length
- 4.7 in
- Package Width
- 1.7 in
- Package Height
- 1.7 in
- Package Weight
- 0.44 lb
- Interchange Part Numbers
- Goodyear 28730-1212, Aeroquip 4SA12MR12, Dayco 1BA12MR12, Goodyear S4-OFM-1212, Kurt Hydraulics MF-12-12-W, 04030803, Parker 1J071-12-12, M72410-12-12, Weatherhead 43012UE72, Weatherhead 43012U-E72, Weatherhead 43012UEE72, Goodyear 29730-1212
