Specifications
- Brand
- Gates
- Part #
- G20225-2020
- Dimensions
- 5.6" x 2.0" x 2.0"
- UPC
- 00072053401745
- Package Length
- 5.6 in
- Package Width
- 2.0 in
- Package Height
- 2.0 in
- Package Weight
- 1.19 lb
- Interchange Part Numbers
- Aeroquip 4SA20MR20, Goodyear S4-OFM-2020, M72410-20-20, Goodyear 28730-2020, 04030805, Weatherhead 43020EE80, Weatherhead 43020E-E80, NAPA G20225-2020, Weatherhead 43020UE80, Weatherhead 43020U-E80, C12412410-2020, 620-1WFS-20

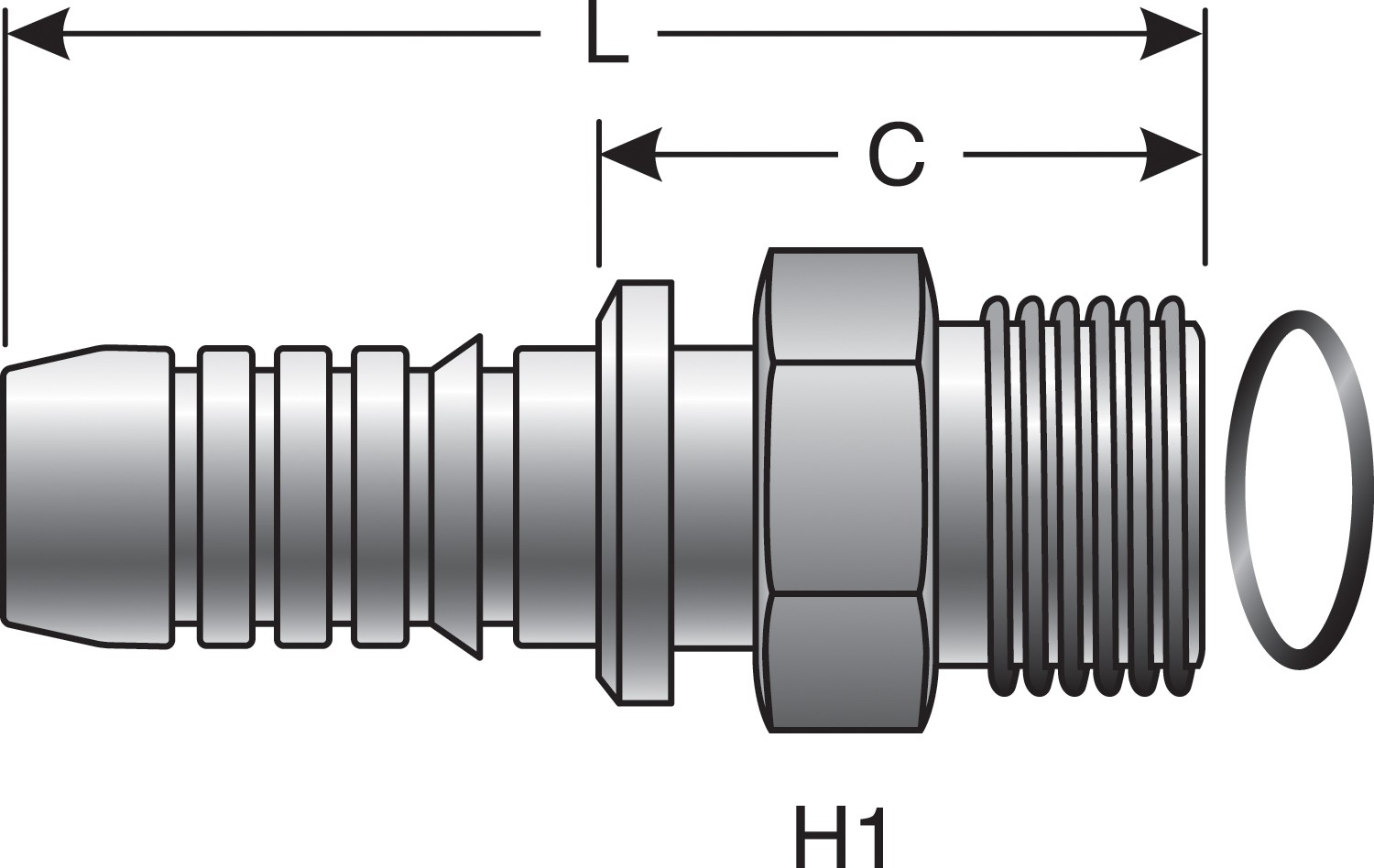

Male Flat-Face O-Ring (GlobalSpiral)
$66.35
Key Features
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 5.6 in
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. Includes Peroxide-cured O-Ring. Metric Hex per ISO Draft International Standard 12151-1. Utilizes SAE J1453 Captive O-Ring Groove for improved O-Ring retention. MGS Couplings for use with MC4-20 Crimper Only.
Description
Male Flat-Face O-Ring (GlobalSpiral)Specifications
- Brand
- Gates
- Manufacturer Part #
- G20225-2020
- Dimensions
- 5.6" x 2.0" x 2.0"
- UPC
- 00072053401745
- Package Length
- 5.6 in
- Package Width
- 2.0 in
- Package Height
- 2.0 in
- Package Weight
- 1.19 lb
- Interchange Part Numbers
- Aeroquip 4SA20MR20, Goodyear S4-OFM-2020, M72410-20-20, Goodyear 28730-2020, 04030805, Weatherhead 43020EE80, Weatherhead 43020E-E80, NAPA G20225-2020, Weatherhead 43020UE80, Weatherhead 43020U-E80, C12412410-2020, 620-1WFS-20
