Specifications
- Brand
- Gates
- Part #
- G22225-2424
- Dimensions
- 3.7" x 1.3" x 1.3"
- UPC
- 00770075361480
- Package Length
- 3.7 in
- Package Width
- 1.3 in
- Package Height
- 1.3 in
- Package Weight
- 1.67 lb
- Interchange Part Numbers
- 04031517, NAPA G22225-2424

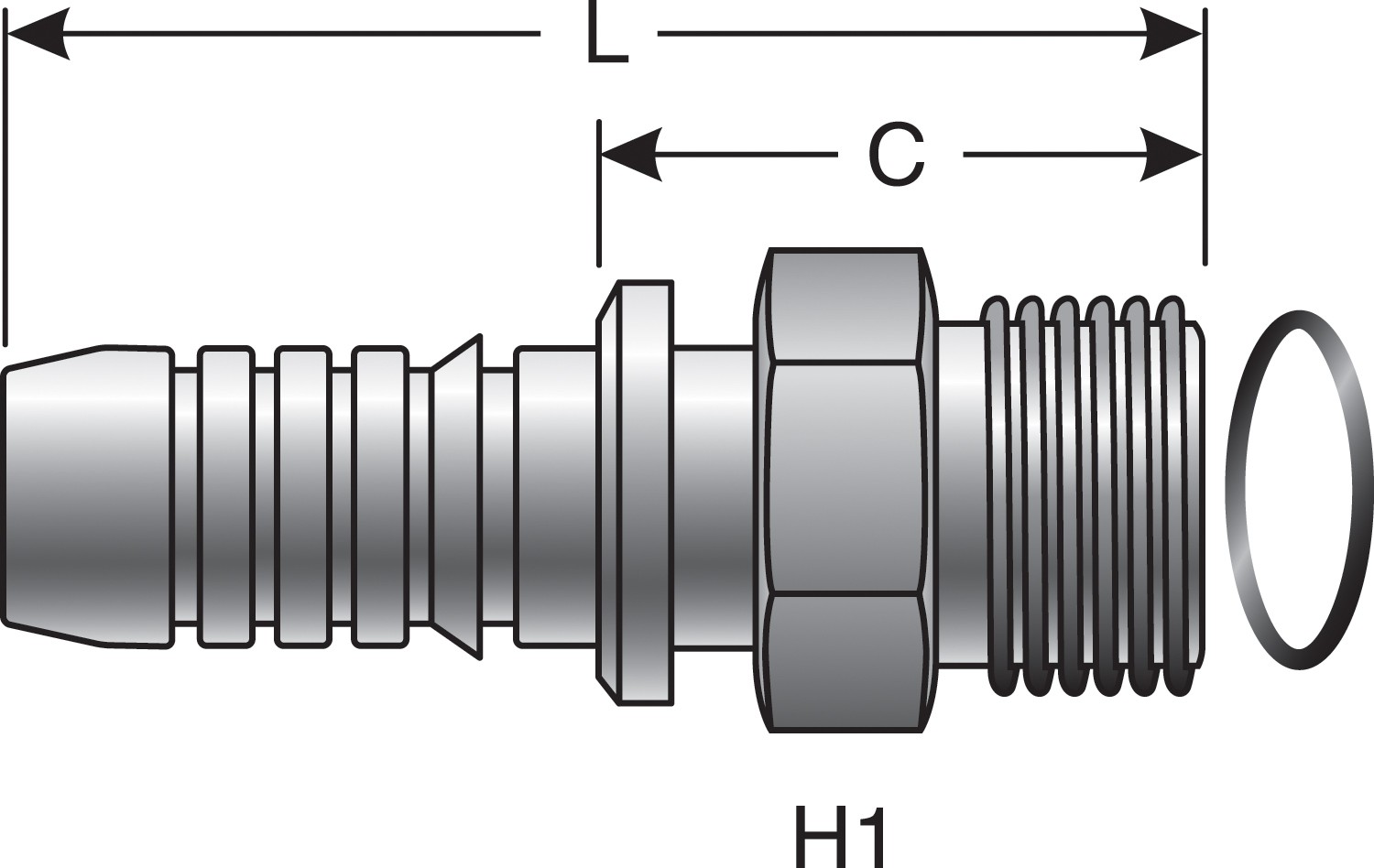

Male Flat-Face O-Ring (GlobalSpiral Plus)
$101.59
Key Features
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 3.7 in
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. Separate ferrules are required for 4-spiral hose and wire braid hose. Includes Peroxide-cured O-Ring. Metric Hex per ISO Draft International Standard 1215-1. Utilizes SAE J1453 Captive O-Ring Groove for Improved O-Ring Retention.
Description
Male Flat-Face O-Ring (GlobalSpiral Plus)Specifications
- Brand
- Gates
- Manufacturer Part #
- G22225-2424
- Dimensions
- 3.7" x 1.3" x 1.3"
- UPC
- 00770075361480
- Package Length
- 3.7 in
- Package Width
- 1.3 in
- Package Height
- 1.3 in
- Package Weight
- 1.67 lb
- Interchange Part Numbers
- 04031517, NAPA G22225-2424
