Specifications
- Brand
- Gates
- Part #
- G25225-1012
- Dimensions
- 4.1" x 1.5" x 1.5"
- UPC
- 00072053408584
- Package Length
- 4.1 in
- Package Width
- 1.5 in
- Package Height
- 1.5 in
- Package Weight
- 0.55 lb
- Interchange Part Numbers
- Kurt Hydraulics MF-10-12, Eaton 1AA12MR10, Weatherhead 10ZE72, E10-12MF, C12212410-1012, 04032218, NAPA G25225-1012, 210-1JSF-12, Parker 1J043-12-10, Weatherhead 10UE72, Weatherhead 10U-E72, M12410-10-12

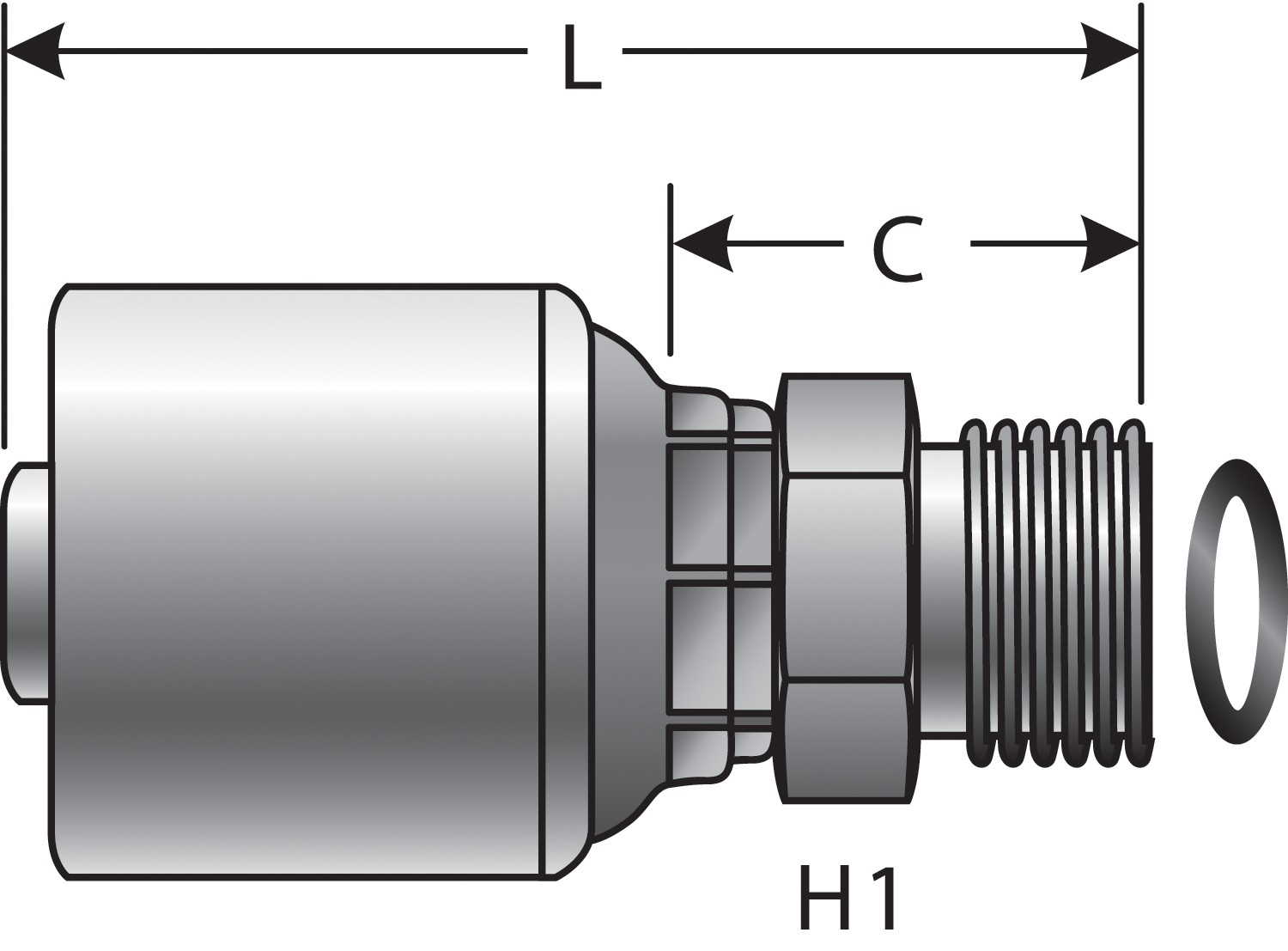

Male Flat-Face O-Ring (MegaCrimp)
$37.51
In Stock
Key Features
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 4.1 in
Add your vehicle to track confirmations →
About this part
Product Details
The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. SAE J1453 Captive O-ring Groove for improved O-ring retention.
Description
Male Flat-Face O-Ring (MegaCrimp)Specifications
- Brand
- Gates
- Manufacturer Part #
- G25225-1012
- Dimensions
- 4.1" x 1.5" x 1.5"
- UPC
- 00072053408584
- Package Length
- 4.1 in
- Package Width
- 1.5 in
- Package Height
- 1.5 in
- Package Weight
- 0.55 lb
- Interchange Part Numbers
- Kurt Hydraulics MF-10-12, Eaton 1AA12MR10, Weatherhead 10ZE72, E10-12MF, C12212410-1012, 04032218, NAPA G25225-1012, 210-1JSF-12, Parker 1J043-12-10, Weatherhead 10UE72, Weatherhead 10U-E72, M12410-10-12
