Specifications
- Brand
- Gates
- Part #
- G25225-1216
- Dimensions
- 5.1" x 1.8" x 1.8"
- UPC
- 00072053284706
- Package Length
- 5.1 in
- Package Width
- 1.8 in
- Package Height
- 1.8 in
- Package Weight
- 1.20 lb
- Interchange Part Numbers
- Weatherhead 12UE76, Weatherhead 12U-E76, Eaton 12Z-E76, M12410-12-16, Aeroquip 1AA16MR12, Goodyear 14730-1216, 04032222, Goodyear B2-OFM-1216, NAPA G25225-1216, Parker 1J043-16-12, Goodyear UC-OFM-1216, Weatherhead 12UEE76

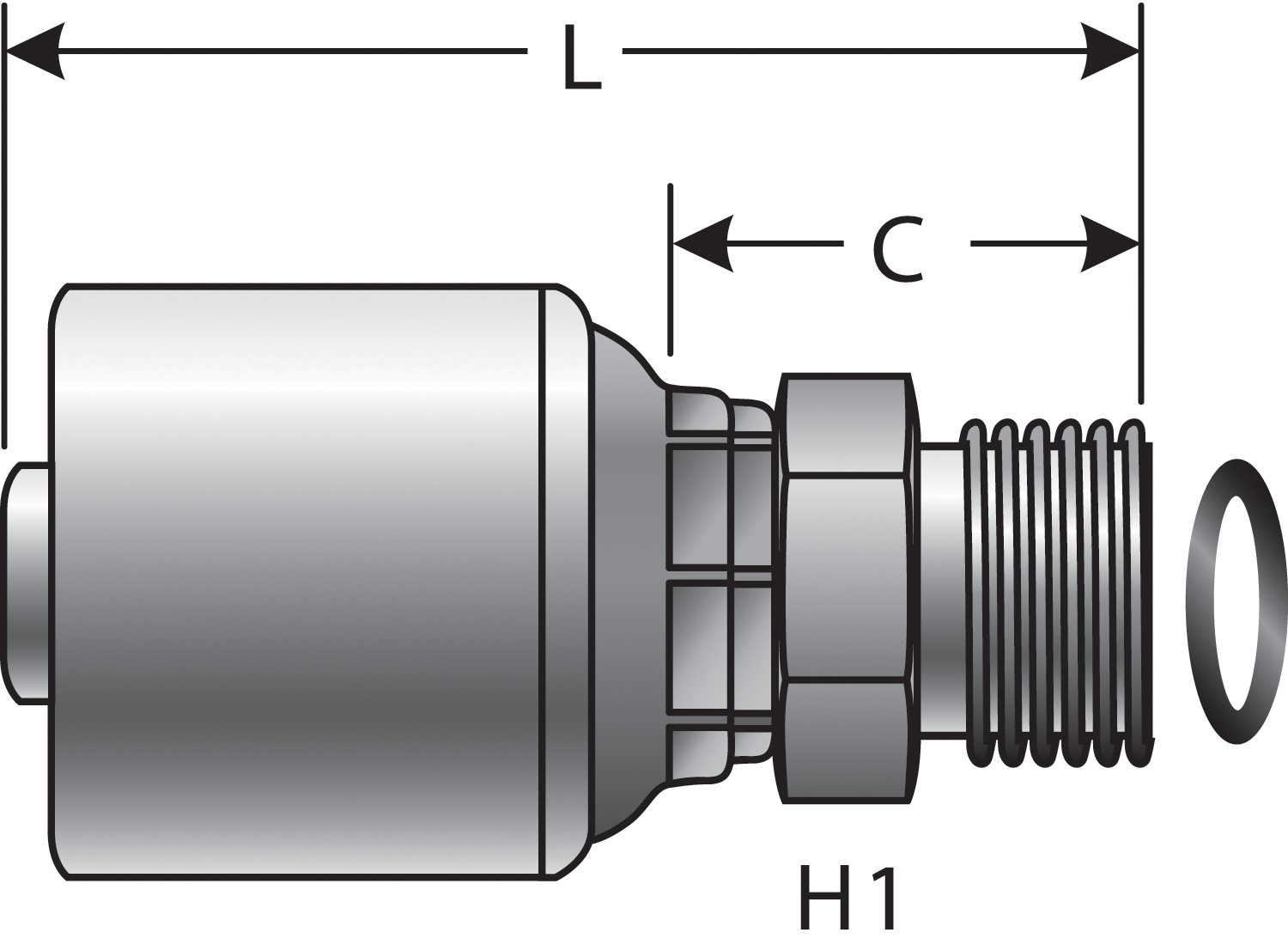

Male Flat-Face O-Ring (MegaCrimp)
$54.38
Only 1 left in stock
Key Features
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 5.1 in
Add your vehicle to track confirmations →
About this part
Product Details
The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. SAE J1453 Captive O-ring Groove for improved O-ring retention.
Description
Male Flat-Face O-Ring (MegaCrimp)Specifications
- Brand
- Gates
- Manufacturer Part #
- G25225-1216
- Dimensions
- 5.1" x 1.8" x 1.8"
- UPC
- 00072053284706
- Package Length
- 5.1 in
- Package Width
- 1.8 in
- Package Height
- 1.8 in
- Package Weight
- 1.20 lb
- Interchange Part Numbers
- Weatherhead 12UE76, Weatherhead 12U-E76, Eaton 12Z-E76, M12410-12-16, Aeroquip 1AA16MR12, Goodyear 14730-1216, 04032222, Goodyear B2-OFM-1216, NAPA G25225-1216, Parker 1J043-16-12, Goodyear UC-OFM-1216, Weatherhead 12UEE76
