Specifications
- Brand
- Gates
- Part #
- G25225-1616
- Dimensions
- 5.9" x 2.1" x 2.1"
- UPC
- 00072053173369
- Package Length
- 5.9 in
- Package Width
- 2.1 in
- Package Height
- 2.1 in
- Package Weight
- 1.27 lb
- Interchange Part Numbers
- Kurt Hydraulics MF-16-16, Goodyear UC-OFM-1616, Dayco 108104, Eaton 16Z-E76, E16-16MF, Weatherhead 16UE76, Weatherhead 16U-E76, Weatherhead 16ZE76, Goodyear 14730-1616, NAPA G25225-1616, M12410-16-16, Parker 1JM43-16-16

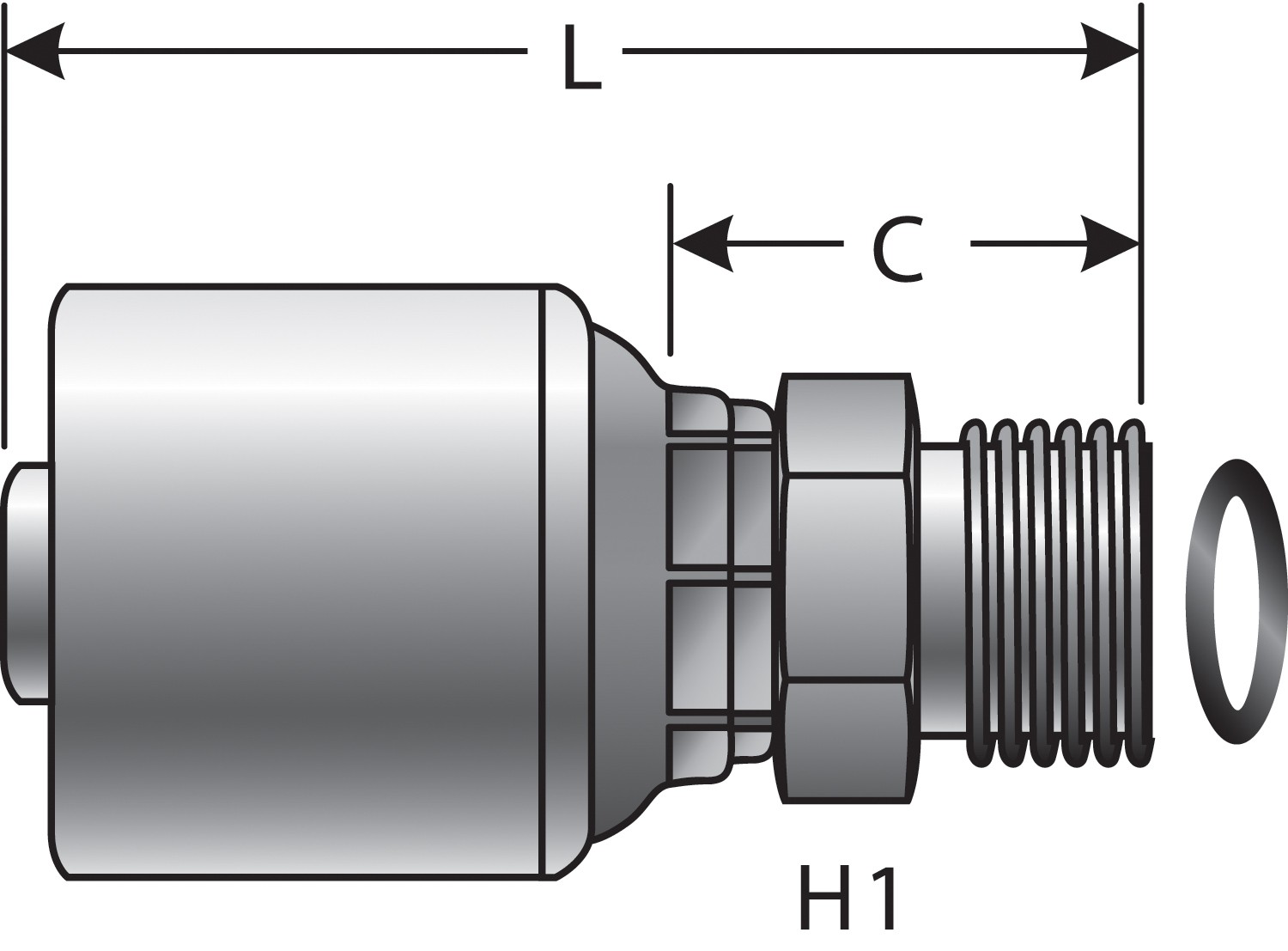

Male Flat-Face O-Ring (MegaCrimp)
$51.70
In Stock
Key Features
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
UNIVERSAL APPLICATION · MEASURE BEFORE ORDERING
- Length
- 5.9 in
Add your vehicle to track confirmations →
About this part
Product Details
The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. SAE J1453 Captive O-ring Groove for improved O-ring retention.
Description
Male Flat-Face O-Ring (MegaCrimp)Specifications
- Brand
- Gates
- Manufacturer Part #
- G25225-1616
- Dimensions
- 5.9" x 2.1" x 2.1"
- UPC
- 00072053173369
- Package Length
- 5.9 in
- Package Width
- 2.1 in
- Package Height
- 2.1 in
- Package Weight
- 1.27 lb
- Interchange Part Numbers
- Kurt Hydraulics MF-16-16, Goodyear UC-OFM-1616, Dayco 108104, Eaton 16Z-E76, E16-16MF, Weatherhead 16UE76, Weatherhead 16U-E76, Weatherhead 16ZE76, Goodyear 14730-1616, NAPA G25225-1616, M12410-16-16, Parker 1JM43-16-16
