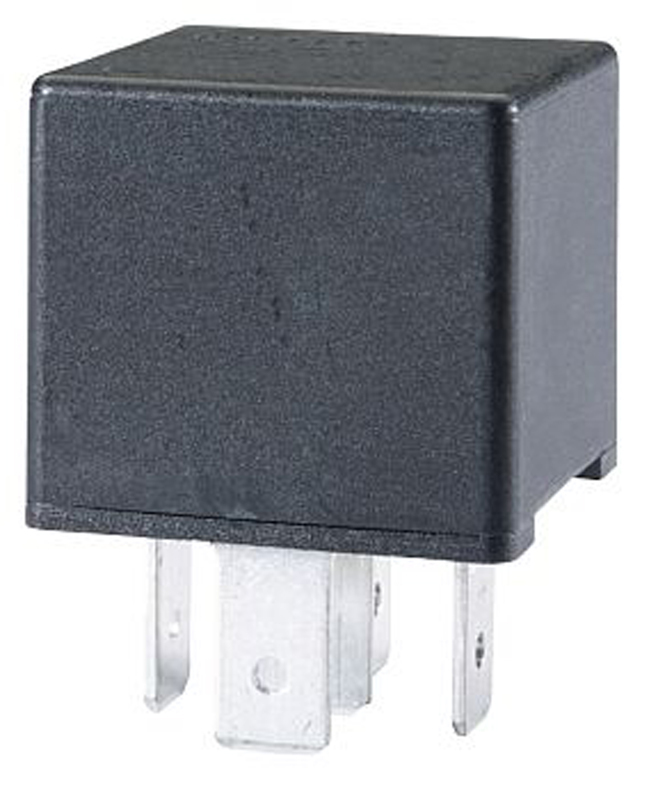

Hella 20/40 Amp SPDT Relay With Resistor

• The SPDT - Change over relay switches electrical load
  from one user to another

• The relay is operated by a dasboard switch

• Change over relays are used for switching from horn to fanfare,
  for 2-speed-appliances such as heated rear windows or fan motors
  and from forward to backward movement of the sliding roof



Specifications:

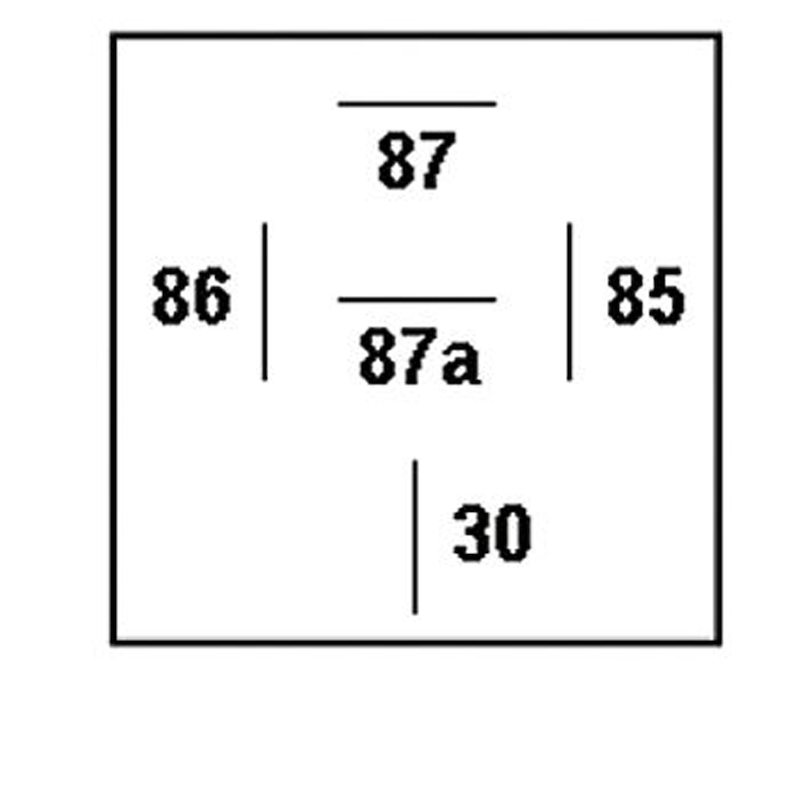

• Contact Form: SPDT (1 Form C) change over

• Voltage: 12

• Amperage:
  20
  40

• Suppression: Resistor

• Coil Resistance (Ohms): 75

• Contact Material: AgNi

• Must Operate Voltage: 8.5

• Must Release Voltage: 1

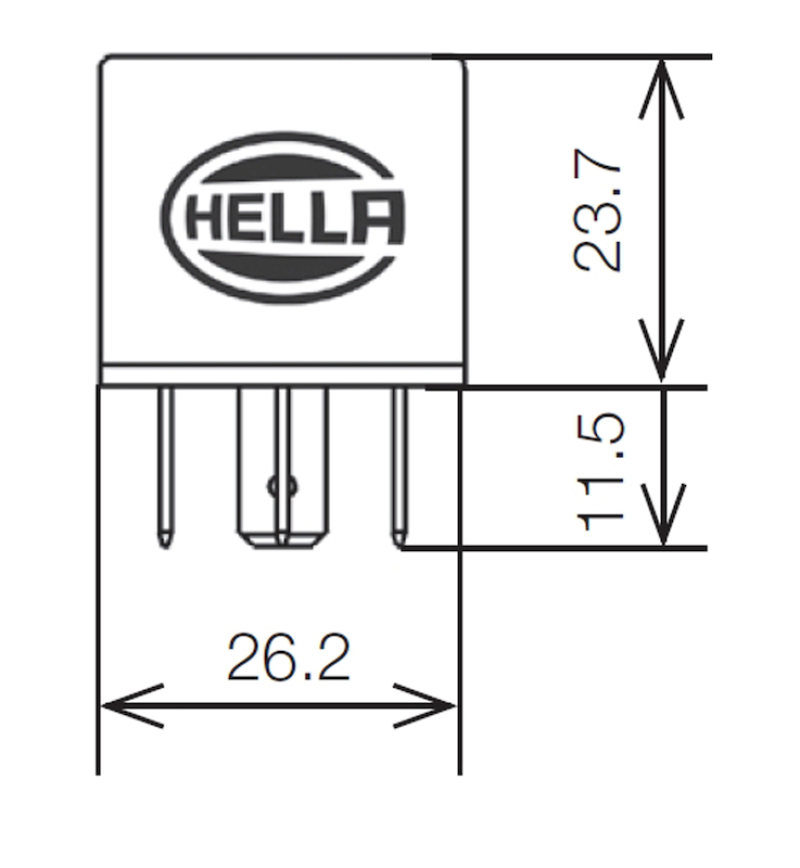

Dimensions:
