ICON 10-14 Ford Raptor Rear Hyd Bump Stop Kit

ICON Vehicle Dynamics is known for developing suspension components that push the limits of off-road performance. For your 2010-2014 Ford Raptor, their Rear Hydraulic Bump Stop Kit is designed to handle the intense demands of off-road driving, especially when your truck is loaded or used beyond its factory intentions. Unlike the stock foam bump stops, which can limit energy absorption and even lead to frame damage, these ICON units use a combination of oil and nitrogen to provide a tunable spring and shock system.

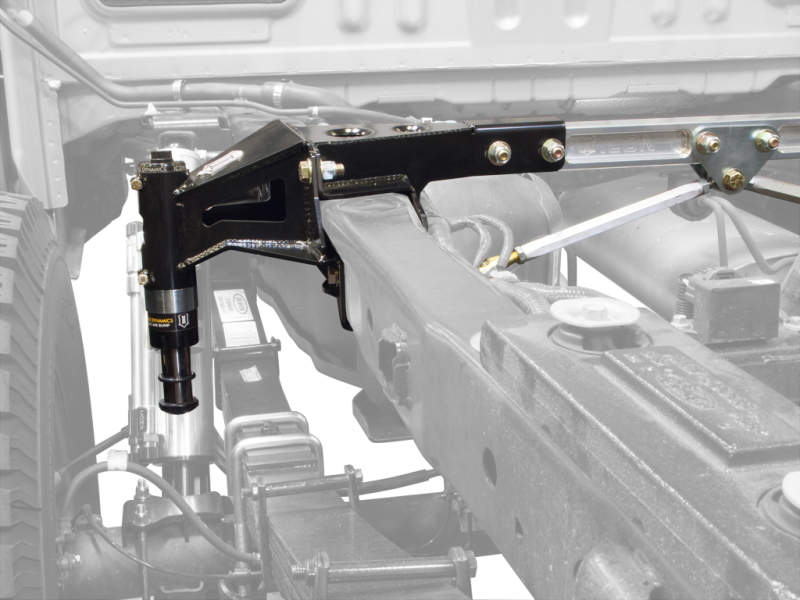

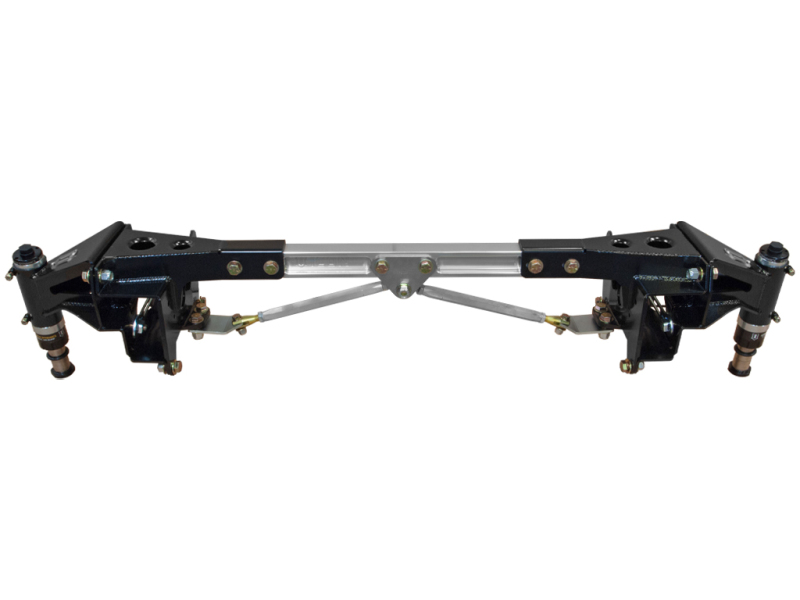

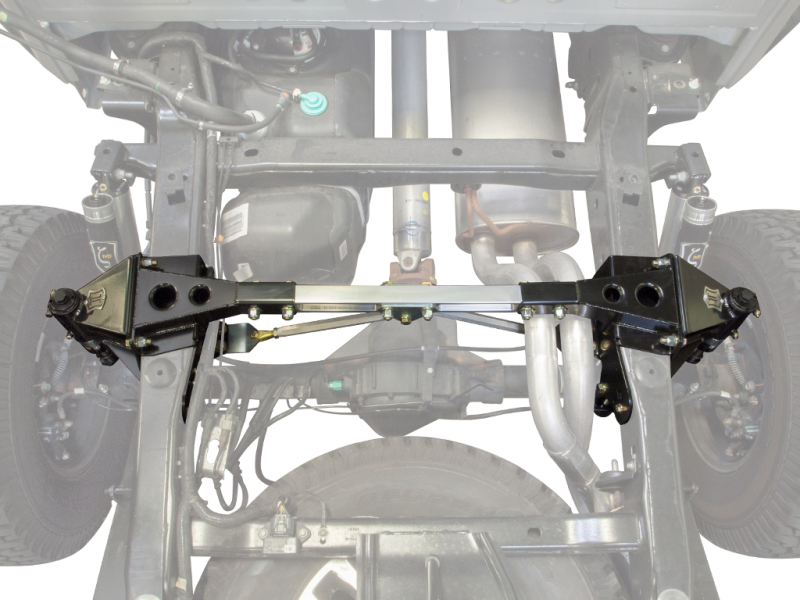

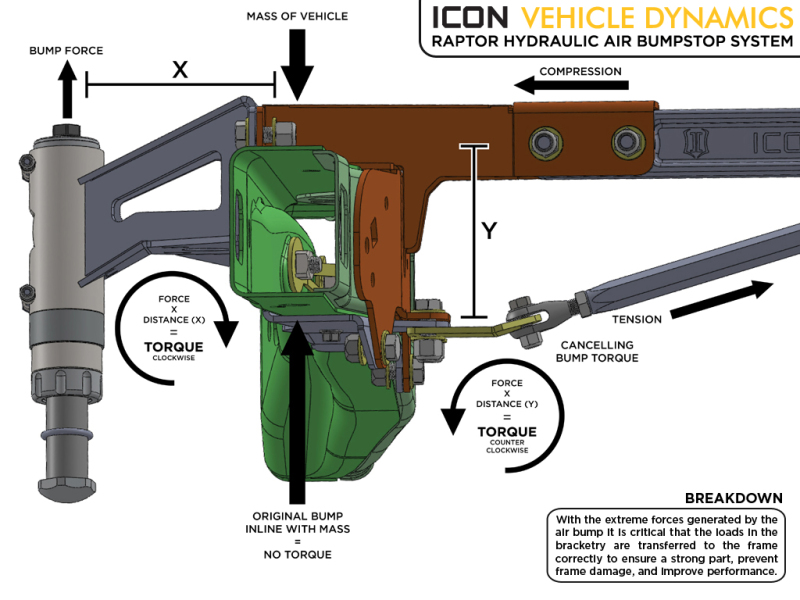

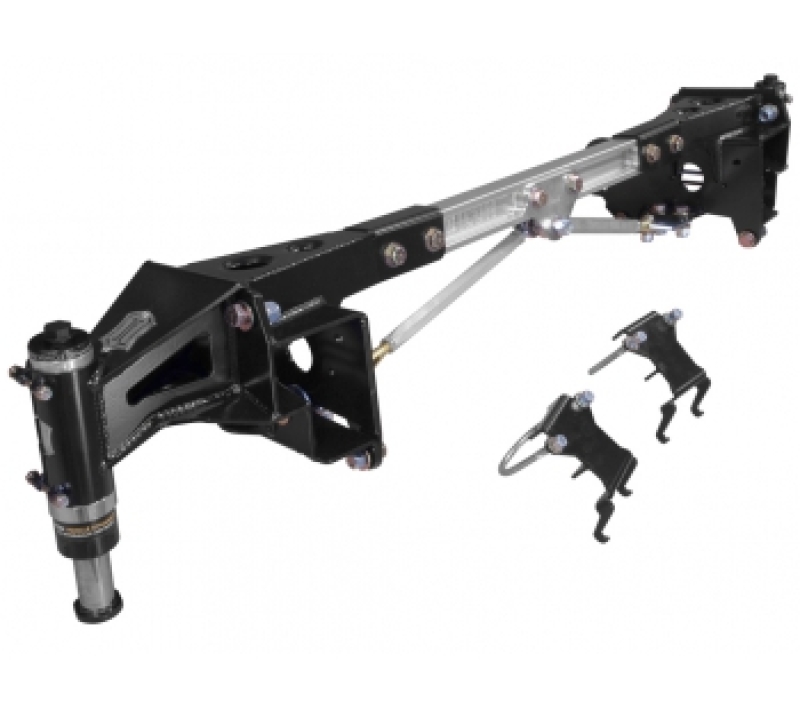

These hydraulic bump stops work by compressing nitrogen to act as a spring, similar to the factory setup, but with a key difference: they incorporate an internal damping piston and oil. This allows them to control the energy returned to the suspension, significantly reducing the tendency for the rear end to kick after hitting an obstacle. The velocity-sensitive design means they offer a soft, compliant ride during slow-speed travel but ramp up to absorb massive impacts at high speeds, preventing bottoming out. The kit includes clamshell brackets with triangulated cross braces that not only provide a rigid mounting point for the bump stops but also reinforce a known weak area of the Raptor frame, preventing damage from extreme use.

This system offers 2.5 inches of travel, giving your shocks more room to manage energy without interfering with normal suspension travel. The kit is designed for an easy bolt-on installation without needing to remove the truck bed. You can also adjust the valve stack, oil volume, and nitrogen pressure to fine-tune the performance to your specific needs and driving style. The solid billet cross bar is polished and anodized for corrosion resistance, and the urethane rod seal and wiper ensure a long service life.
