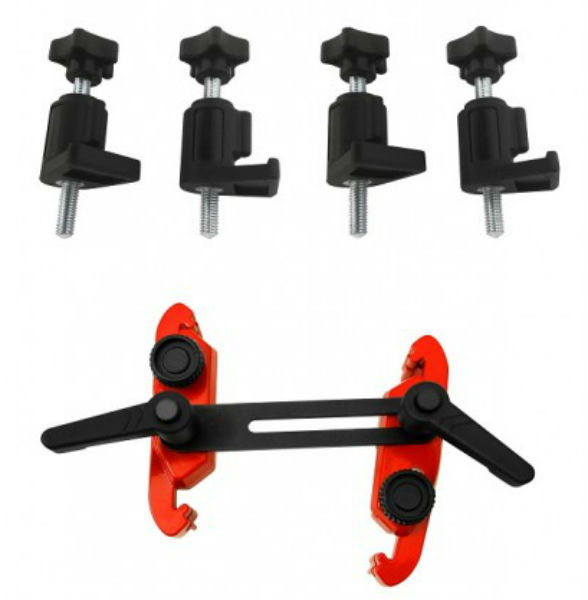

CTA 5 Pc. Master Camshaft Clamp Set

• Holds camshafts in position
  during timing belt replacement

• Services many makes, including:
  Fiat, Ford, Honda, Hyundai,
  Mazda, Mitsubishi, Nissan, Saab,
  Subaru, Toyota, Volvo, etc.

• Includes adjustable clamping tool
  and 4 mini clamps to work on a wide
  variety of single cam, dual cam and
  quad cam overhead engines

• Clamping tool is constructed
  of metal



Instructions:

1. Rotate engine to align engine valve
   timing marks per vehicle
   manufacturers� instructions

2. Apply clamp



Large Clamp (Twin Cam):

1. Loosen both locking bolts

2. Place large clamp between gears

3. Push slides apart

4. When engaged with timing gear,
   tighten both bolts

5. Replace belt following the vehicle
   manufacturer repair instructions

6. Once completed, loosen both locking
   bolts and remove large clamp

Single Clamps (Single, Twin & Quad)

1. Locate position to apply clamp

2. Insert clamp under and hook
   end behind cam gear

3. Keep in position and screw locking
   bolt until contact with cylinder head,
   do not over tighten

4. When engaged with timing gear,
   tighten both bolts

5. Replace belt following the vehicle
   manufacturer repair instructions

6. Once completed, loosen both locking
   bolts and remove clamp
