What is the purpose of differential pinion shims?

Differential pinion shims are used to adjust the pinion angle and the distance between the pinion gear and the ring gear. This adjustment is critical for setting the correct preload and backlash, which ensures the gears mesh properly for quiet and efficient operation.

What vehicles does this Omix shim kit fit?

This kit is specifically designed for 2007-2018 Jeep Wrangler JK and JKU Rubicon models that have the Dana 44 front or rear locking differentials. It replaces the original equipment part number 68003556AA.

Does this kit include everything needed to set differential backlash?

This kit provides the necessary shims for adjusting pinion angle, preload, and backlash. However, it does not include other components like bearings, seals, or gear sets, which may be required for a complete differential rebuild. Always refer to your service manual for a full list of parts needed for your specific repair.

1 / 2

OMIX

Specifications

Brand: OMIX
Part #: 16519.11
UPC: 804314292201

OMIX

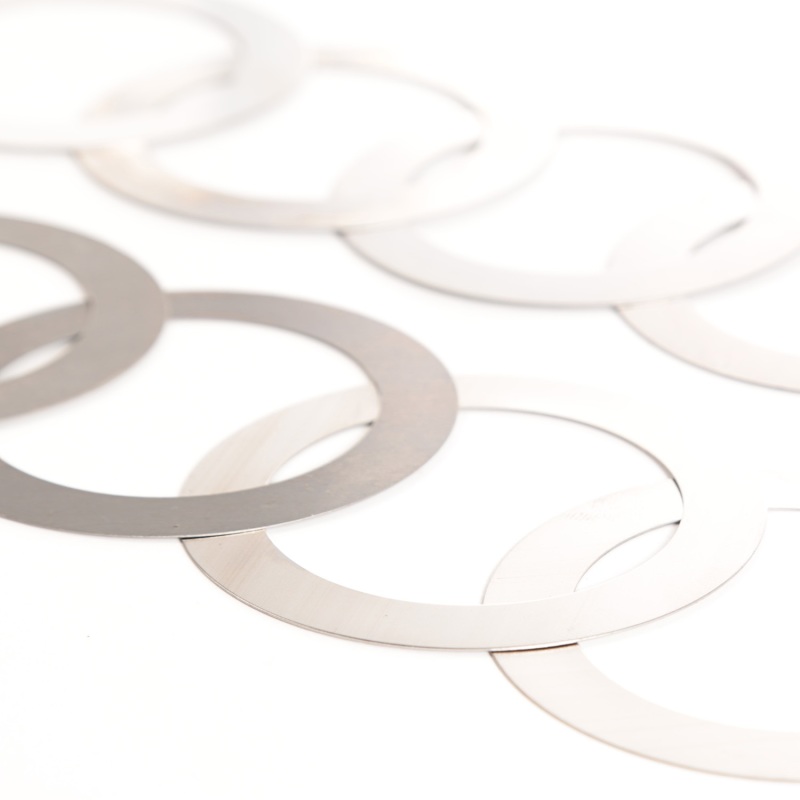

Omix Shim Kit D44- 07-18 Jeep Wrangler JK/JKU Rubicon

Name: Omix Shim Kit D44- 07-18 Jeep Wrangler JK/JKU Rubicon
Brand: OMIX
SKU: omix-omix-shim-kit-d44-07-18-jeep-wrangler-jk-jku-rubicon-t14-439571
Price: 48.41 USD
Availability: BackOrder

$48.41

On Backorder

Order now to reserve yours — we'll ship as soon as stock arrives. Full refund if we're unable to fulfill.

Fits 2007-2018 Jeep Wrangler JK/JKU Rubicon. This Omix differential pinion shim kit is vital for adjusting preload and backlash on Dana 44 locking differentials.

Key Features

Fits 2007-2018 Jeep Wrangler JK and JKU Rubicon models with Dana 44 front or rear locking differentials.
Kit contains shims of varying thicknesses for proper adjustment of differential preload and backlash.
Direct fit replacement for OE part 68003556AA.
Well-built to meet or exceed manufacturer specifications.
Backed by a limited 5-year warranty.

⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more

Secure CheckoutFast Shipping631-982-0042

Will it fit your car?

Fits these vehicles

Jeep Wrangler 2007-2017
Jeep Wrangler JK 2018

About this part

Product Details

This Omix differential pinion shim kit is built with varying thicknesses of steel shims, crucial for fine-tuning the preload and backlash on your Dana 44 locking differential. If you're working on the front or rear axle of your 2007-2018 Jeep Wrangler JK or JKU Rubicon, getting these adjustments right is key to a smooth-running drivetrain.

Properly setting the pinion angle and gear mesh ensures your differential operates efficiently and quietly. This kit replaces the OE part, offering a direct fit for your Rubicon model. It's a well-built set designed to meet or exceed manufacturer specifications, giving you confidence in the repair.

When rebuilding or servicing your differential, having the correct shims on hand makes all the difference in achieving the precise adjustments needed for optimal performance and longevity.
