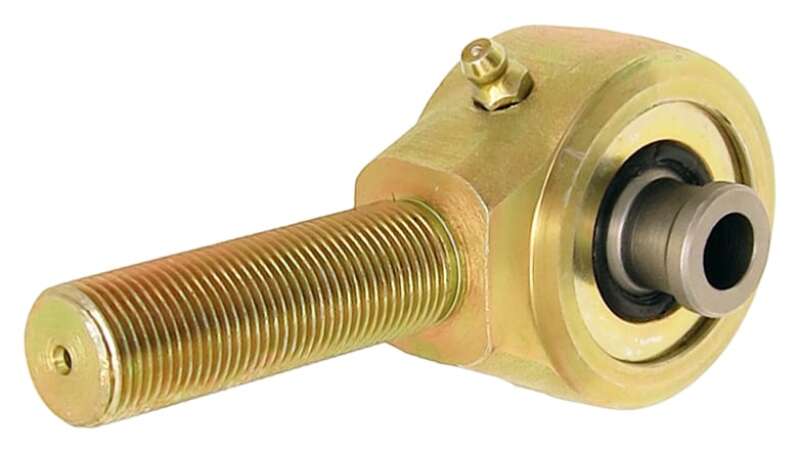

RockJock Johnny Joint Rod End 2 in 3/4 in. RH Thread 1.800 in. x .630 in. Incl. Safety Washer

If you're building a custom suspension system or fabricating new control arms, this RockJock Johnny Joint rod end is a solid choice. It's designed to give you a full 40 degrees of unrestricted movement in any direction, which is significantly more than you'd get from a standard heim joint. That extra range of motion can make a big difference in how your suspension articulates, especially off-road.

What sets the Johnny Joint apart is its use of high-density urethane bushings around the inner ball. This not only helps cushion the ride but also provides a different feel compared to the metal-on-metal contact of a heim joint. The center ball itself is heat-treated and cross-drilled so you can easily lubricate it through the zerk fitting, keeping things moving smoothly. It's held together with heavy-duty, heat-treated washers and a snap ring, and this particular unit includes a safety washer for added security. You're getting 3/4 inch -16 right-hand threads on the shank, a 1.800 inch mounting width, and a .630 inch thru-bolt hole, all finished in a gold zinc plating.
