What is the main advantage of using RockJock RockNuts over traditional jam nuts?

RockJock RockNuts use a tapered collet design to bind the nut and bung together, creating a secure connection that eliminates the need for jam nuts. This prevents loosening that can occur with traditional jam nuts, especially in high-stress applications.

What size tubing is the included bung designed to be welded into?

The steel weld-in bung is designed to be inserted into tubing with a 1 1/2 inch outer diameter and a 0.188 inch wall thickness.

What is the thread size and direction of the nut included in this kit?

The kit includes a steel nut with a 1-inch diameter and a 14-thread-per-inch right-hand thread.

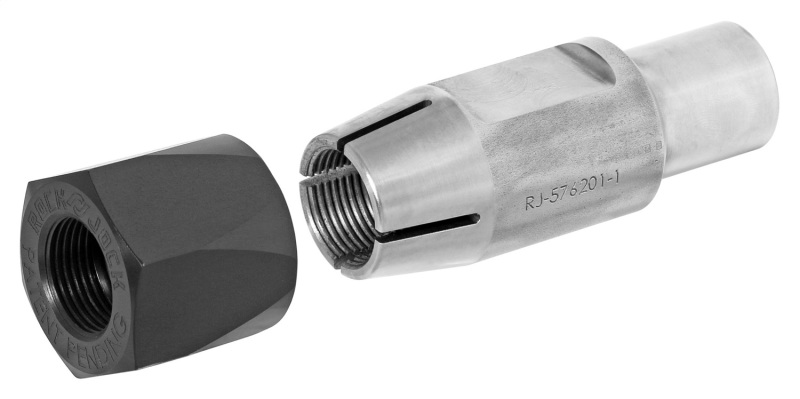

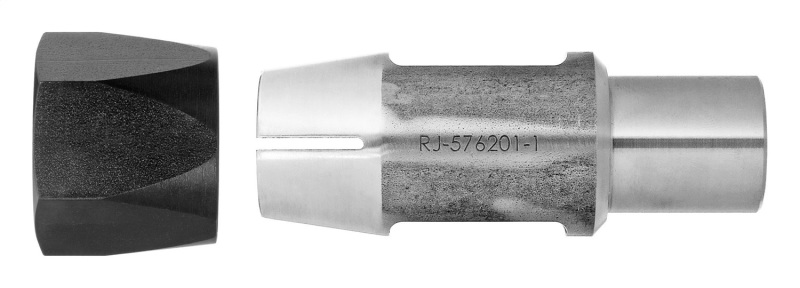

RockJock RockNut Kit Nut and Bung 1in RH Thread

1 / 6

Specifications

Brand: RockJock
Part #: RJ-576201-101
UPC: 810038156743

RockJock RockNut Kit Nut and Bung 1in RH Thread

Name: RockJock RockNut Kit Nut and Bung 1in RH Thread
Brand: RockJock
SKU: rockjock-rockjock-rocknut-kit-nut-and-bung-1in-rh-thread-t14-564533
Price: 134.14 USD
Availability: BackOrder

$134.14

On Backorder

Order now to reserve yours — we'll ship as soon as stock arrives. Full refund if we're unable to fulfill.

RockJock RockNut Kit includes a 1in RH thread nut and weld-in bung to eliminate jam nuts and secure suspension joints.

Key Features

This kit includes one 1-inch, 14 RH thread steel nut and one steel weld-in bung.
The nut features a black zinc plating for corrosion resistance.
The bung is made of raw, weldable steel.
Designed for use in 1 1/2 inch outer diameter tubing with a 0.188 inch wall thickness.

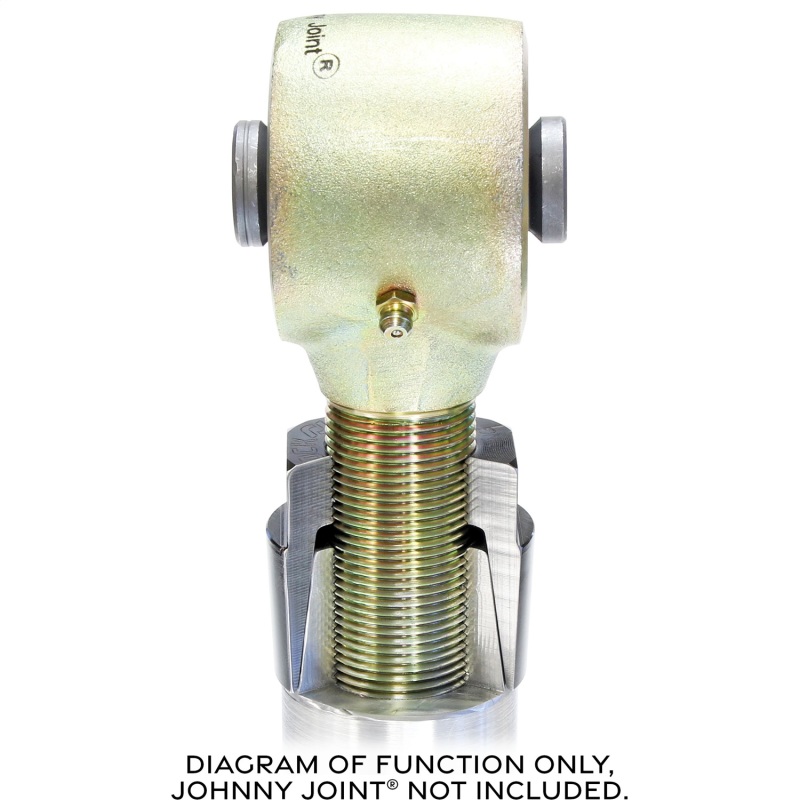

The tapered design binds the nut and bung together when tightened, eliminating the need for jam nuts.
Helps prevent suspension joints from binding and arms from being damaged by loose components.

⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more

Secure CheckoutFast Shipping631-982-0042

Product Details

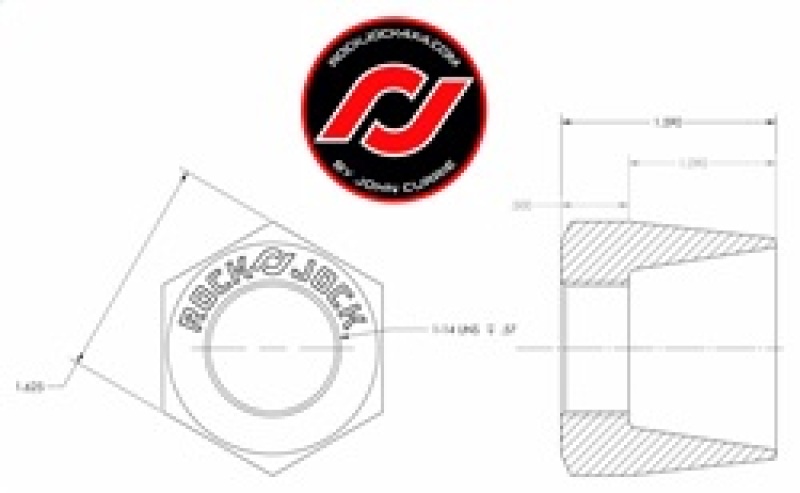

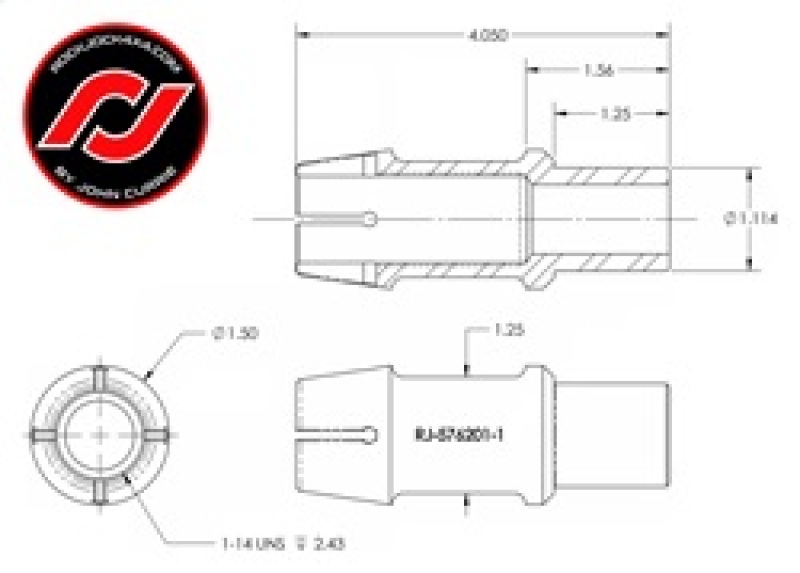

This RockJock RockNut kit gives you a steel nut with a 1-inch, 14-thread-per-inch right-hand thread and a steel weld-in bung. The nut has a female taper, and the bung is designed with a male taper that intersects with the nut's taper. This setup is intended for suspension fabricators who are working with 1 1/2-inch outer diameter tubing that has a 0.188-inch wall thickness.

The idea behind these RockNuts is to replace traditional jam nuts, which can loosen over time, especially in demanding off-road conditions like rock crawling or racing. When you tighten the nut onto the bung, the tapered surfaces bind together, creating a strong, locked connection. This not only keeps your suspension joints from binding up in their brackets but also prevents the arm and the joint from damaging each other due to looseness. The nut comes with a black zinc plating for corrosion resistance, while the bung is raw steel, ready for welding into your control arm tubing.
