SPC Performance XAXIS Rod End Ball Joint

SPC Performance is known for making well-built suspension components, and this XAXIS Rod End Ball Joint is a great example of their work. If you're building a custom suspension setup or working on a project where you need a lot of movement and precise control, this joint is designed to help you achieve that. It combines the benefits of a mono-ball joint with high misalignment inserts, giving you more angular freedom than standard bushings, while also offering better durability and less compliance than rubber or urethane options.

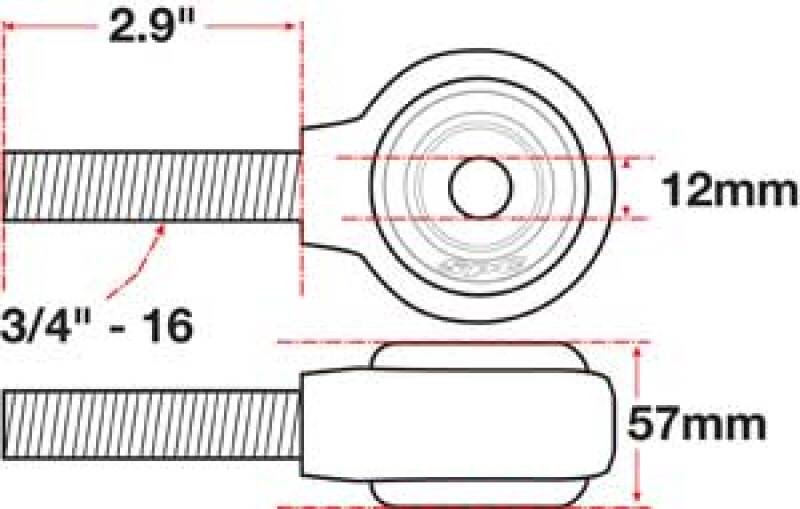

This assembly features forged steel alloy receivers and their xAxis sealed flex joints. The joint itself has a highly polished electroless nickel ball, sealed dust boots, and moly grease to keep things moving smoothly and protected from the elements. It's built with a RH 3/4"-16 thread size and is designed to accept a 12mm bolt, with a width of 57mm. You get a notable 36 degrees of articulation, and it uses a snap ring for secure retention and easier replacement down the line.
