What does this diaphragm do in my wastegate actuator?

The diaphragm is a critical component that separates the boost pressure chamber from the actuator arm. It moves in response to boost pressure, controlling the wastegate's position to regulate turbocharger speed and boost levels.

Can I use this diaphragm with other Turbosmart actuator models?

No, this diaphragm is specifically designed for the Turbosmart IWG75 single-port actuator models only. It is not compatible with the IWG75 Twin Port or IWGHP Actuator models.

How do I know if my wastegate diaphragm needs replacing?

Signs of a worn diaphragm include inconsistent boost pressure, difficulty holding boost, or a noticeable drop in performance. If your turbo isn't performing as it should, checking the diaphragm is a good first step.

Questions? Call Us:631-982-0042

M-F 8AM-4PM ET

Trusted Since 1957

Est. 1957

1 / 2

Specifications

Brand: Turbosmart
Part #: TS-0600-2001
UPC: 9329677013108

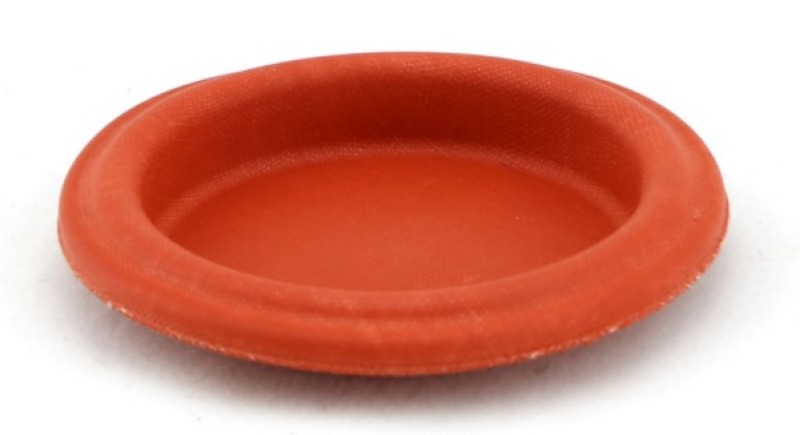

Turbosmart Diaphragm Used On IG75

Name: Turbosmart Diaphragm Used On IG75
Brand: Turbosmart
SKU: turbosmart-turbosmart-diaphragm-used-on-ig75-t14-4356612
Price: 39.59 USD
Availability: InStock

$39.59

Only 5 left in stock

Turbosmart Diaphragm Used On IG75. Replaces worn or damaged diaphragms in single-port IWG75 actuators.

Key Features

Replacement diaphragm for Turbosmart IWG75 single-port wastegate actuators.
Helps restore proper function and boost control to your turbo system.
Designed to replace worn-out or damaged diaphragms.
Ensures your wastegate operates correctly for consistent turbo performance.
Compatible only with Turbosmart IWG75 single-port actuators.

⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more

Secure CheckoutFast Shipping631-982-0042

About this part

Product Details

If you're working on a Turbosmart IWG75 wastegate actuator and notice it's not holding boost like it used to, a worn-out diaphragm could be the culprit. This replacement diaphragm is specifically made for the single-port IWG75 models, helping to restore proper function to your turbo system.

This part is designed to be a direct replacement for the original diaphragm in your Turbosmart IWG75 single-port actuator. Over time, these diaphragms can crack or degrade, leading to boost leaks and inconsistent performance. By swapping in a fresh one, you can ensure your wastegate operates correctly, maintaining the boost levels your turbocharger needs. It's a well-built piece from Turbosmart, known for their reliable turbo components.

Make sure this is the correct diaphragm for your actuator; it's only compatible with the single-port IWG75 models, not the twin-port or IWGHP versions. Having this part on hand can save you time and hassle if your wastegate starts acting up.
