What is the purpose of a bulkhead fitting?

A bulkhead fitting is designed to pass through a panel, like a firewall or fuel tank, creating a sealed connection point. One side connects to a hose or line, while the other side connects to a component or another fitting on the opposite side of the panel.

What does the -20AN size refer to?

The -20AN designation refers to the size of the male flare fitting. In the AN (Army-Navy) standard, the number indicates the diameter in sixteenths of an inch, so -20AN corresponds to a fitting with a 20/16ths (or 1.25 inch) outside diameter.

Does this fitting come with the bulkhead nut?

No, the bulkhead nut is sold separately. You will need to purchase the appropriate size bulkhead nut to properly install this fitting through a panel.

Questions? Call Us:631-982-0042

M-F 8AM-4PM ET

Trusted Since 1957

Est. 1957

1 / 2

Specifications

Brand: Vibrant
Part #: 10687
UPC: 690092176082

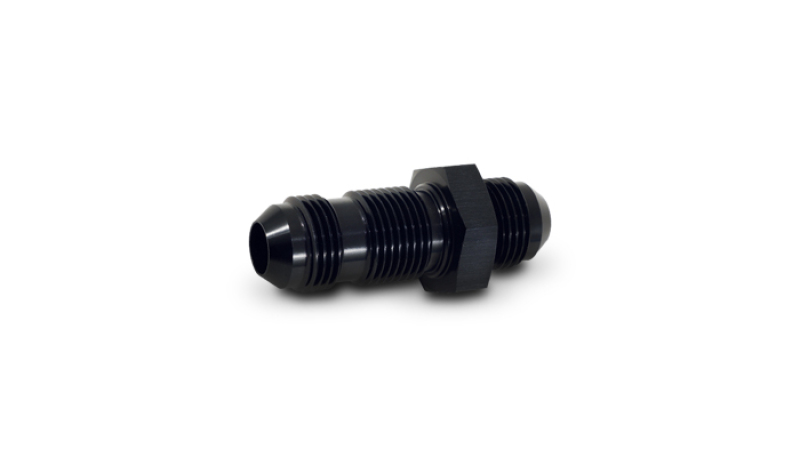

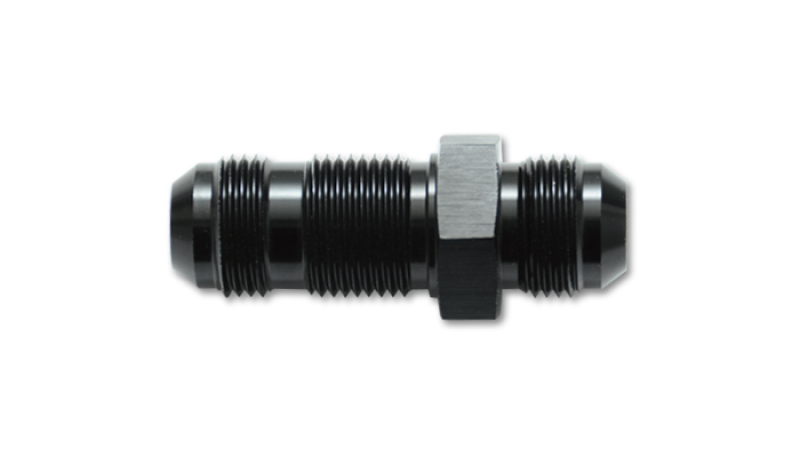

Vibrant -20AN Flare Straight Bulkhead Adapter Fitting - Aluminum

Name: Vibrant -20AN Flare Straight Bulkhead Adapter Fitting - Aluminum
Brand: Vibrant
SKU: vibrant-vibrant-20an-flare-straight-bulkhead-adapter-fitting-aluminum-t14-425645
Price: 43.00 USD
Availability: InStock

$43.00

Only 7 left in stock

Vibrant -20AN straight bulkhead adapter fitting. Made from lightweight 6061 aluminum for smooth flow and an anti-leak seal.

Key Features

Fits 2007-2014 Ford F-150.
Constructed from lightweight 6061 aluminum alloy.
Features a black anodized finish for durability and appearance.
Designed for smooth flow and an anti-leak seal.
Connects AN flare fittings to NPT threads through a bulkhead.
Includes a one-year limited warranty.

Secure CheckoutFast Shipping631-982-0042

About this part

Product Details

This straight bulkhead adapter from Vibrant Performance uses a -20AN flare on one end and connects to an NPT thread on the other, designed to pass through a panel or firewall. It's constructed from 6061 aluminum alloy, which keeps the fitting lightweight while still offering solid reliability for fuel or oil systems.

The anodized black finish not only looks good but also helps protect the aluminum. This adapter is made to provide a smooth flow path and an anti-leak seal, making assembly straightforward. It’s a popular choice for connecting components like oil pumps, fuel pumps, and fuel filters through bulkheads.

Keep in mind that the bulkhead nut is sold separately, so you'll need to account for that when ordering.
