What is the recommended torque for these T-bolt clamps?

The manufacturer recommends a torque specification of 50 inch-pounds for these T-bolt clamps. This ensures a secure fit without over-tightening.

What material is the clamp band made from?

The clamp band and floating bridge are constructed from 300-series stainless steel, offering good resistance to corrosion. The T-bolt, lock nut, and spring are made of zinc-plated steel.

Why is a spring-loaded clamp beneficial?

The spring-loaded design allows the clamp to automatically adjust its tension as the hose expands or contracts due to changes in temperature or pressure. This helps maintain a consistent, secure seal.

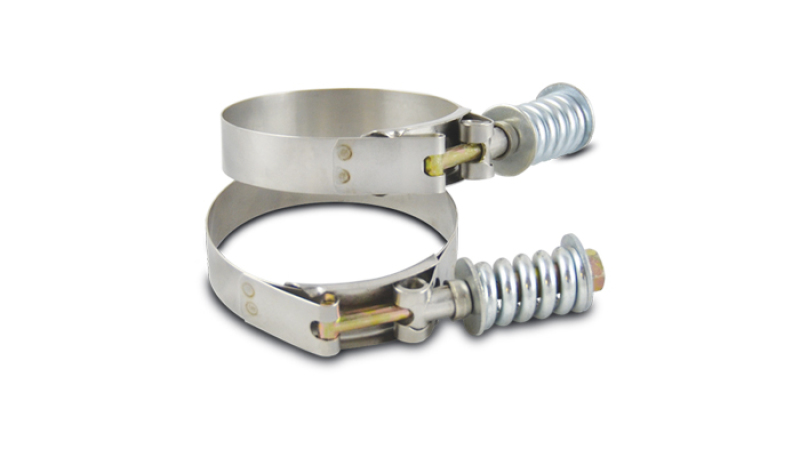

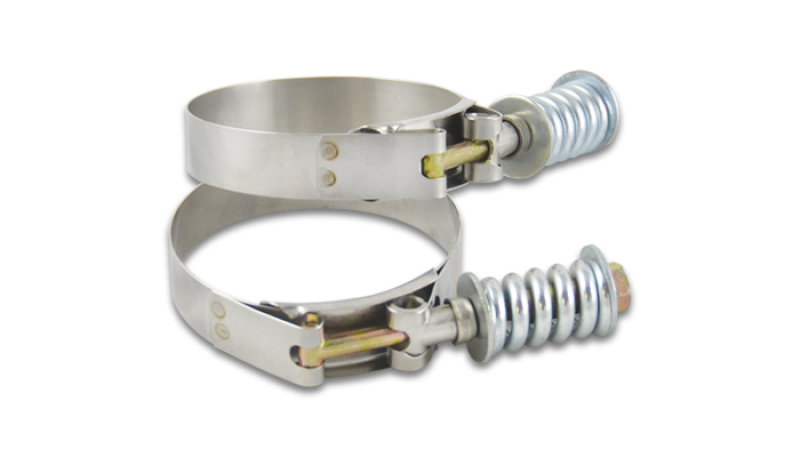

Vibrant T-Bolt Clamp 3.22-3.52in Stainless Steel 27830

Name: Vibrant SS T-Bolt Clamps Pack of 2 Size Range: 3.22in to 3.52in OD For use w/ 3in ID Coupling
Brand: Vibrant
SKU: vibrant-vibrant-ss-t-bolt-clamps-pack-of-2-size-range-3-22in-to-3-52in-od-for-us-t14-173534
Price: 22.00 USD
Availability: InStock

Vibrant SS T-Bolt Clamps Pack of 2 Size Range: 3.22in to 3.52in OD For use w/ 3in ID Coupling

$22.00

Only 3 left in stock

Vibrant SS T-Bolt Clamps (2-pack) fit 3.22"-3.52" OD hoses. They compensate for hose expansion/contraction under pressure.

Key Features

Fits 3.22" to 3.52" outer diameter hoses.
Spring-loaded design compensates for hose expansion and contraction.
300-series stainless steel clamp band and floating bridge resist corrosion.
Zinc-plated steel T-bolt, lock nut, and spring.
Smooth inner band helps prevent damage to the hose.
Suitable for high-boost applications.

Secure CheckoutFast Shipping631-982-0042

Product Details

Vibrant Performance is known for making well-built fabrication components. These spring-loaded T-bolt clamps are a great example, designed to keep a secure grip on your hoses even when they expand or contract due to heat or pressure changes. This pack includes two clamps, each designed to fit hoses with an outer diameter ranging from 3.22 inches to 3.52 inches, perfect for 3-inch inner diameter couplings.

What sets these apart is the spring-loaded design. It actively adjusts to maintain even tension, which is especially important in high-boost applications where hose pressure can fluctuate significantly. The clamp band and floating bridge are made from 300-series stainless steel for good corrosion resistance, while the T-bolt, lock nut, and spring are zinc-plated steel. The inner band is smooth to prevent damage to your hose.

For installation, Vibrant recommends a torque spec of 50 inch-pounds. These clamps are a solid option for anyone building or repairing custom intake or cooling systems where a reliable connection is critical.
