What material is this turbo inlet flange made from?

This flange is constructed entirely from 304 stainless steel. This material is chosen for its ability to withstand high temperatures without deforming, which is crucial in turbocharger applications.

Does this flange come with hardware?

This turbo inlet flange features tapped holes, meaning the threads are already in the flange itself. You will need to supply the appropriate bolts to attach it to your turbocharger, ensuring they are rated for high heat.

What is the purpose of the tapped holes?

The tapped holes allow you to directly thread mounting bolts into the flange, rather than needing nuts on the backside. This can simplify installation in tight spaces and provides a clean mounting solution for custom turbo setups.

Questions? Call Us:631-982-0042

M-F 8AM-4PM ET

Trusted Since 1957

Est. 1957

1 / 4

Specifications

Brand: Vibrant
Part #: 1431
UPC: 690092118303

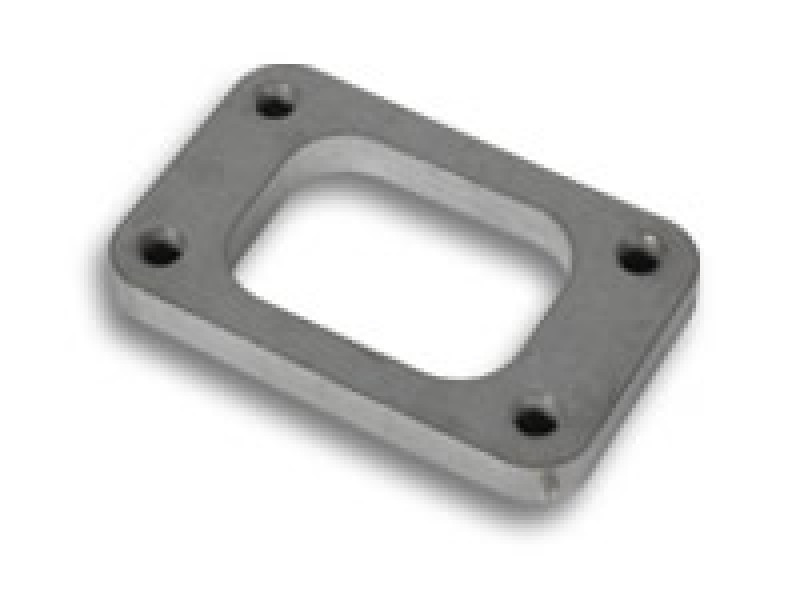

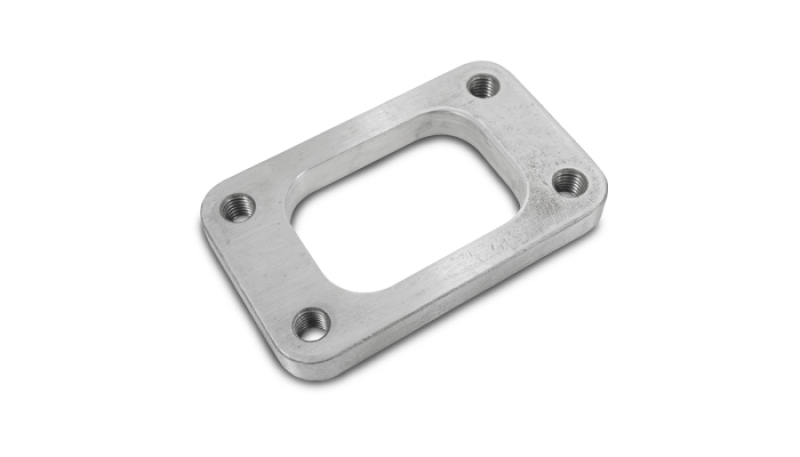

Vibrant T3/GT30R Turbo Inlet Flange T304 SS 1/2in Thick (Tapped Holes)

Name: Vibrant T3/GT30R Turbo Inlet Flange T304 SS 1/2in Thick (Tapped Holes)
Brand: Vibrant
SKU: vibrant-vibrant-t3-gt30r-turbo-inlet-flange-t304-ss-1-2in-thick-tapped-holes-t14-4310856
Price: 49.99 USD
Availability: InStock

$49.99

Only 6 left in stock

Vibrant T3/GT30R Turbo Inlet Flange T304 SS 1/2in Thick (Tapped Holes). A well-built flange for custom turbo setups.

Key Features

Fits Vibrant T3/GT30R turbochargers.
Constructed from 304 stainless steel for heat resistance.
1/2 inch thick material helps prevent warping under high heat.
Features tapped holes for easier installation.
Bolt pattern measures 3.375 in. x 1.75 in.
Port dimensions are 46.5mm high x 63.5mm wide.

This turbo inlet flange is designed for generic T3/T4 and Turbonetics T3 turbine inlets, and specifically for T3/GT30R applications. Always verify dimensions against your specific turbocharger.

Secure CheckoutFast Shipping631-982-0042

About this part

Product Details

If you're building a custom turbo setup for your vehicle, this Vibrant Performance T3/GT30R turbo inlet flange is a solid piece to have on hand. It's made from 304 stainless steel, which is a good choice for handling the high heat around the turbocharger without warping.

This flange is 1/2 inch thick, giving it extra rigidity, and it comes with tapped holes, making it easier to bolt directly to your turbocharger. It's designed for generic T3/T4 and Turbonetics T3 turbine inlets, so it should fit a wide range of common turbochargers used in custom builds. The bolt pattern measures 3.375 inches by 1.75 inches, and the port dimensions are 46.5mm high by 63.5mm wide, which is suitable for many T3/GT30R applications.
