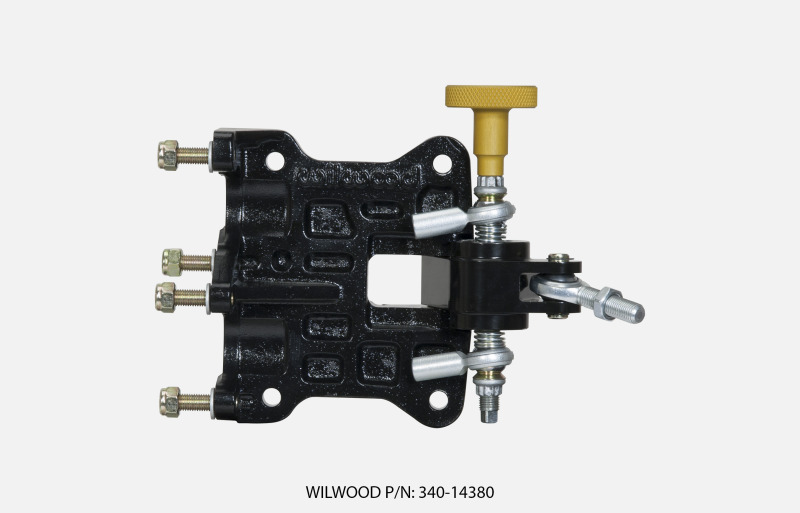

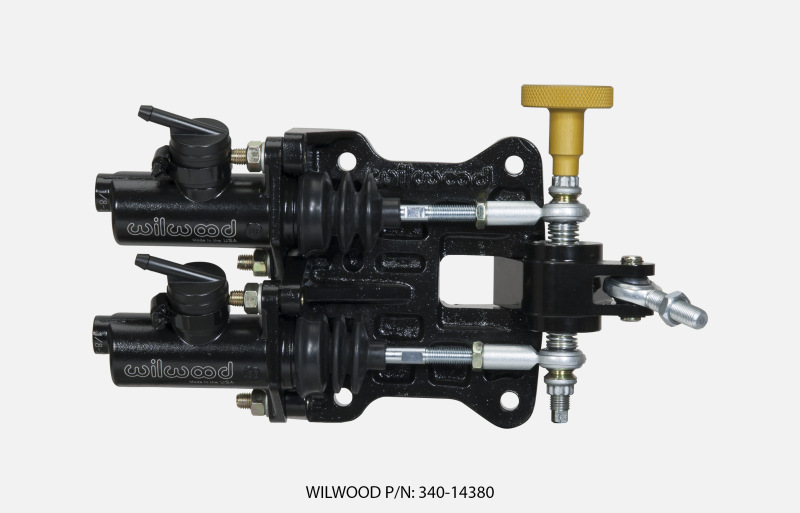

Wilwood 60 Degree MC Mount & Trubar Assembly

This Wilwood Tru-Bar assembly is designed for race applications like Dirt Modifieds, Champ Cars, and Sprint Cars where you need to mount master cylinders remotely from the pedal. It positions the master cylinders at a 60-degree angle from the pedal base, which is perfect for using remote fluid reservoirs in tight spaces.

The assembly features a machined billet pivot arm with a high leverage ratio of 1.48:1, meaning it multiplies your input force. This, combined with the included adjustment knob, allows for quick on-track brake bias adjustments. It uses a fixed trunnion bearing in the pedal arm and spherical rod-end bearings for the pushrod connections, offering precise control and fine-tuning of your brake bias, especially with twin master cylinder systems and matching calipers. The larger diameter 7/16-20 bar allows for faster adjustments and has a 3/8” end to connect your remote adjuster cable.
