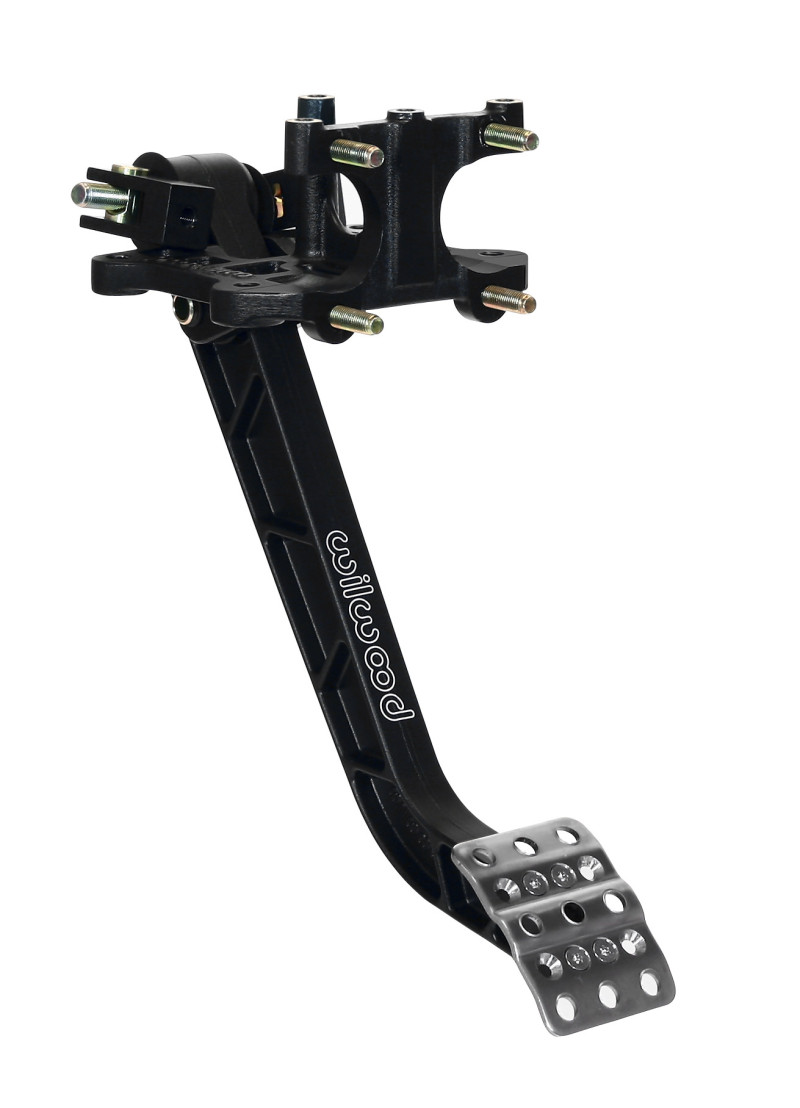

Wilwood Adjustable Brake Pedal - Dual MC - Rev. Swing Mount - 6.25:1

Starting with a high-strength reinforced I-beam style forged 6.25:1 ratio pedal arm, this Wilwood pedal assembly is built for serious braking control. It's designed to mount two single outlet brake master cylinders in a reverse position, fitting neatly inside the firewall. The lightweight aluminum frame keeps overall weight down, which is always a plus when you're working on a build.

You can fine-tune the pedal's position for your comfort or to ensure clearance with the non-skid waffled pedal pad, which adjusts side-to-side. The balance bar adjustment is precise, with a positive detent that clicks every full turn, so you always know exactly where you've set it. Plus, the pin and clevis pushrod system allows for a wide range of motion without binding, ensuring smooth operation through the entire pedal stroke. The balance bar can be locked down with the included jam nut, or you can add an optional remote cable for quick adjustments, especially handy if you're hitting the track.

This assembly accepts any Wilwood vertical mount flange single outlet master cylinders, which you'll need to order separately based on your preferred style and bore size.
