What master cylinders are compatible with this pedal assembly?

This pedal assembly accepts any Wilwood vertical mount flange single outlet master cylinders. You will need to select the appropriate style and bore size for your specific braking system needs, as these are sold separately.

How is the pedal position adjusted?

The pedal pads can be laterally adjusted for driver preference or clearance. The balance bar also allows for fine-tuning of brake bias, with a positive detent stop every full turn to maintain your chosen setting.

Does this pedal assembly come with master cylinders?

No, the master cylinders are not included with this pedal assembly. They must be purchased separately, allowing you to choose the specific bore size and style required for your application.

Wilwood Adjustable Dual Pedal Assembly 340-11299

Name: Wilwood Adjustable Dual Pedal - Brake / Clutch - Rev. Swing Mount - 6.25:1
Brand: Wilwood
SKU: wilwood-wilwood-adjustable-dual-pedal-brake-clutch-rev-swing-mount-6-25-1-t14-138738
Price: 301.36 USD
Availability: InStock

Wilwood Adjustable Dual Pedal - Brake / Clutch - Rev. Swing Mount - 6.25:1

$301.36

Only 5 left in stock

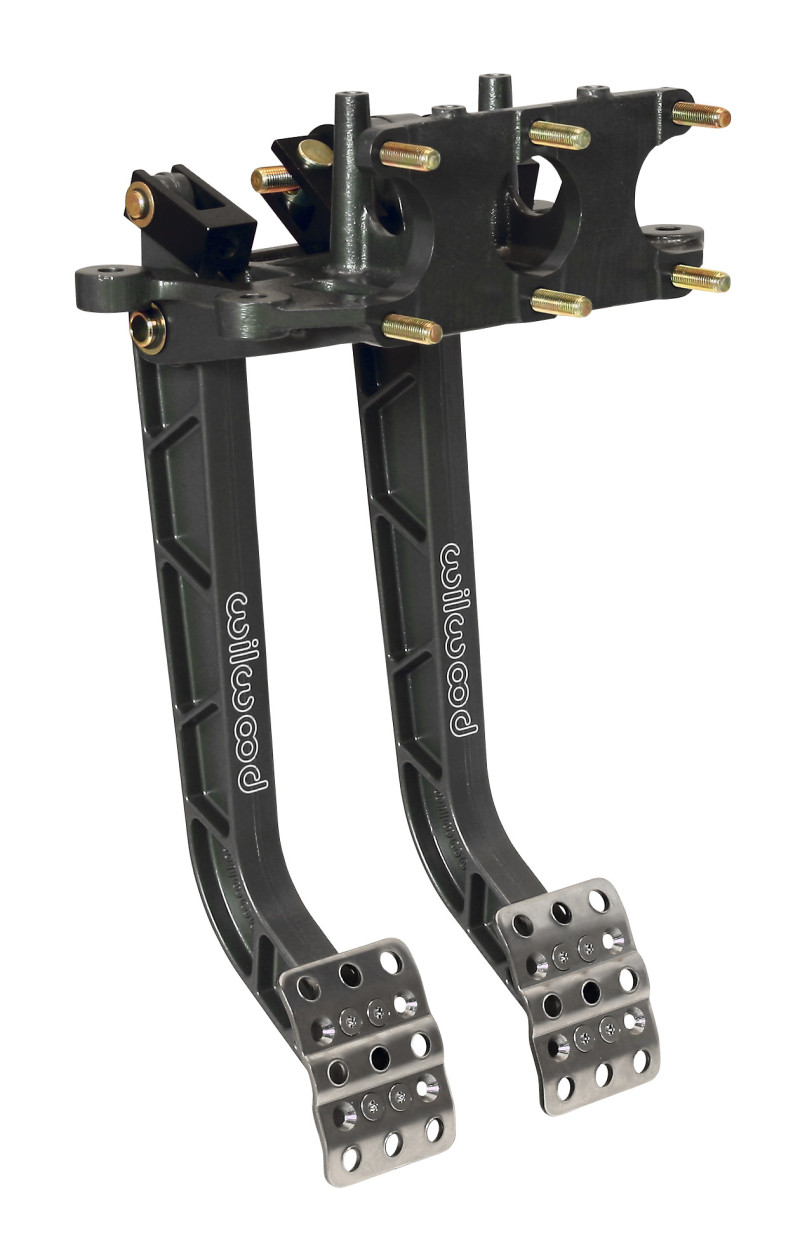

Wilwood Adjustable Dual Pedal Assembly with 6.25:1 ratio forged pedal arms and lightweight aluminum frame.

Key Features

Features high-strength, I-beam style forged 6.25:1 ratio pedal arms for a responsive feel.
Lightweight aluminum frame construction helps reduce overall vehicle weight.
Non-skid waffled pedal pads offer grip and can be laterally adjusted for driver preference.
Balance bar incorporates a positive detent stop every full turn for precise adjustment retention.
Pin and clevis pushrod attachment system allows for bind-free operation through the full range of travel.
Accepts Wilwood vertical mount flange single outlet master cylinders (sold separately).

Secure CheckoutFast Shipping631-982-0042

Product Details

With its high-strength, I-beam style forged 6.25:1 ratio pedal arms, this Wilwood adjustable dual pedal assembly is built for serious performance builds. It neatly combines your brake and clutch pedals into a single, reverse-swing mount unit, positioning the master cylinders inside the firewall. This setup is ideal for custom builds where space is tight or a specific pedal feel is desired.

The frame is constructed from lightweight aluminum, keeping overall weight down. You can fine-tune the pedal feel and driver comfort with laterally adjustable, non-skid waffled pedal pads. The balance bar adjustment system offers a positive detent stop every full turn, helping you maintain your desired settings and providing clear driver feedback. Its pin and clevis pushrod attachment system ensures bind-free operation throughout the entire range of travel, even with significant suspension articulation.

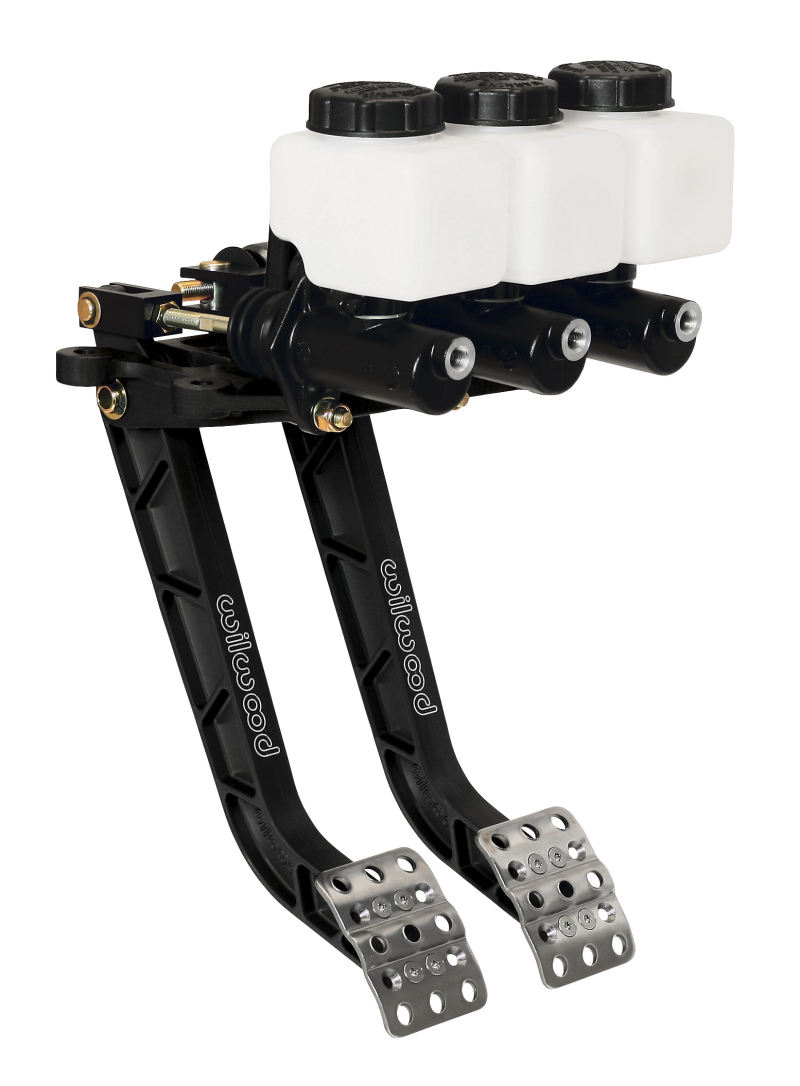

This assembly accepts any Wilwood vertical mount flange single outlet master cylinders, which are sold separately. You can lock the balance bar in place with the included jam nut, or opt for an optional remote cable for quick adjustments, especially useful for on-track tuning.
