What is the advantage of a tandem master cylinder?

A tandem master cylinder has two separate hydraulic circuits, one for the front brakes and one for the rear. This design provides a safety backup; if one circuit develops a leak, the other can still provide some braking power.

What does the combination proportioning valve do?

The combination proportioning valve allows you to adjust the brake bias between the front and rear wheels. This is crucial for custom brake setups to ensure balanced braking and prevent premature wheel lock-up, while also simplifying plumbing by integrating the valve with the master cylinder.

What is included in this kit besides the master cylinder and valve?

This kit comes with a left-hand mounting bracket, stainless steel fluid tubes with preinstalled tube nuts, and stainless steel button head fasteners, providing a comprehensive package for installation.

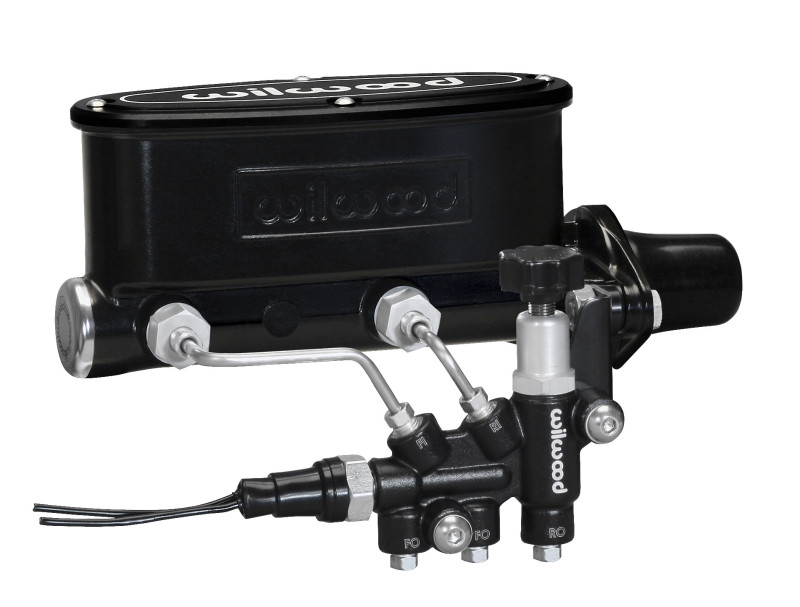

Wilwood 1 1/8in Black Tandem M/C Kit w/ Bracket & Prop Valve

Name: Wilwood HV Tandem M/C Kit w L/H Bracket & Prop Valve - 1 1/8in Bore Black
Brand: Wilwood
SKU: wilwood-wilwood-hv-tandem-m-c-kit-w-l-h-bracket-prop-valve-1-1-8in-bore-black-t14-138835
Price: 441.10 USD
Availability: InStock

Wilwood HV Tandem M/C Kit w L/H Bracket & Prop Valve - 1 1/8in Bore Black

$441.10

Only 6 left in stock

Wilwood HV Tandem M/C Kit w/ Bracket & Prop Valve - 1 1/8in Bore Black. Simplifies custom brake system setups with integrated fluid control.

Key Features

Fits many OE mount patterns including Chrysler, Corvette, GM, and Ford Mustang.
1 1/8 inch bore size master cylinder for effective hydraulic pressure.
Tandem chamber design for improved brake pressure actuation and fluid control.
Combination proportioning valve simplifies custom brake system adjustments and wiring.
Black E-coat finish on the valve and bracket for durability and a performance look.
Includes left-hand mounting bracket, stainless steel fluid tubes, and hardware for a complete installation.

Secure CheckoutFast Shipping631-982-0042

Product Details

Wilwood is well-known for their performance brake components, and this HV Tandem Master Cylinder Kit is a prime example of their practical approach to custom brake builds. This kit bundles together a tandem master cylinder, a combination proportioning valve, a left-hand mounting bracket, fluid tubes, and all the necessary hardware. It's designed to streamline the process of upgrading or customizing your vehicle's braking system, offering a clean and integrated solution for actuation and fluid control.

The tandem master cylinder itself features a slotted flange that makes it a straightforward bolt-on for many common OE mounting patterns, including those found on Chrysler, Corvette, GM, and Ford Mustang applications. You can use this with either manual or power brake setups. This particular kit includes a 1 1/8-inch bore size, which is suitable for a wide range of applications, and it comes in a durable black E-coat finish that looks sharp and holds up well. The included combination proportioning valve is a key part of this kit, simplifying adjustments and wiring for custom brake systems by maintaining full isolation between the front and rear fluid circuits.

Installation is made easier with precision-bent stainless steel fluid tubes, complete with preinstalled plated steel tube nuts, connecting the proportioning valve and master cylinder. The kit also uses stainless steel button head fasteners for a clean look and rust-free performance over time. Once everything is bolted up, you just need to connect the fluid lines, bleed the system, and you're ready to go.
