Wilwood HV Tandem M/C Kit w L/H Bracket & Prop Valve - 15/16in Bore Ball Burnished-W/Pushrod

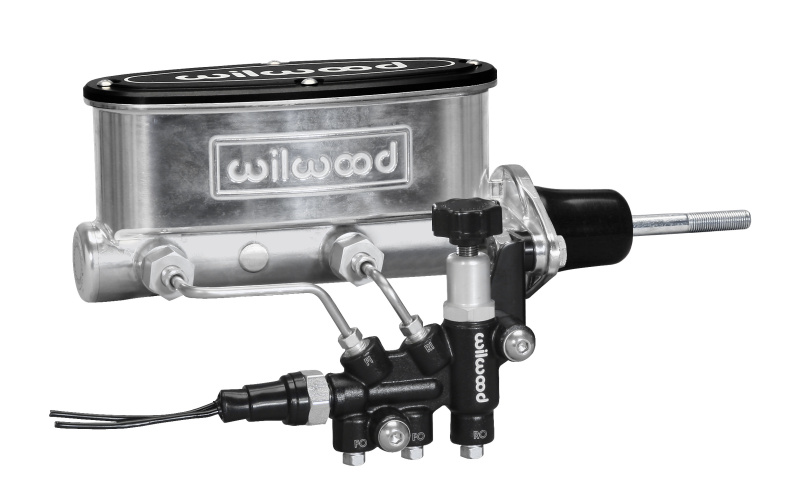

This is the Wilwood HV Tandem Master Cylinder Kit, featuring a 15/16-inch bore and a ball-burnished finish, designed to simplify custom brake system setups. It bundles together the popular aluminum tandem chamber master cylinder with a combination proportioning valve, a left-hand mounting bracket, fluid tubes, and all necessary hardware. This kit is a well-built solution for anyone looking to upgrade or build a custom braking system, offering a clean and straightforward way to manage brake pressure and fluid control.

The tandem master cylinder is a key component for modern braking systems, ensuring that if one circuit fails, the other can still provide some stopping power. Wilwood's design includes a slotted flange that makes it a direct bolt-on for many common OE mounting patterns, including those found on Chrysler, Corvette, GM, and Ford Mustang applications. This means installation is often as simple as bolting it into the existing location, whether you're working with a manual or power brake setup. The included combination proportioning valve is specifically designed to work with this master cylinder, allowing for easy adjustments to brake bias between the front and rear wheels while maintaining full isolation between the fluid circuits. Both the valve and bracket come with a black E-coat finish for durability and a clean look.

Installation is made even easier with the precision-bent stainless steel fluid tubes, which come with pre-installed plated steel tube nuts. These connect the proportioning valve directly to the master cylinder, creating a neat and secure fluid path. The kit also includes stainless steel button head fasteners for a clean, rust-free assembly that will hold up over time. Once everything is connected and the system is bled, you'll have a significantly improved and more adjustable braking system.
