Specifications
- Brand
- Wilwood
- Part #
- 260-14244-P
- UPC
- 889545078183

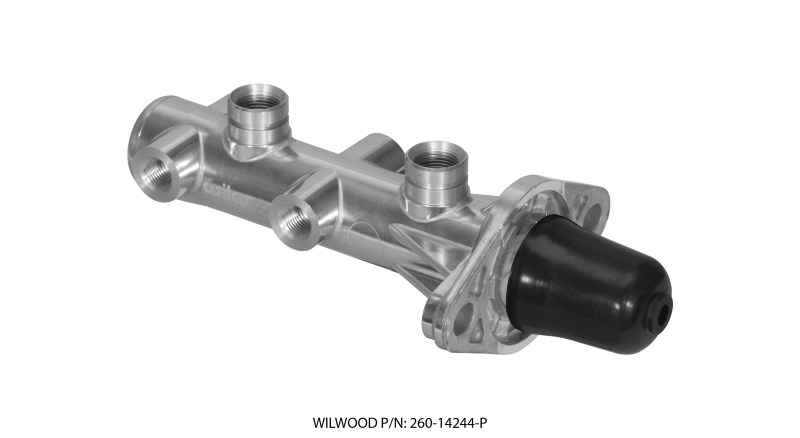

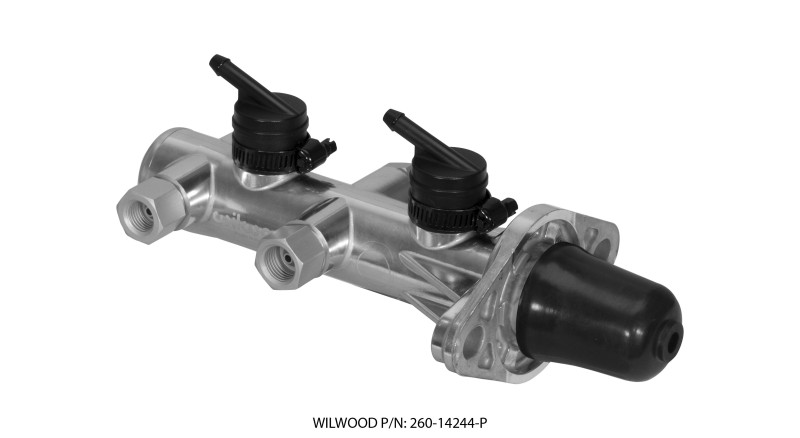

Wilwood Tandem Remote Master Cylinder - 1 1/8in Bore Ball Burnished
$329.32
Order now to reserve yours — we'll ship as soon as stock arrives. Full refund if we're unable to fulfill.
Wilwood Tandem Remote Master Cylinder - 1 1/8in Bore Ball Burnished. Machined from die-cast aluminum, this master cylinder is a lightweight upgrade for power brake systems.
Key Features
- This product includes the Wilwood tandem remote master cylinder with a 1 1/8 inch bore and ball burnished finish.
- The 1 1/8 inch bore is intended for power brake applications, including vacuum or hydraulic assist systems.
- Mount flanges fit common domestic cars and trucks from the mid-1960s to present, with measurements from 3.22 to 3.40 inches.
- Fluid outlet ports are located on both sides of the bore for flexible line routing.
- The master cylinder has a stroke set at 1.12 inches and a 2:1 volume ratio between the primary and secondary chambers.
- Machined from high-pressure die castings, each master cylinder weighs only 3 pounds, offering significant weight savings over cast iron units.
Product Details
This Wilwood tandem remote master cylinder comes with a 1 1/8 inch bore and a ball burnished finish. It's designed for use with power brake systems, whether they're vacuum or hydraulic assist. The mount flanges fit common domestic cars and trucks from the mid-1960s to present, with fluid outlet ports on both sides of the bore.
Machined from high-pressure die castings, this master cylinder is notably lightweight, weighing in at just 3 pounds. That's about a 75% weight savings compared to many cast iron OE master cylinders. The internal design features a stroke set at 1.12 inches and a 2:1 volume ratio between the primary and secondary chambers, ensuring consistent braking performance.
Wilwood also offers a combination proportioning valve kit (PN 260-14248) with brackets and stainless lines that work well with this master cylinder if you're looking to complete a system upgrade.
Specifications
- Brand
- Wilwood
- Manufacturer Part #
- 260-14244-P
- UPC
- 889545078183
