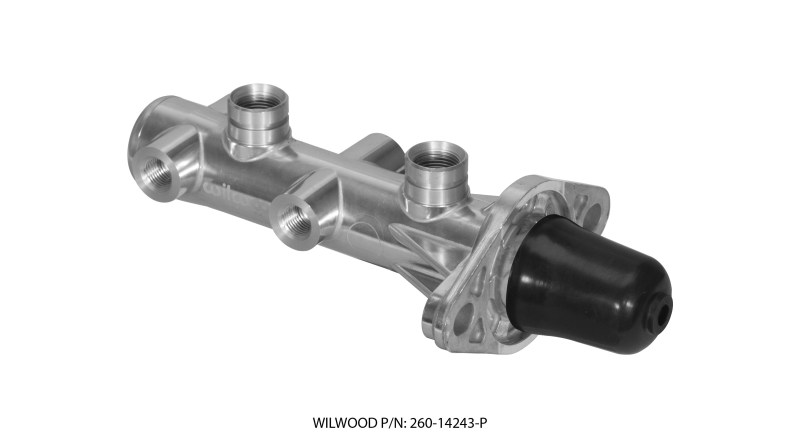

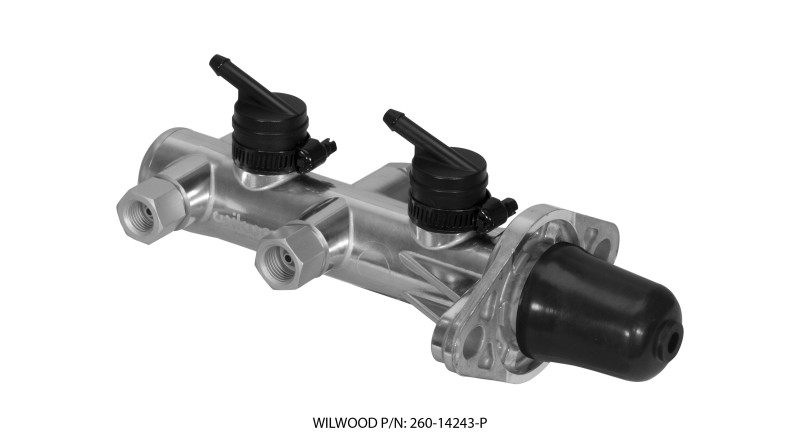

Wilwood Tandem Remote Master Cylinder - 1in Bore Ball Burnished

This is a Wilwood Tandem Remote Master Cylinder with a 1-inch bore and a ball burnished finish. It's designed to work with most domestic cars and trucks made from the mid-1960s to the present day. A master cylinder is crucial for your braking system; it converts the force you apply to the brake pedal into hydraulic pressure that pushes your brake pads against the rotors, slowing your vehicle down. This tandem master cylinder has two separate fluid chambers, meaning if one circuit has a leak, the other can still provide some braking power, adding a layer of safety.

This particular master cylinder is machined from high-pressure die castings, making it a lightweight component at only 3lbs, which is about 75% lighter than typical cast iron master cylinders. The 1-inch bore size is suitable for both manual and power-assisted brake systems. It features fluid outlet ports on both sides, offering flexibility during installation, and has a fixed stroke of 1.12 inches with a 2:1 volume ratio between the primary and secondary chambers. The mounting flange is designed to fit common measurements between 3.22 and 3.40 inches.

If you're looking to upgrade your braking system, Wilwood also offers a combination proportioning valve kit (PN 260-14248) that includes brackets and stainless steel lines specifically designed to work with this master cylinder.
