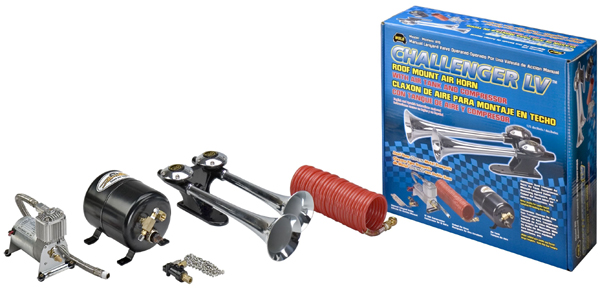

Wolo Challenger LV Deluxe Roof Mounted Horn

• High pressure roof mounted
  air horn

• Powered by an on-board
  air system

• Produces an ultra-powerful,
  big rig alerting sound

• Controlled by a heavy-duty
  manual lanyard valve

• Horns base is painted
  black enamel

• Trumpets have a bright
  chrome finish

• Easy to install with a
  flexible inlet hose and
  brass fittings

• Comes with a piece on-board
  high pressure air system consisting
  of a 2� liter steel air storage tank,
  a built-in pressure switch and a
  heavy-duty high-pressure compressor

• Compressor motor is carefully balanced

• Mounting bracket has rubber bushings,
  to virtually eliminate all vibration

• 20 ft coiled hose with brass fittings is
  included to inflate shocks, rafts and
  other applications
  (NOTE: air system is not designed to inflate
  applications requiring a large volume such as
  vehicle tires)

• Kit includes wire, horn switch, high-pressure hose,
  flexible inlet hose, lanyard valve, stainless steel
  mounting hardware, and a rubber gasket for a
  watertight installation, as well as instruction

• Click on sound icon to hear a sample:
  (Demonstrates sound, not loudness)





Specifications:

• 125 Decibels

• 310/380 Hz (Low Range)

• Horn size: 17"(L) x 7"(W) x 5"(H)

• Horn output with 90/110 psi: 125 db

• Compressor: 12-volt, 1.38 cfm

• Compressor current: 10 amp

• Compressor size: 6-1/8"(L) x 3�"(W) x 5-1/8"(H)

• Tank: Steel 2� liter

• Tank size: 9"(L) x 5"(W) x 5�"(H)

• Tank pressure switch: 90-on/110-off psi

• Hose type: 1/4" O.D.
