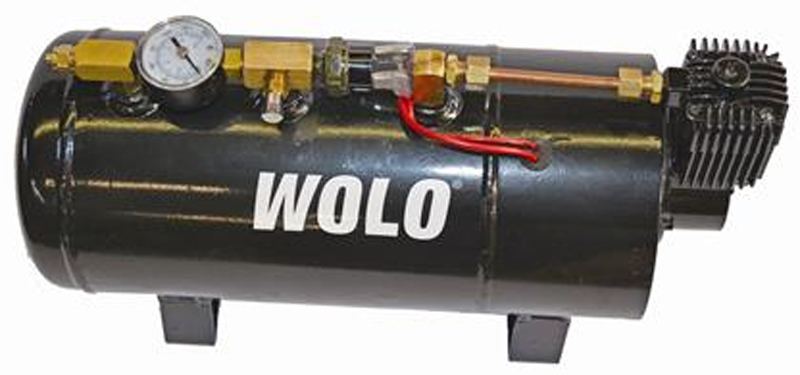

Wolo Sherman All-In-One 1 Gallon Tank & Compressor

• Sherman All-In-One
  Tank & Compressor

• Complete high-pressure
  on-board air system

• Compact one-piece design

• 2 steel mounting brackets
  are welded to the tank

• Easier to install than other
  on-board air systems

• Heavy-duty one gallon tank

• Painted black to prevent
  rust and corrosion

• Heavy-duty 12-volt motor is
  balanced to precision and is hidden
  inside the tank�s housing

• Cooling fins allow the compressor
  to operate at a lower temperature,
  preventing overheating

• Built-in pressure switch, pressure gauge
  and quality brass fittings





Compressor Specifications:

• Voltage: 12

• Current: 10.5 amps at peak

• CFM: 1.03

• In-line fuse holder with
  20 amp fuse provided

• Duty Cycle: 10% @ 100 psi

• Pump has an air filter

• Oil free

• Permanent magnet motor
  is gearless with thermo protection





Tank Specifications:

• 1 Gallon

• Welded steel brackets

• Pressure switch:
  - 80 psi on
  - 120 psi off

• Size: 14�" (L) x 5�" (W) x 8�" (H)
