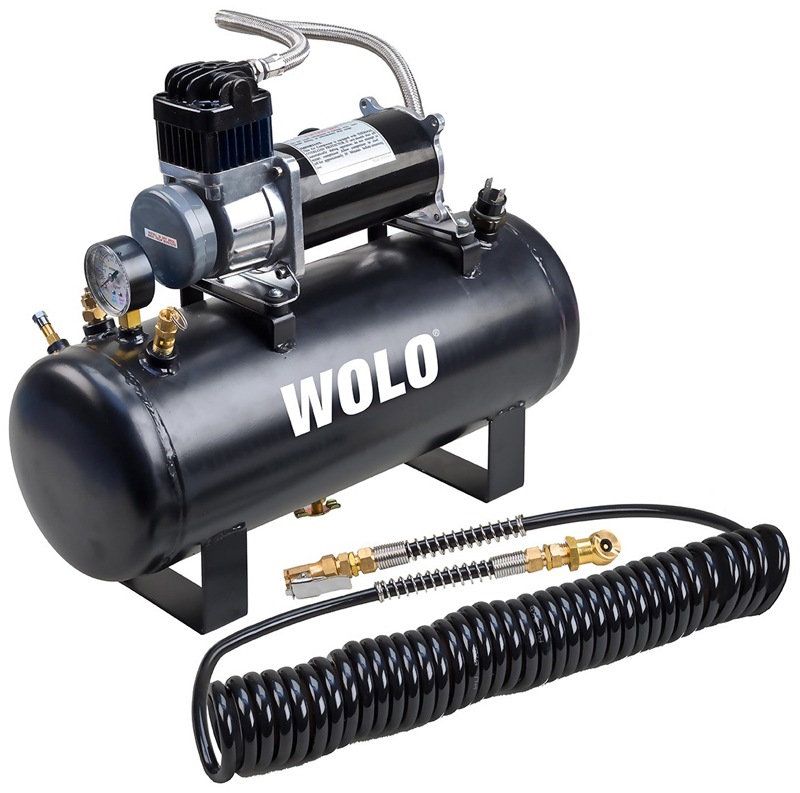

Wolo Tornado 2� Gallon Steel Tank & Compressor

• Wolo Tornado 2� Gallon Tank
  & Compressor

• Ideal for applications that require
  large volumes of high-pressure air,
  such as train air horns, air-locking differential,
  or to power light-duty pneumatic tools

• Use the coiled filler hose with brass
  fittings provided, to fill shocks, rafts
  and sporting equipment

• Equipped with extended length
  stainless steel high-pressure hose,
  allowing the compressor to be separated
  from the tank for surface mounting

• Complete on-board air system includes
  everything necessary for a professional installation

• 2� Gallon steel tank is painted black
  to prevent rust and corrosion

• Steel mounting brackets that are
  welded to the tank

• Tank comes with a built-in pressure switch,
  manual water drain, pressure gauge,
  pressure relief valve and brass fittings

• Pump�s cylinder and head have been designed
  with cooling fins that allows the compressor to
  have a 33% @ 100 psi duty cycle

• Heavy-duty 12-volt motor

• Heavy rubber bushing mounted into the base
  to virtually eliminating all vibration

• Kit Includes:
  - All mounting hardware
  - 10 ft. of flexible high-pressure hose
  - 20 ft. coiled filler hose with brass fittings
  - Instruction in English & Spanish
    View Installation instructions



Compressor Specifications:

• 12-Volt

• Current: 21 amps at peak

• CFM: 2.55

• In-line fuse holder with
  25 amp fuse provided

• Permanent magnetic motor
  that is gearless with thermo protection

• Oil-less maintenance free design

• High performance piston ring

• Moisture & dust resistant

• Painted aluminum alloy cylinder

• Mounting base has rubber vibration bushings

• Stainless steel braided hose with in-line check valve

• Washable air filter

• Size: L 10�" x W 3�" x H 6�"



Tank Specifications:

• 2.5-Gallon

• Welded steel mounting brackets

• Petcock water drain

• Pressure switch 80 psi.
  auto-on / 120 psi. off

• Safety pressure relief valve
  rated at 150 psi.

• Pressure gauge

• Fitting all brass

• Compressor mounted on top of tank size:
  L 17�" x W 6�" x H 15�"

• Tank only size:
  L 17�" x W 6�" x H 8�"
