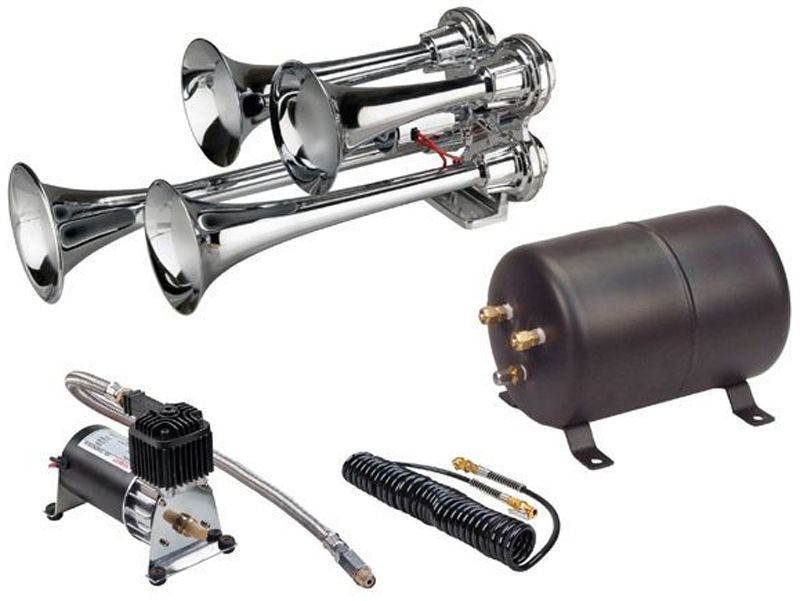

Wolo Philly Express Pro Train Horn Kit

• Four trumpets and mounting base
  are constructed of all metal

• Triple chrome plated

• Fit into engine compartments
  that can not fit a full size train horn

• Built into the horn’s base is
  a heavy-duty, chrome plated
  12/24-volt electric solenoid valve

• High-pressure air system

• Heavy-duty compact compressor

• 2.5-liter steel air storage tank

• Built-in pressure switch maintains
  110 psi of air pressure in the storage tank

• Compressor motor is carefully balanced

• Mounting bracket has heavy rubber bushings
  which virtually eliminates vibration

• Air hose fittings are made of brass
  to ensure a leak free installation

• Kit includes:
  - all necessary mounting hardware
  - 10 ft. of 1/4.in. O.D. nylon high-pressure hose
  - 20 ft. coiled filler hose with quality brass fittings

• Click on sound icon to hear a sample:
  (Demonstrates sound, not loudness)


Horn Specifications:

• 130 Decibels

• 290/421/548/648 Hz – Middle Range

• Horn size: 15" (L) x 5½" (W) x 6" (H)

• Horn output: 90/110 psi: 130 db

• Electric solenoid: 12-24 volts / 300 milliamps

• Hose type: 1/4 in. O.D.

• Air fittings: Brass

• Mounting hardware: Stainless steel

Compressor Specifications:

• Voltage: 12-volts

• Current: 21-amps at peak

• Duty-cycle: 33% @ 100 psi

• CFM: 2.55

• Compressor size:
  10¼" (L)  x 3½" (W) x ½" (H)

Tank Specifications:

• Tank capacity: 2.5 gallon

• Built in pressure switch:
  - On 80
  - Off 110 psi

• Safety pressure relief valve

• Pressure gauge

• Fitting size: All brass

• Petcock water drain

• Tank size: 17¼" (L) x 6½" (W) x 8¼" (H)

• Compressor Mount on Tank size:
  17¼" (L) x 6½" (W) x 15½" (H)
