How do I analyze the recorded data?

You can playback the recorded data directly on the tachometer for immediate review. For more in-depth analysis, you can download the high-resolution (100 Hz) data to your PC using the included DataPro analysis software via USB.

What ignition systems is this tachometer compatible with?

It is compatible with 0.5 - 6 pulse ignition signals, supporting 1-12 cylinder engines. This includes compatibility with points, electronic, and most 12V high-performance racing ignitions.

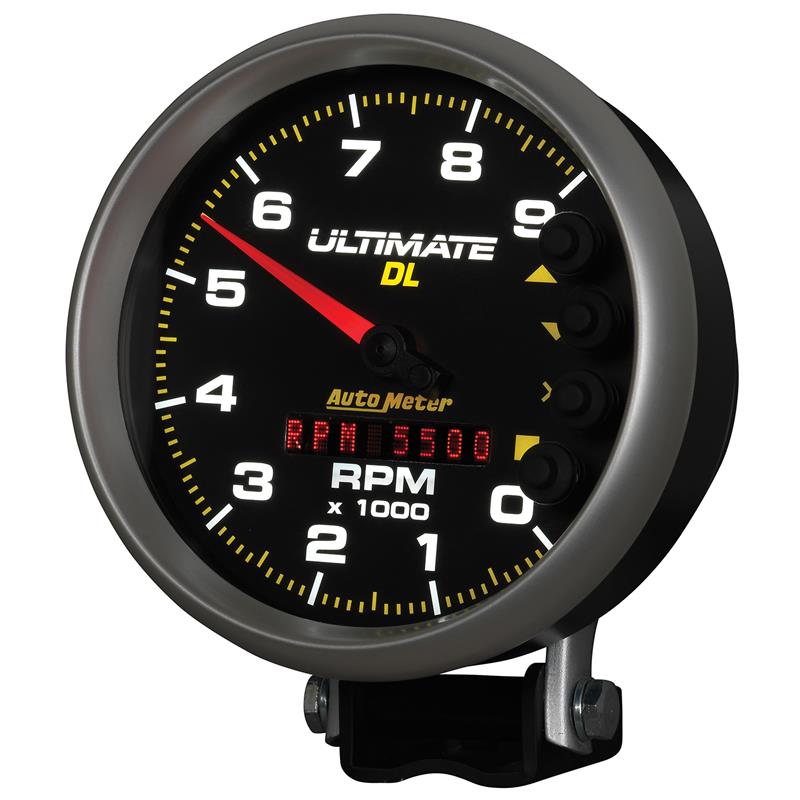

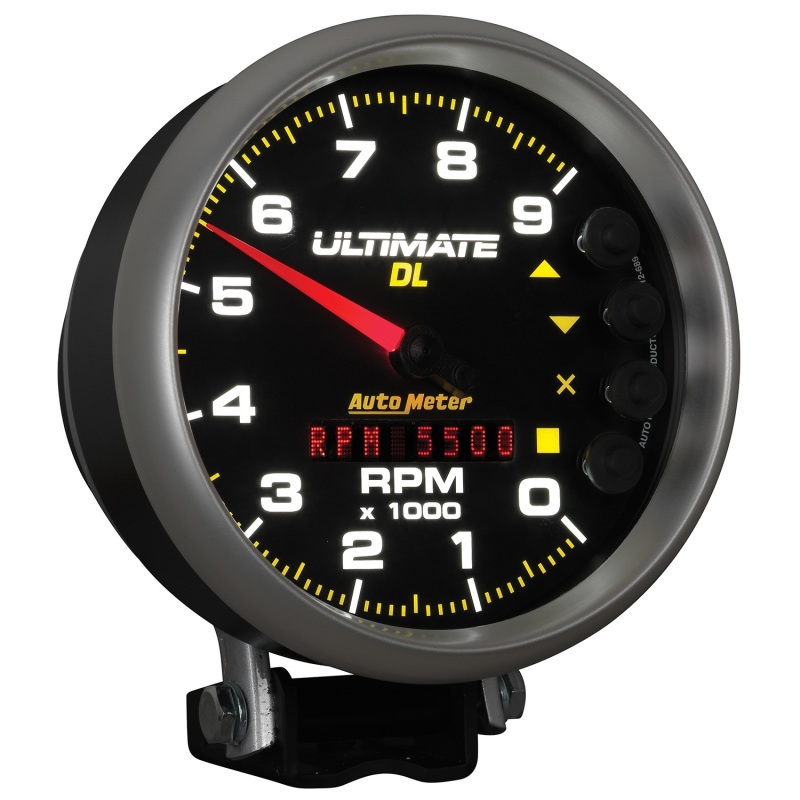

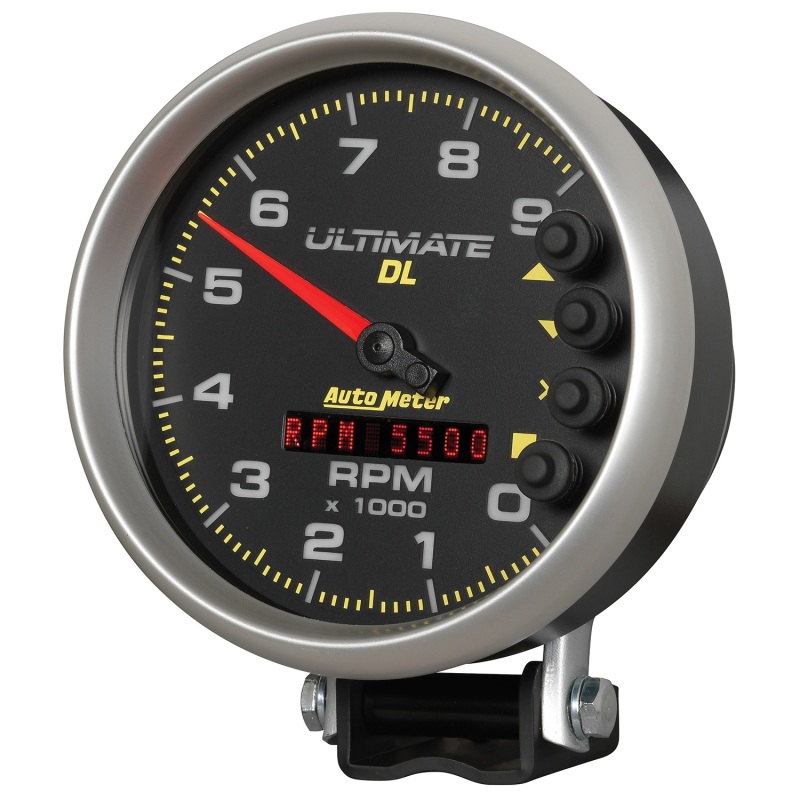

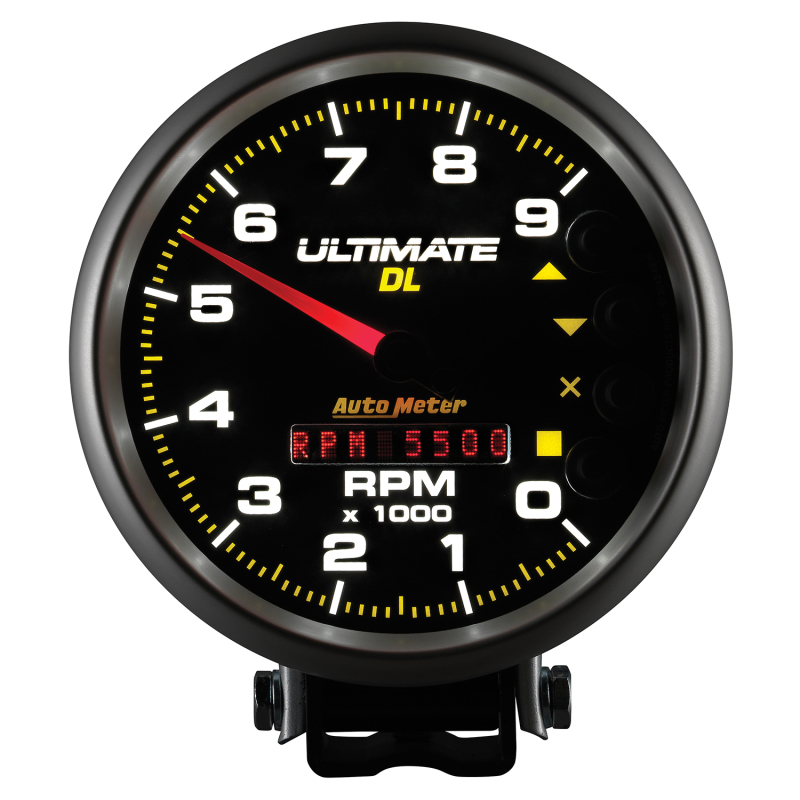

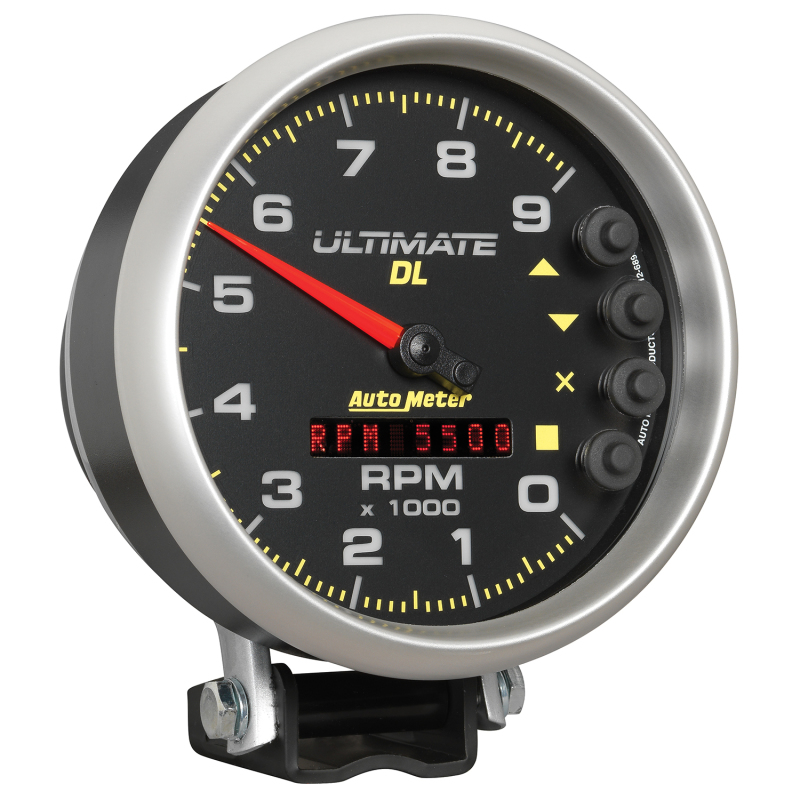

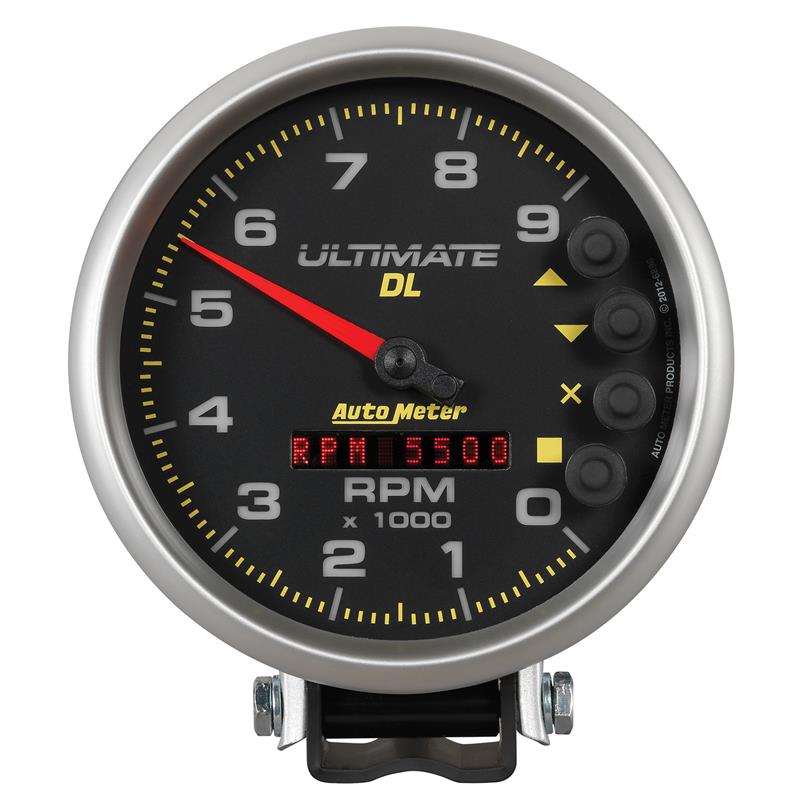

Autometer 5 inch Ultimate DL Playback Tachometer 9000 RPM - Black

1 / 12

Specifications

Brand: AutoMeter
Part #: 6896
UPC: 46074068966

Autometer 5 inch Ultimate DL Playback Tachometer 9000 RPM - Black

Name: Autometer 5 inch Ultimate DL Playback Tachometer 9000 RPM - Black
Brand: AutoMeter
Price: 942.21 USD
Availability: InStock

$942.21

AutoMeter 5" Ultimate DL Playback Tachometer 9000 RPM - Black. Records critical engine data for analysis and tuning.

Key Features

This product is the AutoMeter 5 inch Ultimate DL Playback Tachometer 9000 RPM in Black.
It records and plays back up to 4 runs (60 seconds each) of engine and driveshaft RPM data.
Additional recorded data includes lateral, longitudinal, and vertical G-forces.
It can also record air/fuel ratio and a user-selectable pressure channel (fuel, oil, or brake pressure).
The tachometer features a responsive competition-grade movement with a 0-11,000 RPM sweep time of 333 milliseconds.
It is compatible with 0.5 - 6 pulse ignition signals for 1-12 cylinder engines and various ignition types.

This tachometer is designed for a wide range of applications and is compatible with 0.5 - 6 pulse ignition signals (1-12 cylinder engines) with points, electronic, and most 12V high-performance racing ignitions. It is also 12 and 16 volt compatible.

⚠️ CA WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. Learn more

Secure CheckoutFast Shipping631-982-0042

Product Details

When you're looking to get the most out of your engine and fine-tune your performance, the AutoMeter 5-inch Ultimate DL Playback Tachometer is a serious tool. This isn't just a tachometer; it's a data acquisition system designed to help you understand exactly what's happening under the hood during a run. You get the tachometer itself, which features a responsive, competition-grade movement capable of sweeping from 0 to 11,000 RPM in just 333 milliseconds, ensuring it keeps up with even the fastest engines. It also includes the necessary hardware for recording and playback, along with the DataPro analysis software for your PC.

This Ultimate DL model expands on previous designs by adding more channels for critical performance data. It can record up to four 60-second runs, capturing engine and driveshaft RPM, lateral, longitudinal, and vertical G-forces, air/fuel ratio, and a user-selectable pressure channel (like fuel or oil pressure). This detailed information is invaluable for diagnosing issues, optimizing clutch and converter strategies, nailing shift points, and improving launch consistency. The tachometer itself offers superior visibility with its latest LED technology, and it's 30% lighter than previous models. Plus, it's compatible with a wide range of ignition systems and supports 12 and 16-volt electrical systems, making it well-suited for most street or race cars.

For even more advanced analysis, you can download the high-resolution (100 Hz) data to AutoMeter's easy-to-use DataPro software. This allows for comparative run overlays, letting you compare your current runs against your best to pinpoint exactly where improvements can be made. The system also includes standard 4-stage shift light control and an improved Automatic Recording Memory Start (ARMS) system for worry-free operation. This tachometer is designed to help you protect your engine and extract maximum performance.
