Specifications
- Brand
- Camburg
- Part #
- CAM-010018
- UPC
- 888563187754
Camburg 4130 SQ. Bolt-on Spindle Snout Block
$164.86
Order now to reserve yours — we'll ship as soon as stock arrives. Full refund if we're unable to fulfill.

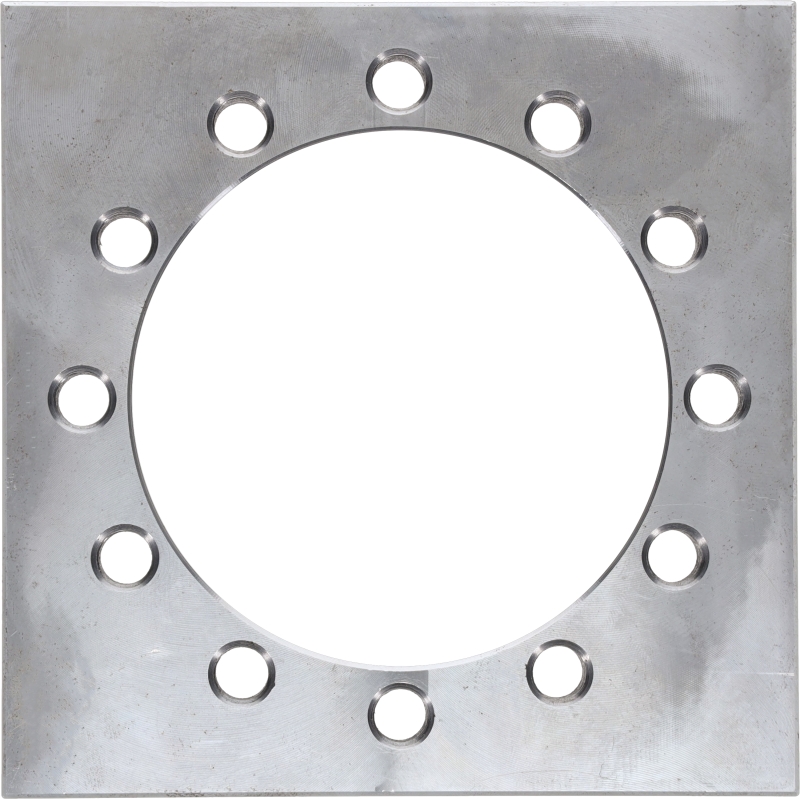

Camburg Spindle Snout Block. CNC machined from 4130 chromoly with a Dana 44 bolt pattern for custom spindle builds.
Key Features
- Fits Camburg 12 bolt spindle snouts and many others.
- CNC machined in-house from 4130 chromoly steel.
- Features a 1/2" thick, 5" x 5" block.
- Uses a doubled-up Dana 44 bolt pattern (12 on 4" with 3.375" ID bore).
- Bolt holes are tapped for 3/8-24 threads.
Product Details
If you're fabricating your own custom spindles or uprights and need a solid mounting point for a bolt-on hub spindle snout, this Camburg Spindle Snout Block is what you're looking for. It's CNC machined right in-house from aircraft-quality 4130 chromoly steel, which is a half-inch thick for serious strength. This block is designed with the industry-standard Dana 44 bolt pattern, which Camburg has doubled up for extra security, using 12 bolts on a 4-inch spacing with a 3.375-inch inner bore.
The bolt holes are tapped for 3/8-24 threads, and Camburg recommends using mil-spec 12-point bolts for attachment. These blocks are machined for a slight press fit, and you'll likely need some post-machining after welding or heat-treating to get everything perfect. This block is made to work with all Camburg 12-bolt spindle snouts and many others. Camburg machines all surfaces—sides, top, and bottom—to ensure everything is perfectly parallel, unlike cheaper laser or waterjet cut versions.
Specifications
- Brand
- Camburg
- Manufacturer Part #
- CAM-010018
- UPC
- 888563187754
