What material is this spindle snout block made from?

This spindle snout block is CNC machined from aircraft-quality 4130 chromoly steel. This material is chosen for its high strength-to-weight ratio, making it suitable for demanding fabrication projects.

What is the recommended way to attach the spindle snout?

The block uses a 12-bolt pattern with 3/8-24 bolt holes. Camburg recommends using mil-spec/NAS MS21250 series 12-point bolts for a secure attachment.

What final machining is required for the spindle bore?

The spindle bore is intentionally machined undersized. After welding and any heat treatment, it will need to be final machined to 3.375 inches to achieve a slight press fit for proper installation.

Camburg TT Spindle Snout Block 4130 TT

Name: Camburg 4130 TT Bolt-on Spindle Snout Block
Brand: Camburg
SKU: camburg-camburg-4130-tt-bolt-on-spindle-snout-block-t14-827079
Price: 353.28 USD
Availability: BackOrder

Camburg 4130 TT Bolt-on Spindle Snout Block

$353.28

On Backorder

Order now to reserve yours — we'll ship as soon as stock arrives. Full refund if we're unable to fulfill.

Spindle Snout Block for custom fabrication. CNC machined from 4130 chromoly with a Dana 44 bolt pattern for strong, reliable builds.

Key Features

Verified fitment for custom fabrication projects.
CNC machined in-house from aircraft quality 4130 chromoly steel.

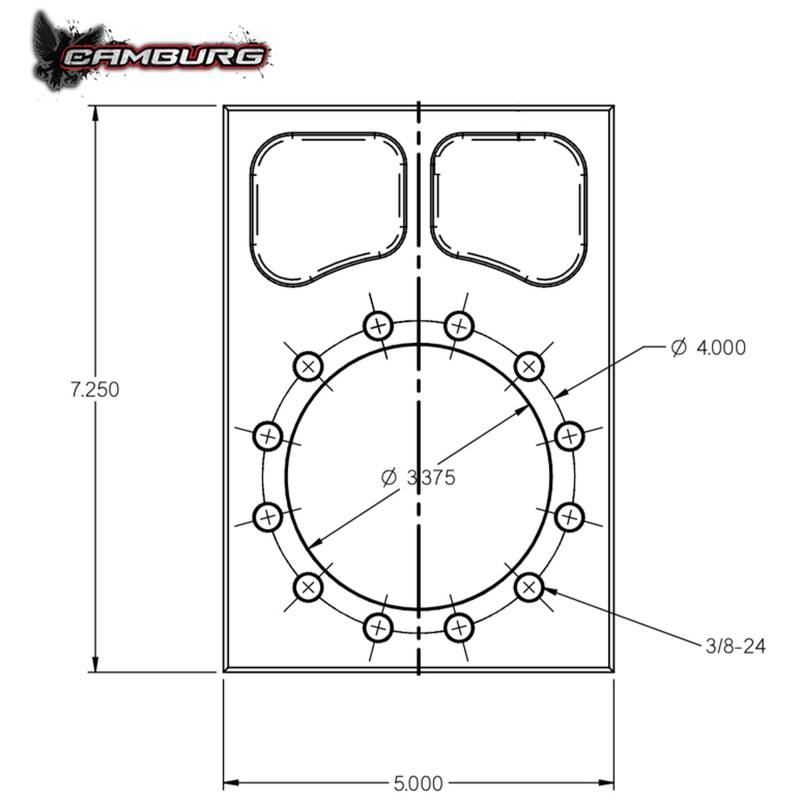

Measures 5" x 7.25" with a 5/8" thickness.
Features a doubled-up Dana 44 bolt pattern (12 on 4").
Bolt holes are 3/8-24, with a recommendation for mil-spec/NAS MS21250 series 12pt bolts.

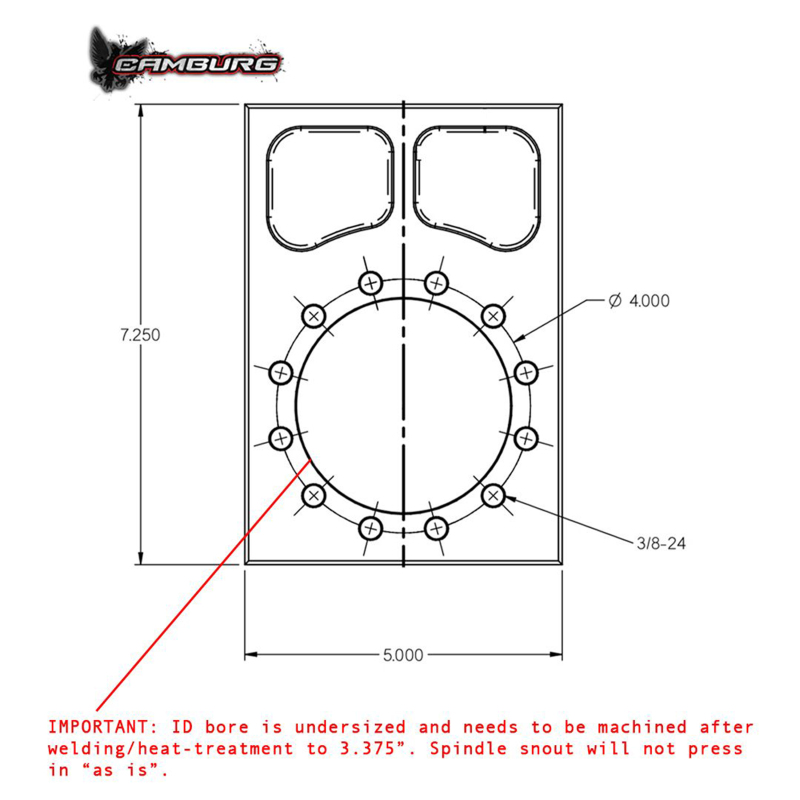

Spindle bore is machined undersized and requires final machining to 3.375" for a press fit.

Secure CheckoutFast Shipping631-982-0042

Product Details

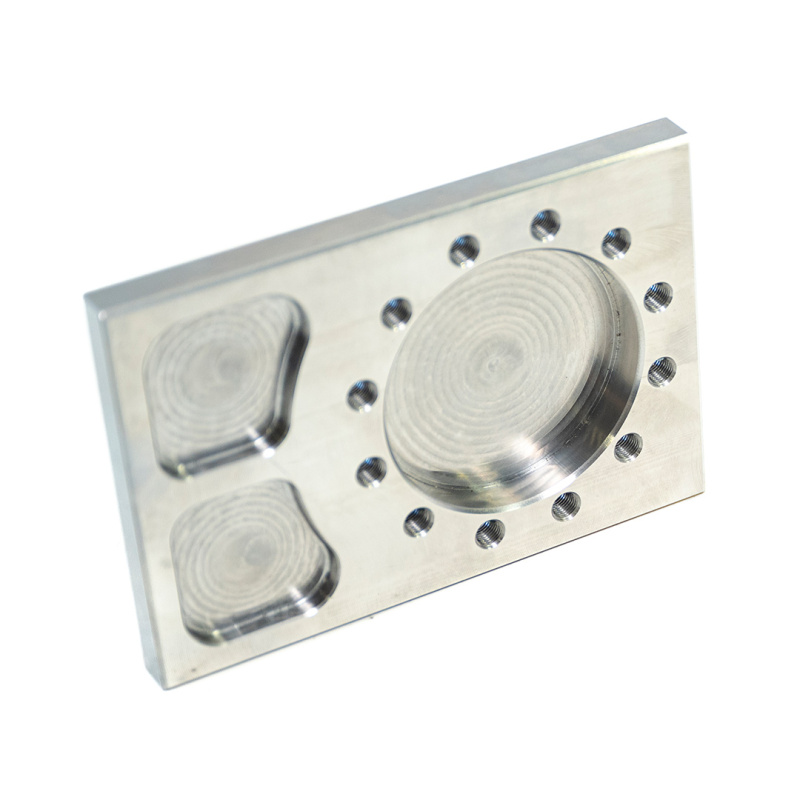

If you're fabricating your own custom spindles or uprights for a high-performance application, this TT spindle snout block from Camburg is a solid piece to start with. It's designed to be a bolt-on component, giving you a strong foundation for your custom build. This block is CNC machined in-house from aircraft-quality 4130 chromoly steel, which is known for its strength and durability in demanding environments.

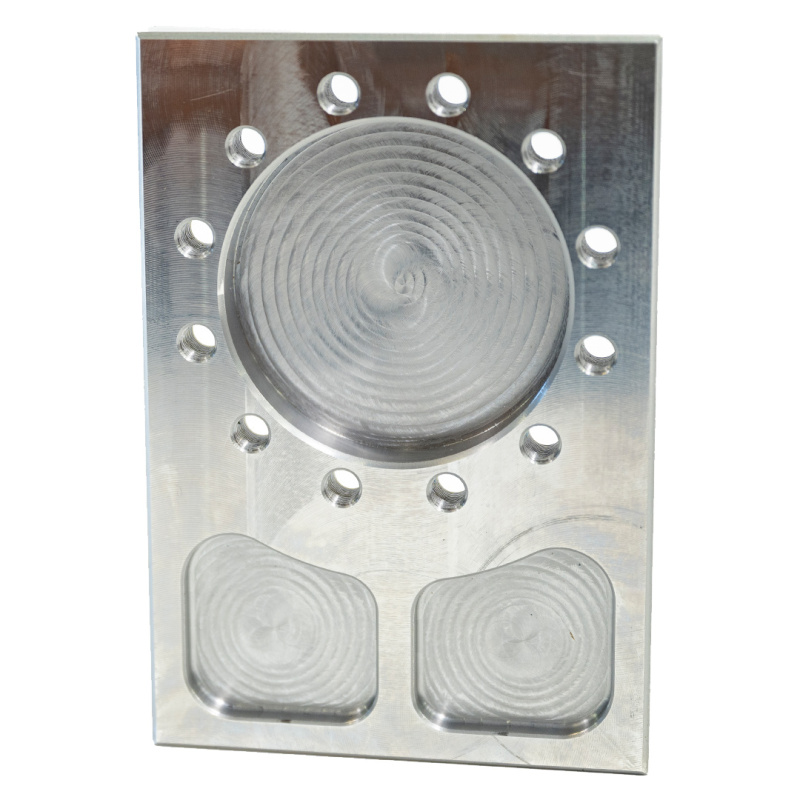

The block measures 5 inches by 7.25 inches and features a doubled-up Dana 44 bolt pattern (12 on 4 inches) with 3/8-24 bolt holes, making it compatible with industry-standard components. Camburg recommends using mil-spec/NAS MS21250 series 12-point bolts for attachment. To ensure a precise fit after welding and any necessary heat treatment, the spindle bore is machined undersized and will require final machining to 3.375 inches for a slight press fit. These blocks are thicker and taller than Camburg's standard square blocks, and they've been pocketed to reduce weight without sacrificing any strength. All surfaces are machined for parallelism, ensuring everything sits true.

Unlike cheaper alternatives that might be laser or waterjet cut, these blocks are fully CNC machined on all sides. Camburg uses these exact blocks on their own KINETIK race trucks, so you know they're built to handle tough conditions.
