What is required to install this frame gusset kit?

Welding is required to properly install this frame gusset kit. You may also need to do some minor sanding or grinding on the gussets to achieve an optimal fit due to slight frame variances.

Will this kit fit my Ranger if I have stock upper control arms?

Yes, this kit will fit Rangers with stock upper control arms. However, you will likely need to modify the gussets more significantly since the stock arms hug the frame closely.

What areas of the frame does this kit reinforce?

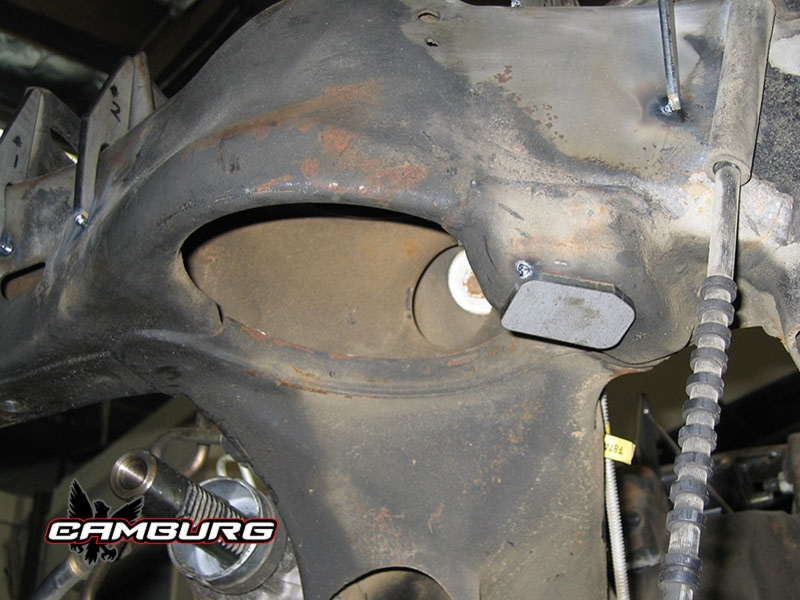

This kit primarily reinforces the upper control arm mounts, which are prone to tearing out under stress. It also includes a reinforcement plate for the lower bump stop area where the lower A-arm contacts the frame.

Camburg 98-12 Ford Ranger 2wd Frame Gusset Kit

1 / 4

Specifications

Brand: Camburg
Part #: CAM-130005
UPC: 888563186849

Camburg 98-12 Ford Ranger 2wd Frame Gusset Kit

Name: Camburg 98-12 Ford Ranger 2wd Frame Gusset Kit
Brand: Camburg
Price: 57.60 USD
Availability: InStock

$57.60

On Backorder

Order now to reserve yours — we'll ship as soon as stock arrives. Full refund if we're unable to fulfill.

Camburg 98-11 Ford Ranger 2wd Frame Gusset Kit. Strengthens upper arm mounts and lower bump stops for hardcore driving. Welding required.

Key Features

Fits 1998-2011 Ford Ranger 2WD coil spring suspension systems.
Strengthens upper control arm mounts to prevent tearing out under extreme conditions.
Includes reinforcement for the lower bump stop location, adding 200% more material.
Constructed from laser-cut 3/16" steel for maximum strength and durability.
Comes with 10 individual gussets for comprehensive reinforcement.
Welding is required for installation.

Secure CheckoutFast Shipping631-982-0042

Fits this vehicle

Ford Ranger 1998-2011

Product Details

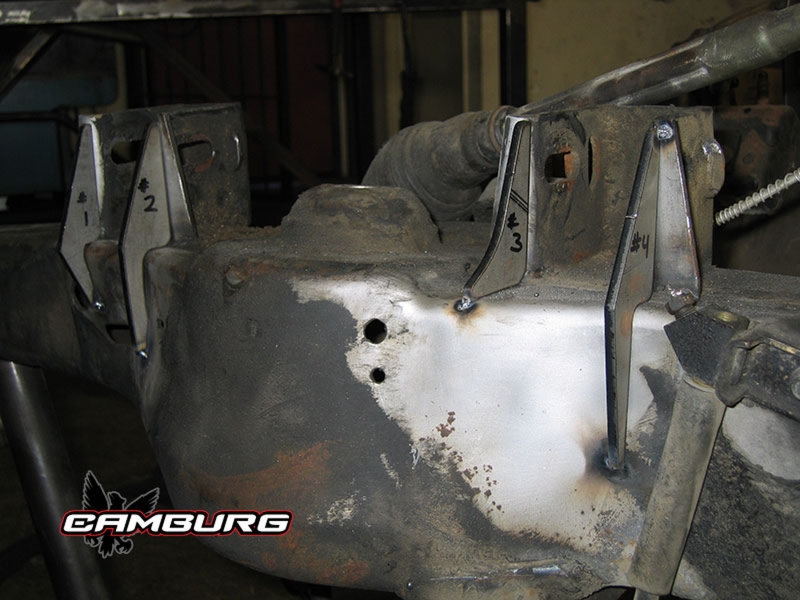

If you're pushing your 1998-2011 Ford Ranger 2WD hard off-road or in extreme conditions, the upper control arm mounts can become a weak point and even tear out. This Camburg frame gusset kit is designed to reinforce those areas, giving you more durability when it counts. It also includes a reinforcement plate for the lower bump stop location, adding significant material where the lower A-arm makes contact with the frame.

This kit is made from laser-cut 3/16" steel, providing a strong and well-built upgrade. It comes with 10 individual gussets to reinforce key areas of the frame. Keep in mind that welding is required for installation, and due to slight variations in frames over the years, some minor sanding or grinding might be needed for an optimal fit. If you're still running stock upper control arms, you'll likely need to modify the gussets a bit more because those arms sit closer to the frame.
