CSF High Performance Bar & Plate Intercooler Core - 20in L x 12in H x 4in W

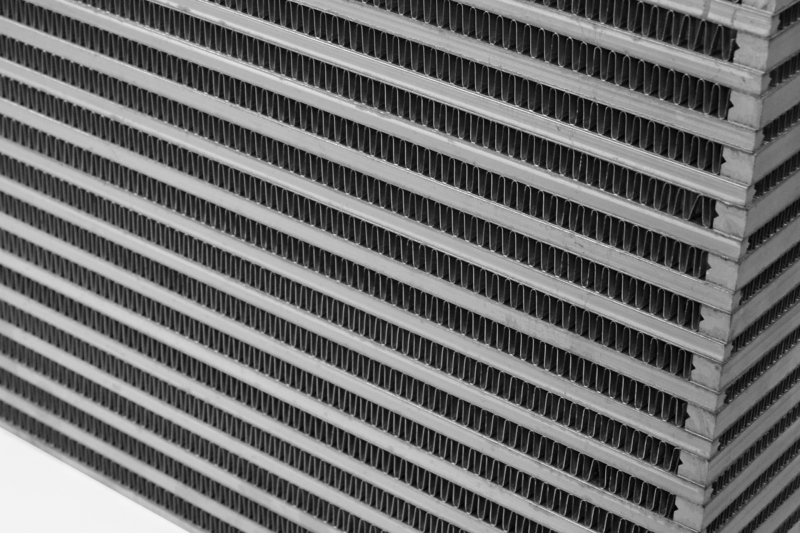

This CSF bar and plate intercooler core features a multi-louvered, high-precision staggered fin design on both the ambient and pressure sides. This design choice is key for maximizing heat transfer, which is crucial for keeping your engine's intake air cool under demanding conditions. It's built to handle up to 850 wheel horsepower, making it a solid option for custom builds aiming for significant power gains.

Each core is hand-built in a clean room environment using jigs and fixtures to ensure it's perfectly straight, which simplifies welding when integrating it into your custom intercooler piping. CSF also batch brazes these cores in their digital vacuum brazing ovens and individually pressure tests each unit at 120psi. This rigorous testing process helps ensure maximum reliability, even when you're running extreme boost levels.

With dimensions of 20 inches long, 12 inches high, and 4 inches wide, this core is designed for horizontal flow applications. It's a well-built component that many top tuning and performance companies trust for their high-performance intercooler builds.
