CSF High Performance Bar & Plate Intercooler Core - 25in L x 12in H x 3.5in W

If you're building a custom intercooler setup for a high-performance vehicle, this CSF bar and plate intercooler core is a solid option. It measures 25 inches long, 12 inches high, and 3.5 inches deep, and is designed for horizontal flow. This core is built to handle up to 1000 wheel horsepower, making it suitable for serious performance builds.

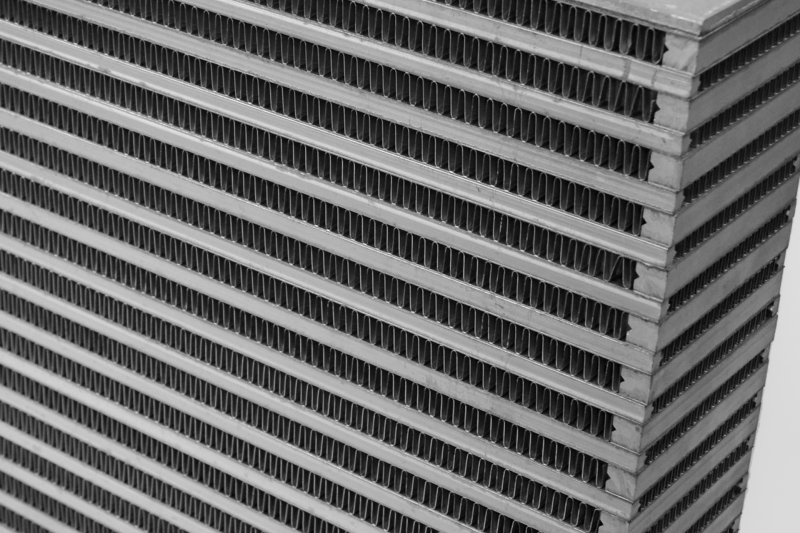

CSF builds these cores by hand in a clean room environment, using jigs and fixtures to ensure a straight core that's easy to weld. They use a multi-louvered, staggered fin design on both the ambient and pressure sides of the core to maximize heat transfer. Each core is batch brazed in a vacuum oven and then individually pressure tested at 120psi to ensure reliability under high boost conditions. This attention to detail means you get a well-built core ready for your custom fabrication project.

This intercooler core is designed for custom applications, so you'll need to fabricate the end tanks and piping to fit your specific vehicle. Remember that this part is not CARB approved and cannot be shipped to California.
